NSK HR30309J Tapered Roller Bearings
Also known as : HR30309J, 30309
- Inside Diameter: 45 mm
- Outside Diameter: 100 mm
- Width: 27.25 mm
- Basic dynamic load rating: 112 kN
- Basic static load rating: 127 kN
NSK HR30309J Bearing

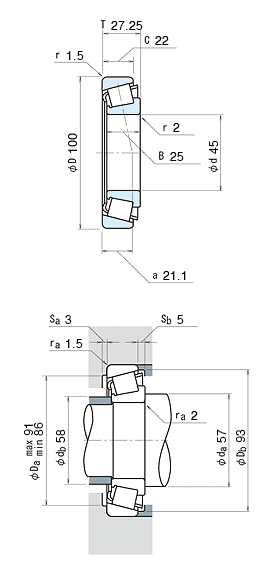

NSK HR30309J Bearing details
| model | HR30309J |
|---|---|
| d | 45 mm |
| D | 100 mm |
| T | 27.25 mm |
| B | 25 mm |
| C | 22 mm |
| Cone rmin. | 2 mm |
| Cup rmin. | 1.5 mm |
| Cr | 112000 N |
| C0r | 127000 N |
| Limiting speeds | 3800 min-1 (Grease) |
| Limiting speeds | 5300 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2FB |
| e | 0.35 (constant) |
| y1 | 1.7 (Axial Load Factors) |
| y0 | 0.95 (Axial Load Factors) |
| Mass | 1.01 kg (approx.) |
NSK HR30309J roller bearings, tapered roller bearing, Single-Row Metric Design.
