NSK HR32009XJ roller bearings | 45x75x20 mm
Also known as : 32009-X
- Inside Diameter: 45 mm
- Outside Diameter: 75 mm
- Width: 20 mm
- Basic dynamic load rating: 60 kN
- Basic static load rating: 83 kN
NSK HR32009XJ Bearing
NSK HR32009XJ Bearing details
| model | HR32009XJ |
|---|---|
| d | 45 mm |
| D | 75 mm |
| T | 20 mm |
| B | 20 mm |
| C | 15.5 mm |
| Cone rmin. | 1 mm |
| Cup rmin. | 1 mm |
| Cr |
60000 N 6150 kgf |
| C0r |
83000 N 8450 kgf |
| Limiting speeds |
4500 min-1 (Grease) |
| Limiting speeds |
6300 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3CC |
| e | 0.39 (constant) |
| y1 | 1.5 (Axial Load Factors) |
| y0 | 0.84 (Axial Load Factors) |
| Mass | 0.354 kg (approx.) |
NSK HR32009XJ roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR32009XJ bearing cross reference

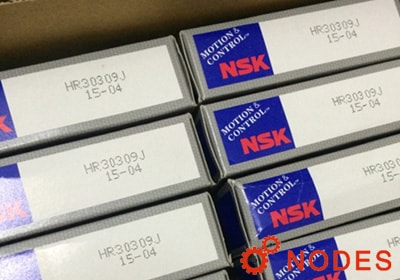

NSK HR30309J bearing
45mm x 100mm x 27.25mm

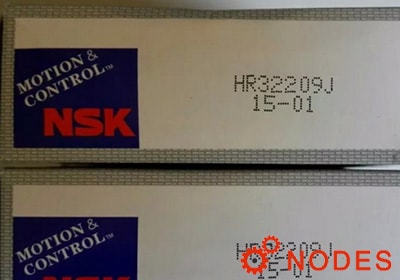

NSK HR32209J bearing
