NSK HR31319J Tapered roller bearings
Also known as : HR31319J, 31319
- Inside Diameter: 95 mm
- Outside Diameter: 200 mm
- Width: 49.5 mm
- Basic dynamic load rating: 310 kN
- Basic static load rating: 375 kN
NSK HR31319J Bearing

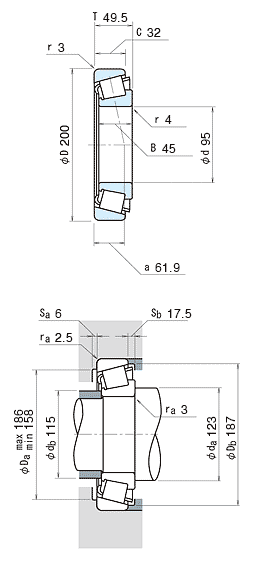

NSK HR31319J Bearing details
| model | HR31319J |
|---|---|
| d | 95 mm |
| D | 200 mm |
| T | 49.5 mm |
| B | 45 mm |
| C | 32 mm |
| Cone rmin. | 4 mm |
| Cup rmin. | 3 mm |
| Cr |
310000 N 31500 kgf |
| C0r |
375000 N 38500 kgf |
| Limiting speeds |
1700 min-1 (Grease) |
| Limiting speeds |
2400 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
7GB |
| e | 0.83 (constant) |
| y1 | 0.73 (Axial Load Factors) |
| y0 | 0.4 (Axial Load Factors) |
| Mass | 6.64 kg (approx.) |
NSK HR31319J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR31319J bearing cross reference
NSK HR30219J bearing
95mm x 170mm x 34.5mm
NSK HR32219J bearing
95mm x 170mm x 45.5mm
FAG 31319-A bearing
95mm x 200mm x 49.5mm
FAG 31319-A-DF-A170-210 bearing
95mm x 200mm x 99mm
SKF 31319 bearing
95mm x 200mm x 49.5mm
NSK HR32919J bearing
95mm x 130mm x 23mm
NSK HR32019XJ bearing
95mm x 145mm x 32mm
NSK HR33019J bearing
95mm x 145mm x 39mm
NSK T2ED095 bearing
95mm x 160mm x 46mm
NSK 30319CA bearing
95mm x 200mm x 49.5mm
NSK HR30319DJ bearing
95mm x 200mm x 49.5mm
