NSK HR32219J Tapered roller bearings
Also known as : HR32219J, 32219
- Inside Diameter: 95 mm
- Outside Diameter: 170 mm
- Width: 45.5 mm
- Basic dynamic load rating: 289 kN
- Basic static load rating: 400 kN
NSK HR32219J Bearing

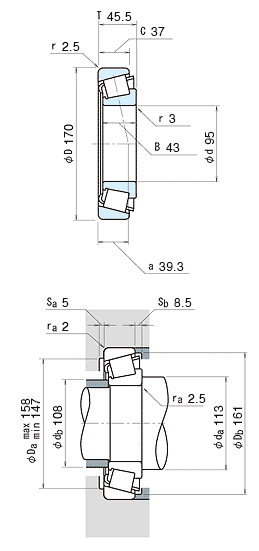

NSK HR32219J Bearing details
| model | HR32219J |
|---|---|
| d | 95 mm |
| D | 170 mm |
| T | 45.5 mm |
| B | 43 mm |
| C | 37 mm |
| Cone rmin. | 3 mm |
| Cup rmin. | 2.5 mm |
| Cr |
289000 N 29500 kgf |
| C0r |
400000 N 40500 kgf |
| Limiting speeds |
2200 min-1 (Grease) |
| Limiting speeds |
2800 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3FC |
| e | 0.42 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.79 (Axial Load Factors) |
| Mass | 4.22 kg (approx.) |
NSK HR32219J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR32219J bearing cross reference
NSK HR30219J bearing
95mm x 170mm x 34.5mm
NSK HR31319J bearing
95mm x 200mm x 49.5mm
FAG 32219-A bearing
95mm x 170mm x 45.5mm
FAG 32219-XL bearing
95mm x 170mm x 45.5mm
FAG 32219-A-N11CA bearing
95mm x 170mm x 91mm
NTN 32219U bearing
95mm x 170mm x 43.0mm
NSK HR32919J bearing
95mm x 130mm x 23mm
NSK HR32019XJ bearing
95mm x 145mm x 32mm
NSK HR33019J bearing
95mm x 145mm x 39mm
NSK T2ED095 bearing
95mm x 160mm x 46mm
NSK 30319CA bearing
95mm x 200mm x 49.5mm
