NSK HR32214J roller bearings | 70x125x33.25 mm
Also known as : 32214J2
- Inside Diameter: 70 mm
- Outside Diameter: 125 mm
- Width: 33.25 mm
- Basic dynamic load rating: 157 kN
- Basic static load rating: 205 kN
NSK HR32214J Bearing
NSK HR32214J Bearing details
| model | HR32214J |
|---|---|
| d | 70 mm |
| D | 125 mm |
| T | 33.25 mm |
| B | 31 mm |
| C | 27 mm |
| Cone rmin. | 2 mm |
| Cup rmin. | 1.5 mm |
| Cr |
157000 N 16100 kgf |
| C0r |
205000 N 20900 kgf |
| Limiting speeds |
2800 min-1 (Grease) |
| Limiting speeds |
4000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3EC |
| e | 0.42 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.79 (Axial Load Factors) |
| Mass | 1.66 kg (approx.) |
NSK HR32214J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR32214J bearing cross reference

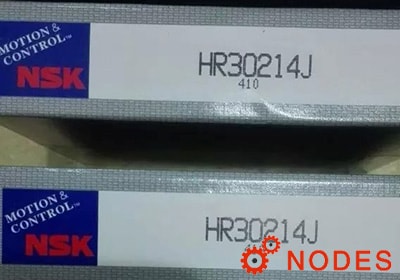

NSK HR30214J bearing
70mm x 125mm x 26.25mm

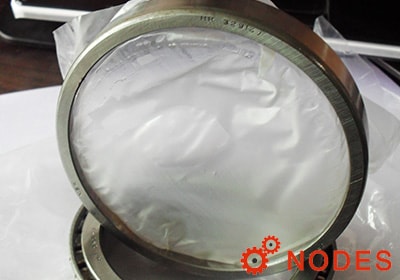

NSK HR32914J bearing
