NSK HR32914J Tapered roller bearings
Also known as : HR32914J, 32914
- Inside Diameter: 70 mm
- Outside Diameter: 100 mm
- Width: 20 mm
- Basic dynamic load rating: 70 kN
- Basic static load rating: 113 kN
NSK HR32914J Bearing

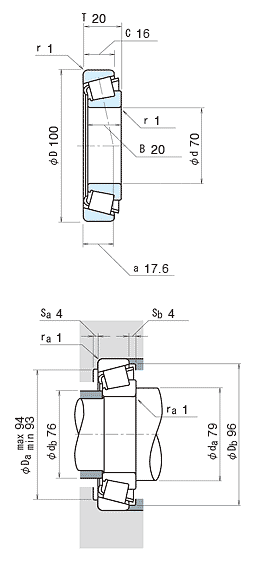

NSK HR32914J Bearing details
| model | HR32914J |
|---|---|
| d | 70 mm |
| D | 100 mm |
| T | 20 mm |
| B | 20 mm |
| C | 16 mm |
| Cone rmin. | 1 mm |
| Cup rmin. | 1 mm |
| Cr |
70000 N 7150 kgf |
| C0r |
113000 N 11500 kgf |
| Limiting speeds |
3200 min-1 (Grease) |
| Limiting speeds |
4500 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2BC |
| e | 0.32 (constant) |
| y1 | 1.9 (Axial Load Factors) |
| y0 | 1.1 (Axial Load Factors) |
| Mass | 0.494 kg (approx.) |
NSK HR32914J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR32914J bearing cross reference
NSK HR30214J bearing
70mm x 125mm x 26.25mm
FAG 32914 bearing
70mm x 100mm x 20mm
FAG 32914-XL bearing
70mm x 100mm x 20mm
NTN 32914XU bearing
70mm x 100mm x 20.0mm
NSK HR32014XJ bearing
70mm x 110mm x 25mm
NSK HR33014J bearing
70mm x 110mm x 31mm
NSK HR33114J bearing
70mm x 120mm x 37mm
NSK HR32214J bearing
70mm x 125mm x 33.25mm
NSK HR33214J bearing
70mm x 125mm x 41mm
NSK T7FC070 bearing
70mm x 140mm x 39mm
NSK HR30314DJ bearing
70mm x 150mm x 38mm
