NSK HR32221J Tapered roller bearings
Also known as : HR32221J, 32221
- Inside Diameter: 105 mm
- Outside Diameter: 190 mm
- Width: 53 mm
- Basic dynamic load rating: 360 kN
- Basic static load rating: 510 kN
NSK HR32221J Bearing

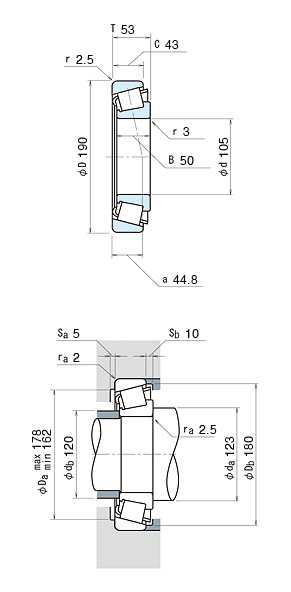

NSK HR32221J Bearing details
| model | HR32221J |
|---|---|
| d | 105 mm |
| D | 190 mm |
| T | 53 mm |
| B | 50 mm |
| C | 43 mm |
| Cone rmin. | 3 mm |
| Cup rmin. | 2.5 mm |
| Cr |
360000 N 37000 kgf |
| C0r |
510000 N 52000 kgf |
| Limiting speeds |
1900 min-1 (Grease) |
| Limiting speeds |
2600 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3FC |
| e | 0.42 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.79 (Axial Load Factors) |
| Mass | 6.25 kg (approx.) |
NSK HR32221J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR32221J bearing cross reference
NSK HR32221J bearing
105mm x 190mm x 53mm
FAG 32221-XL bearing
105mm x 190mm x 53mm
FAG 32221-XL-DF-A230-280 bearing
105mm x 190mm x 106mm
SKF 32221 bearing
105mm x 190mm x 53mm
NTN 32221U bearing
105mm x 190mm x 50.0mm
NSK HR32921J bearing
105mm x 145mm x 25mm
NSK HR32021XJ bearing
105mm x 160mm x 35mm
NSK HR33021J bearing
105mm x 160mm x 43mm
NSK HR30221J bearing
105mm x 190mm x 39mm
NSK HR30321J bearing
105mm x 225mm x 53.5mm
NSK HR31321J bearing
105mm x 225mm x 58mm
