NSK HR32318J Tapered roller bearings
Also known as : HR32318J, 32318
- Inside Diameter: 90 mm
- Outside Diameter: 190 mm
- Width: 67.5 mm
- Basic dynamic load rating: 450 kN
- Basic static load rating: 590 kN
NSK HR32318J Bearing

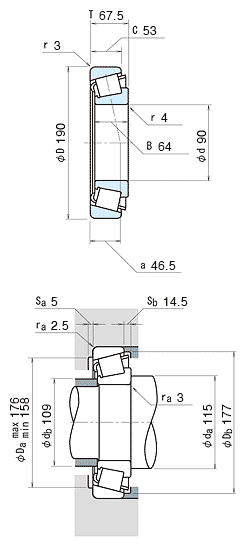

NSK HR32318J Bearing details
| model | HR32318J |
|---|---|
| d | 90 mm |
| D | 190 mm |
| T | 67.5 mm |
| B | 64 mm |
| C | 53 mm |
| Cone rmin. | 4 mm |
| Cup rmin. | 3 mm |
| Cr |
450000 N 46000 kgf |
| C0r |
590000 N 60500 kgf |
| Limiting speeds |
2000 min-1 (Grease) |
| Limiting speeds |
2600 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2GD |
| e | 0.35 (constant) |
| y1 | 1.7 (Axial Load Factors) |
| y0 | 0.96 (Axial Load Factors) |
| Mass | 8.6 kg (approx.) |
NSK HR32318J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR32318J bearing cross reference
NSK HR30318J bearing
90mm x 190mm x 46.5mm
NSK HR32218J bearing
90mm x 160mm x 42.5mm
FAG 32318-A bearing
90mm x 190mm x 67.5mm
FAG 32318-B bearing
90mm x 190mm x 67.5mm
FAG 32318-XL bearing
90mm x 190mm x 67.5mm
SKF 32318 bearing
90mm x 190mm x 67.5mm
NTN 32318U bearing
90mm x 190mm x 64.0mm
NSK HR32918J bearing
90mm x 125mm x 23mm
NSK HR32018XJ bearing
90mm x 140mm x 32mm
NSK HR33018J bearing
90mm x 140mm x 39mm
NSK HR33118J bearing
90mm x 150mm x 45mm
