NSK HR30218J roller bearings | 90x160x32.5 mm
Also known as : 30218
- Inside Diameter: 90 mm
- Outside Diameter: 160 mm
- Width: 32.5 mm
- Basic dynamic load rating: 201 kN
- Basic static load rating: 256 kN
NSK HR30218J Bearing
NSK HR30218J Bearing details
| model | HR30218J |
|---|---|
| d | 90 mm |
| D | 160 mm |
| T | 32.5 mm |
| B | 30 mm |
| C | 26 mm |
| Cone rmin. | 2.5 mm |
| Cup rmin. | 2 mm |
| Cr |
201000 N 20500 kgf |
| C0r |
256000 N 26100 kgf |
| Limiting speeds |
2200 min-1 (Grease) |
| Limiting speeds |
3000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3FB |
| e | 0.42 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.79 (Axial Load Factors) |
| Mass | 2.6 kg (approx.) |
NSK HR30218J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR30218J bearing cross reference

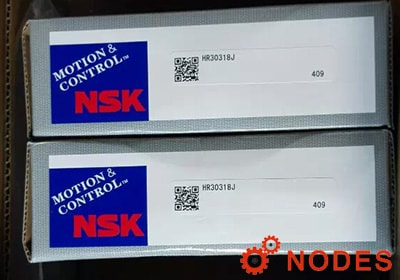

NSK HR30318J bearing
90mm x 190mm x 46.5mm

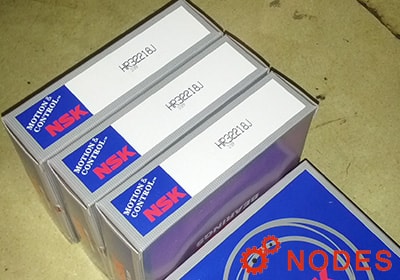

NSK HR32218J bearing
90mm x 160mm x 42.5mm

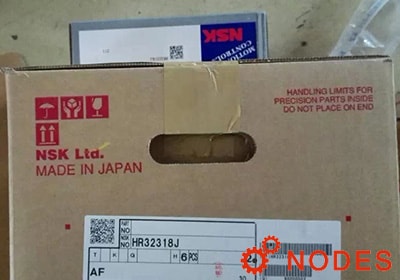

NSK HR32318J bearing
90mm x 190mm x 67.5mm
FAG 30218-A bearing
90mm x 160mm x 32.5mm
FAG 30218-XL bearing
90mm x 160mm x 32.5mm
FAG 30218-A-N11CA bearing
90mm x 160mm x 65mm
NTN 30218U bearing
90mm x 160mm x 30.0mm
NSK HR32918J bearing
90mm x 125mm x 23mm
NSK HR32018XJ bearing
90mm x 140mm x 32mm
NSK HR33018J bearing
90mm x 140mm x 39mm
NSK HR33118J bearing
90mm x 150mm x 45mm
