NSK NUP209EM & roller bearings
Also known as : NUP209EM &, NUP209ET
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 19 mm
- Basic dynamic load rating: 72.5 kN
- Basic static load rating: 66.5 kN
NSK NUP209EM & Bearing
NSK NUP209EM & Bearing details
| model | NUP209EM & |
|---|---|
| d | 45 mm |
| D | 85 mm |
| B | 19 mm |
| rmin. | 1.1 mm |
| r1 min. | 1.1 mm |
| Fw | 54.5 mm |
| Cr | 72.5 kN, Basic dynamic Load Ratings |
| C0r | 66.5 kN, Basic static Load Ratings |
|
Limiting speeds Thermal Reference |
8500 min-1 |
|
Limiting speeds Mechanical |
10000 min-1 |
|
Limiting speeds Grease |
6700 min-1 |
|
Limiting speeds Oil |
8000 min-1 |
| Mass | 0.513 kg (approx.) |
NSK NUP209EM & roller bearings, NUP type, cylindrical roller bearings, single-Row.
NSK NUP209EM & bearing cross reference
NSK NU1009 bearing
45mm x 75mm x 16mm
NSK NU209EW bearing
45mm x 85mm x 19mm
NSK NU2209 bearing
45mm x 85mm x 23mm
NSK NU2209ET bearing
45mm x 85mm x 23mm
NSK NU309EW bearing
45mm x 100mm x 25mm
NSK NU2309 bearing
45mm x 100mm x 36mm
NSK NU2309ET bearing
45mm x 100mm x 36mm
NSK NU409 bearing
45mm x 120mm x 29mm
NSK NU1009M bearing
45mm x 75mm x 16mm
SKF NUP209ECJ bearing
45mm x 85mm x 19mm

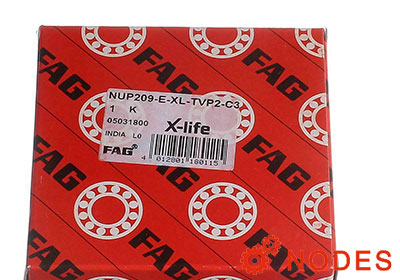

FAG NUP209-E-XL-TVP2 bearing
45mm x 85mm x 19mm
