NTN 6205LLU bearings | 25x52x15mm
Also known as : 6205-2RS1, 6205-2RSR, 6205DDU
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 15 mm
- Basic dynamic load rating: 14 kN
- Basic static load rating: 7.85 kN
NTN 6205LLU Bearing
NTN 6205LLU Bearing details
| Part Number | 6205LLU |
|---|---|
| Brand | NTN |
| Mass | 0.128 kg |

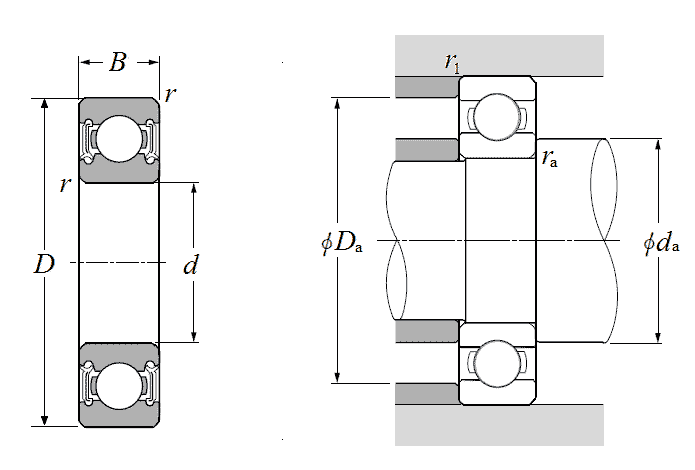

| Boundary dimensions (mm) | |
| Inner dia. (d) | 25 |
| Outer dia. (D) | 52 |
| Width (B) | 15 |
| Chamfer (rs_min) | 1 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 14 |
| Static (Cor) | 7.85 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 1430 |
| Static (Cor) | 800 |
| Limiting speed (min-1) | |
| Grease | 8900 |
| Abutment and fillet dimensions (mm) | |
| da min | 30 |
| da max | 32 |
| Da max | 47 |
| ras max | 1 |
Nodes have NTN 6205LLU bearings in stock.Deep groove ball bearings are the most widely used bearings.
NTN 6205LLU bearing cross reference
SKF 6205-2RS1 bearing
25mm x 52mm x 15mm
SKF 6205-2Z bearing
25mm x 52mm x 15mm
NSK 6205DDU bearing
25mm x 52mm x 15mm
NSK 6205ZZ bearing
25mm x 52mm x 15mm
NSK 6205ZZC3 bearing
25mm x 52mm x 15mm
FAG 6205-C-2ZC3 bearing
25mm x 52mm x 15mm
SKF 6205-2Z/C3 bearing
25mm x 52mm x 15mm
SKF 6205-2RSH bearing
25mm x 52mm x 15mm
SKF 6205-2RSH/C3 bearing
25mm x 52mm x 15mm
NSK 6205 bearing
25mm x 52mm x 15mm
NSK 6205VV bearing
25mm x 52mm x 15mm
