NSK 6205DDU deep groove ball bearing with two contact sealed
Also known as : 6205DDU, 6205LLU, 6205-2RS1, 6205-2RSR
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 15 mm
- Basic dynamic load rating: 14 kN
- Basic static load rating: 7.85 kN
NSK 6205DDU Bearing

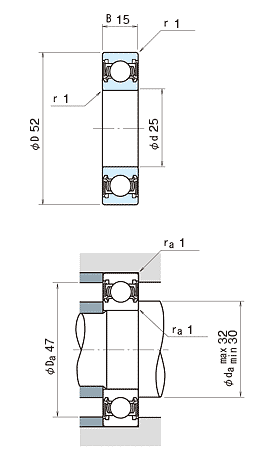

NSK 6205DDU Bearing details
| model | 6205DDU |
|---|---|
| d | 25 mm |
| D | 52 mm |
| B | 15 mm |
| rmin. | 1 mm |
| Cr | 14000 N |
| C0r | 7850 N |
| Limiting speeds | 9000 min-1 (Grease) |
| Mass | 0.129 kg (approx.) |
DDU: With Two Contact Sealed
NSK 6205DDU bearing cross reference
SKF 6205-2RS1 bearing
25mm x 52mm x 15mm
SKF 6205-2Z bearing
25mm x 52mm x 15mm
NSK 6205ZZ bearing
25mm x 52mm x 15mm
NSK 6205ZZC3 bearing
25mm x 52mm x 15mm
FAG 6205-C-2ZC3 bearing
25mm x 52mm x 15mm
NSK 6305ZZ bearing
25mm x 62mm x 17mm
NSK 6805ZZ bearing
25mm x 37mm x 7mm

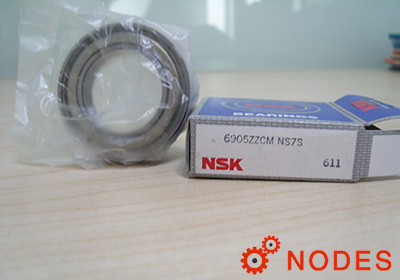

NSK 6905ZZ bearing
25mm x 42mm x 9mm
SKF 6205-2Z/C3 bearing
25mm x 52mm x 15mm
SKF 6205-2RSH bearing
25mm x 52mm x 15mm
SKF 6205-2RSH/C3 bearing
25mm x 52mm x 15mm
