NTN 6206ZZ bearings | 30x62x16mm
Also known as : 6206ZZ
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 16 mm
- Basic dynamic load rating: 19.5 kN
- Basic static load rating: 11.3 kN
NTN 6206ZZ Bearing
NTN 6206ZZ Bearing details
| Part Number | 6206ZZ |
|---|---|
| Brand | NTN |
| Mass | 0.199 kg |

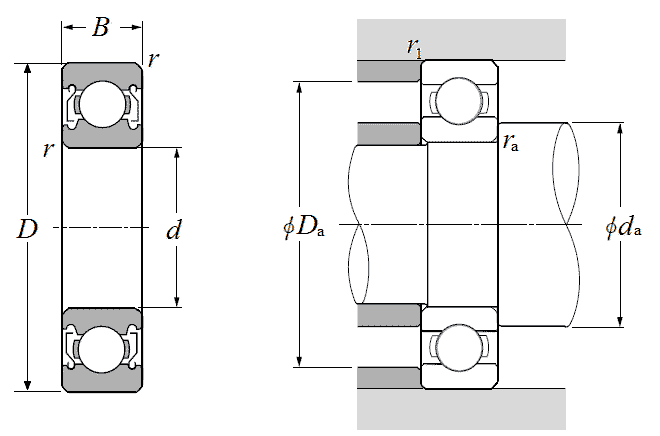

| Boundary dimensions (mm) | |
| Inner dia. (d) | 30 |
| Outer dia. (D) | 62 |
| Width (B) | 16 |
| Chamfer (rs_min) | 1 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 19.5 |
| Static (Cor) | 11.3 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 1980 |
| Static (Cor) | 1150 |
| Limiting speed (min-1) | |
| Grease | 11000 |
| Oil | 13000 |
| Abutment and fillet dimensions (mm) | |
| da min | 35 |
| da max | 39 |
| Da max | 57 |
| ras max | 1 |
Nodes have NTN 6206ZZ bearings in stock.Deep groove ball bearings are the most widely used bearings.
NTN 6206ZZ bearing cross reference
SKF 6206-2RS1 bearing
30mm x 62mm x 16mm
SKF 6206-2Z bearing
30mm x 62mm x 16mm
NSK 6206DDU bearing
30mm x 62mm x 16mm
NSK 6206DDUC3 bearing
30mm x 62mm x 16mm
NSK 6206ZZNR bearing
30mm x 62mm x 16mm
SKF 6206-2RS1 bearing
30mm x 62mm x 16mm
SKF 6206-2RS1/C3 bearing
30mm x 62mm x 16mm
NSK 6206 bearing
30mm x 62mm x 16mm
NSK 6206ZZ bearing
30mm x 62mm x 16mm
NSK 6206VV bearing
30mm x 62mm x 16mm
FAG 6206 bearing
30mm x 62mm x 16mm
