NTN 6906 bearings | 30x47x9mm
Also known as : 61906
- Inside Diameter: 30 mm
- Outside Diameter: 47 mm
- Width: 9 mm
- Basic dynamic load rating: 7.25 kN
- Basic static load rating: 5 kN
NTN 6906 Bearing
NTN 6906 Bearing details
| Part Number | 6906 |
|---|---|
| Brand | NTN |
| Mass | 0.048 kg |

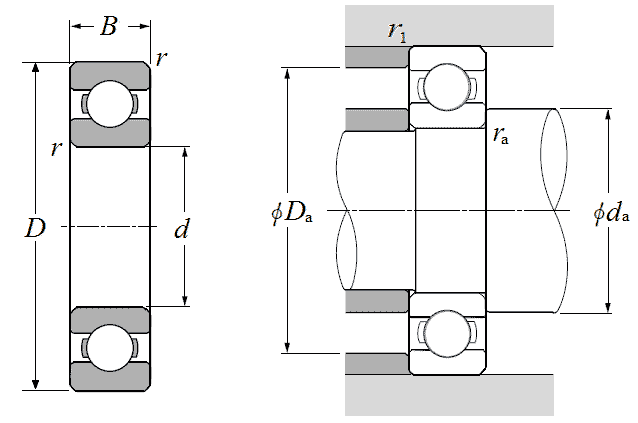

| Boundary dimensions (mm) | |
| Inner dia. (d) | 30 |
| Outer dia. (D) | 47 |
| Width (B) | 9 |
| Chamfer (rs_min) | 0.3 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 7.25 |
| Static (Cor) | 5 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 740 |
| Static (Cor) | 510 |
| Limiting speed (min-1) | |
| Grease | 14000 |
| Oil | 17000 |
| Abutment and fillet dimensions (mm) | |
| da min | 32 |
| da max | 34 |
| Da max | 45 |
| ras max | 0.3 |
Nodes have NTN 6906 bearings in stock.Deep groove ball bearings are the most widely used bearings.
