NTN AC-6206ZZ bearings | 30x62x16mm
Also known as : AC-6206ZZ
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 16 mm
- Basic dynamic load rating: 19.5 kN
- Basic static load rating: 11.3 kN
NTN AC-6206ZZ Bearing
NTN AC-6206ZZ Bearing details
| Part Number | AC-6206ZZ |
|---|---|
| Brand | NTN |
| Mass | 0.191 kg |

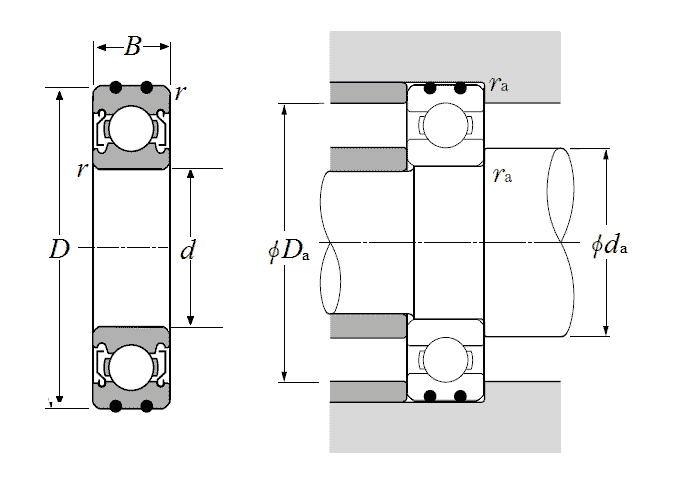

| Boundary dimensions (mm) | |
| Inner dia. (d) | 30 |
| Outer dia. (D) | 62 |
| Width (B) | 16 |
| Chamfer (rs_min) | 1 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 19.5 |
| Static (Cor) | 11.3 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 1980 |
| Static (Cor) | 1150 |
| Limiting speed (min-1) | |
| Grease | 11000 |
| Abutment and fillet dimensions (mm) | |
| da min | 35 |
| da max | 39 |
| Da max | 57 |
| ras max | 1 |
Nodes have NTN AC-6206ZZ bearings in stock. AC bearings, have the same boundary dimensions as standard bearings with the addition of two O-rings imbedded on the outside surface of the outer ring.
