NTN 5204SCLLD double row angular contact ball bearings
Also known as : 3204-2RS
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 20.6 mm
- Basic dynamic load rating: 15.9 kN
- Basic static load rating: 10.7 kN
NTN 5204SCLLD Bearing

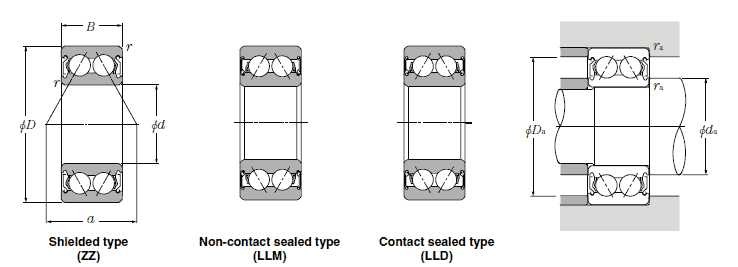

NTN 5204SCLLD Bearing details
| Part Number | 5204SCLLD |
|---|---|
| Brand | NTN |
| Catagory | Double Row Angular Contact Ball Bearings |
| d | 20 mm |
| D | 47 mm |
| B | 20.6 mm |
| rs min | 1 mm |
| Cr | 15.9 kN, Basic load ratings, dynamic |
| C0r | 10.7 kN, Basic load ratings, static |
| Limiting speeds | 9000 min-1, grease |
| Load center | 23 mm |
| Mass | 0.15 kg |
NTN 5204SCLLD double row angular contact ball bearings, with contact seals on both sides, is designed by arranging two single row angular contact bearings back-to-back in duplex to form one united bearing with a contact angle of 25°.
NTN 5204SCLLD bearing cross reference
SKF 3204 ATN9 bearing
20mm x 47mm x 20.6mm
FAG 3204-BD-XL bearing
20mm x 47mm x 20.6mm
FAG 3204-BD-XL-TVH bearing
20mm x 47mm x 20.6mm
NTN 7004 bearing
20mm x 42mm x 12mm
NTN 7204 bearing
20mm x 47mm x 14mm

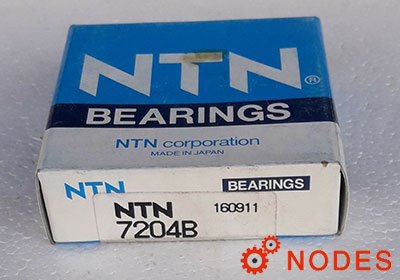

NTN 7204B bearing
