SKF 3204 ATN9 ball bearings
Also known as : 3204 ATN9, 5204
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 20.6 mm
- Basic dynamic load rating: 20 kN
- Basic static load rating: 12 kN
SKF 3204 ATN9 Bearing
SKF 3204 ATN9 Bearing details
| model | 3204 ATN9 |
|---|---|
| d | 20 mm |
| D | 47 mm |
| B | 20.6 mm |
| d2 | 27.7 mm |
| D2 | 40.9 mm |
| a | 28 mm |
| r1,2 min. | 1 mm |
| da min | 25.6 mm |
| Da max | 41.4 mm |
| ra max | 1 mm |
| C | 20 kN, Basic dynamic load rating |
| C0 | 12 kN, Basic static load rating |
| Pu | 0.51 kN, Fatigue load limit |
| Reference speed | 14000 r/min |
| Limiting speed | 14000 r/min |
| kr | 0.06, Calculation factor |
| e | 0.8, Calculation factor |
| X | 0.63, Calculation factor |
| Y0 | 0.66, Calculation factor |
| Y1 | 0.78, Calculation factor |
| Y2 | 1.24, Calculation factor |
| Mass | 0.16 kg |
SKF 3204 ATN9 ball bearings, Angular contact ball bearings, double row.
SKF 3204 ATN9 bearing cross reference

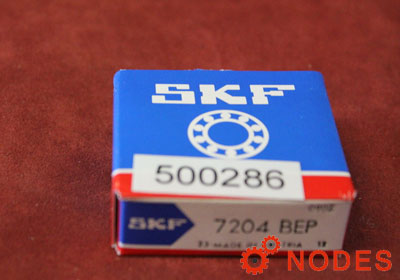

SKF 7204 BEP bearing
20mm x 47mm x 14mm

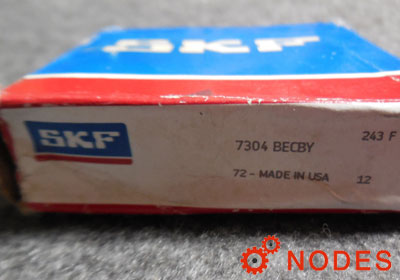

SKF 7304 BECBY bearing
20mm x 52mm x 15mm

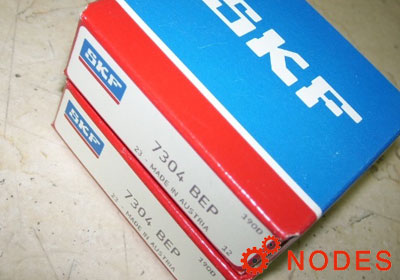

SKF 7304 BEP bearing
20mm x 52mm x 15mm

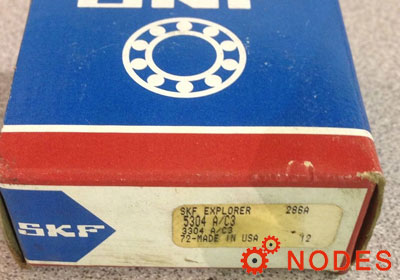

SKF 3304 A bearing
20mm x 52mm x 22.2mm

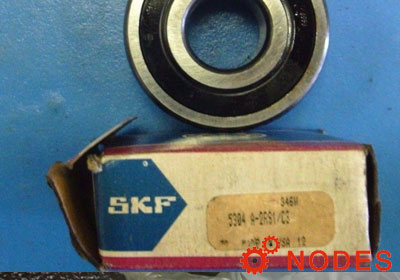

SKF 3304 A-2RS1 bearing
20mm x 52mm x 22.2mm
FAG 3204-BD-XL bearing
20mm x 47mm x 20.6mm
FAG 3204-BD-XL-TVH bearing
20mm x 47mm x 20.6mm
NTN 5204SCLLD bearing
20 x 47 x 20.6 mm
