Rod ends consist of an eye-shaped head with integral shank that forms a housing for a spherical plain bearing.
Nodes supplies rod ends with left or right-hand female or male threads.
Brand: SKF, INA, IKO
IKO PHSB10 rod ends | d:15.875,D:38.1,L:82.55mm
IKO PHSB10 rod ends, Inch series PILLOBALL rod ends Insert type/With Female Thread, Dimensions: d:15.875mm, D:38.1mm, L:82.55mm.
- Brand: IKO
- Inside Diameter: 15.875 mm
- Outside Diameter: 38.1 mm
- Width: 82.55 mm
- Basic dynamic load rating: 20 kN
- Basic static load rating: 20 kN
IKO PHS12EC rod ends | d:12,d2:30,l4:65mm
IKO PHS12EC rod ends, Maintenance-free type PILLOBALL rod ends With Female Thread, Dimensions: d:12mm, d2:30mm, l4:65mm.
- Brand: IKO
- Inside Diameter: 12 mm
- Outside Diameter: 30 mm
- Width: 65 mm
- Basic dynamic load rating: 26.2 kN
- Basic static load rating: 26.2 kN

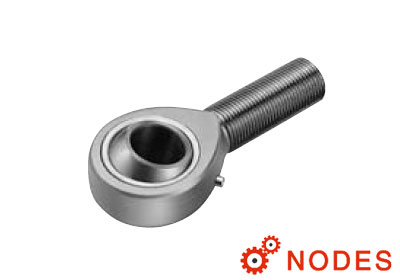

IKO POS4 rod ends | d:4,d2:14,l2:37mm
IKO POS4 rod ends, Lubrication type PILLOBALL rod ends Insert type/With Male Thread, Dimensions: d:4mm, d2:14mm, l2:37mm.
- Brand: IKO
- Inside Diameter: 4 mm
- Outside Diameter: 14 mm
- Width: 37 mm
- Basic dynamic load rating: 2.48 kN
- Basic static load rating: 2.48 kN
IKO POS18 rod ends | d:18,d2:42,l2:93mm
IKO POS18 rod ends, Lubrication type PILLOBALL rod ends Insert type/With Male Thread, Dimensions: d:18mm, d2:42mm, l2:93mm.
- Brand: IKO
- Inside Diameter: 18 mm
- Outside Diameter: 42 mm
- Width: 93 mm
- Basic dynamic load rating: 25.7 kN
- Basic static load rating: 25.7 kN
IKO POS20 rod ends | d:20,d2:46,l2:101mm
IKO POS20 rod ends, Lubrication type PILLOBALL rod ends Insert type/With Male Thread, Dimensions: d:20mm, d2:46mm, l2:101mm.
- Brand: IKO
- Inside Diameter: 20 mm
- Outside Diameter: 46 mm
- Width: 101 mm
- Basic dynamic load rating: 30.8 kN
- Basic static load rating: 30.8 kN
IKO POS22 rod ends | d:22,d2:50,l2:109mm
IKO POS22 rod ends, Lubrication type PILLOBALL rod ends Insert type/With Male Thread, Dimensions: d:22mm, d2:50mm, l2:109mm.
- Brand: IKO
- Inside Diameter: 22 mm
- Outside Diameter: 50 mm
- Width: 109 mm
- Basic dynamic load rating: 37.4 kN
- Basic static load rating: 37.4 kN
IKO POS28 rod ends | d:28,d2:66,l2:136mm
IKO POS28 rod ends, Lubrication type PILLOBALL rod ends Insert type/With Male Thread, Dimensions: d:28mm, d2:66mm, l2:136mm.
- Brand: IKO
- Inside Diameter: 28 mm
- Outside Diameter: 66 mm
- Width: 136 mm
- Basic dynamic load rating: 58.4 kN
- Basic static load rating: 58.4 kN

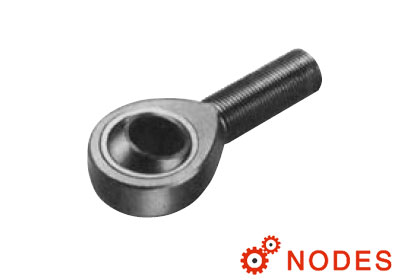

IKO POSB2 rod ends | d:3.175,D:11.91,L:29.77mm
IKO POSB2 rod ends, Inch series PILLOBALL rod ends Insert type/With Male Thread, Dimensions: d:3.175mm, D:11.91mm, L:29.77mm.
- Brand: IKO
- Inside Diameter: 3.175 mm
- Outside Diameter: 11.91 mm
- Width: 29.77 mm
- Basic dynamic load rating: 1.85 kN
- Basic static load rating: 1.85 kN
IKO POSB5 rod ends | d:7.938,D:22.23,L:58.72mm
IKO POSB5 rod ends, Inch series PILLOBALL rod ends Insert type/With Male Thread, Dimensions: d:7.938mm, D:22.23mm, L:58.72mm.
- Brand: IKO
- Inside Diameter: 7.938 mm
- Outside Diameter: 22.23 mm
- Width: 58.72 mm
- Basic dynamic load rating: 6.8 kN
- Basic static load rating: 6.8 kN
IKO POSB6 rod ends | d:9.525,D:25.4,L:61.93mm
IKO POSB6 rod ends, Inch series PILLOBALL rod ends Insert type/With Male Thread, Dimensions: d:9.525mm, D:25.4mm, L:61.93mm.
- Brand: IKO
- Inside Diameter: 9.525 mm
- Outside Diameter: 25.4 mm
- Width: 61.93 mm
- Basic dynamic load rating: 9.23 kN
- Basic static load rating: 9.23 kN
IKO POSB10 rod ends | d:15.875,D:38.1,L:85.73mm
IKO POSB10 rod ends, Inch series PILLOBALL rod ends Insert type/With Male Thread, Dimensions: d:15.875mm, D:38.1mm, L:85.73mm.
- Brand: IKO
- Inside Diameter: 15.875 mm
- Outside Diameter: 38.1 mm
- Width: 85.73 mm
- Basic dynamic load rating: 20 kN
- Basic static load rating: 20 kN
IKO POSB16 rod ends | d:25.4,D:69.85,L:139.7mm
IKO POSB16 rod ends, Inch series PILLOBALL rod ends Insert type/With Male Thread, Dimensions: d:25.4mm, D:69.85mm, L:139.7mm.
- Brand: IKO
- Inside Diameter: 25.4 mm
- Outside Diameter: 69.85 mm
- Width: 139.7 mm
- Basic dynamic load rating: 59.3 kN
- Basic static load rating: 59.3 kN
IKO POS3EC rod ends | d:3,d2:12,l2:33mm
IKO POS3EC rod ends, Maintenance-free type PILLOBALL rod ends With Male Thread, Dimensions: d:3mm, d2:12mm, l2:33mm.
- Brand: IKO
- Inside Diameter: 3 mm
- Outside Diameter: 12 mm
- Width: 33 mm
- Basic dynamic load rating: 3.5 kN
- Basic static load rating: 3.5 kN
IKO POS4EC rod ends | d:4,d2:14,l2:37mm
IKO POS4EC rod ends, Maintenance-free type PILLOBALL rod ends With Male Thread, Dimensions: d:4mm, d2:14mm, l2:37mm.
- Brand: IKO
- Inside Diameter: 4 mm
- Outside Diameter: 14 mm
- Width: 37 mm
- Basic dynamic load rating: 4.95 kN
- Basic static load rating: 4.95 kN
IKO POS5EC rod ends | d:5,d2:16,l2:41mm
IKO POS5EC rod ends, Maintenance-free type PILLOBALL rod ends With Male Thread, Dimensions: d:5mm, d2:16mm, l2:41mm.
- Brand: IKO
- Inside Diameter: 5 mm
- Outside Diameter: 16 mm
- Width: 41 mm
- Basic dynamic load rating: 6.54 kN
- Basic static load rating: 6.54 kN
IKO POS6EC rod ends | d:6,d2:18,l2:45mm
IKO POS6EC rod ends, Maintenance-free type PILLOBALL rod ends With Male Thread, Dimensions: d:6mm, d2:18mm, l2:45mm.
- Brand: IKO
- Inside Diameter: 6 mm
- Outside Diameter: 18 mm
- Width: 45 mm
- Basic dynamic load rating: 8.41 kN
- Basic static load rating: 8.41 kN
IKO POS8EC rod ends | d:8,d2:22,l2:53mm
IKO POS8EC rod ends, Maintenance-free type PILLOBALL rod ends With Male Thread, Dimensions: d:8mm, d2:22mm, l2:53mm.
- Brand: IKO
- Inside Diameter: 8 mm
- Outside Diameter: 22 mm
- Width: 53 mm
- Basic dynamic load rating: 14 kN
- Basic static load rating: 14 kN
IKO POS10EC rod ends | d:10,d2:26,l2:61mm
IKO POS10EC rod ends, Maintenance-free type PILLOBALL rod ends With Male Thread, Dimensions: d:10mm, d2:26mm, l2:61mm.
- Brand: IKO
- Inside Diameter: 10 mm
- Outside Diameter: 26 mm
- Width: 61 mm
- Basic dynamic load rating: 19.6 kN
- Basic static load rating: 19.6 kN
IKO POS12EC rod ends | d:12,d2:30,l2:69mm
IKO POS12EC rod ends, Maintenance-free type PILLOBALL rod ends With Male Thread, Dimensions: d:12mm, d2:30mm, l2:69mm.
- Brand: IKO
- Inside Diameter: 12 mm
- Outside Diameter: 30 mm
- Width: 69 mm
- Basic dynamic load rating: 26.2 kN
- Basic static load rating: 26.2 kN
IKO POS14EC rod ends | d:14,d2:34,l2:77mm
IKO POS14EC rod ends, Maintenance-free type PILLOBALL rod ends With Male Thread, Dimensions: d:14mm, d2:34mm, l2:77mm.
- Brand: IKO
- Inside Diameter: 14 mm
- Outside Diameter: 34 mm
- Width: 77 mm
- Basic dynamic load rating: 33.6 kN
- Basic static load rating: 33.6 kN
IKO POS16EC rod ends | d:16,d2:38,l2:85mm
IKO POS16EC rod ends, Maintenance-free type PILLOBALL rod ends With Male Thread, Dimensions: d:16mm, d2:38mm, l2:85mm.
- Brand: IKO
- Inside Diameter: 16 mm
- Outside Diameter: 38 mm
- Width: 85 mm
- Basic dynamic load rating: 42 kN
- Basic static load rating: 42 kN
INA GIL6-DO Rod ends | d:6,d2:21,l4:40.5mm
Nodes bearings have INA GIL6-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread, GIL6-DO bearings dimensions: d:6,d2:21,l4:40.5mm, Cr: 3400N, C0r: 10300N.
- Brand: INA
- Inside Diameter: 6 mm
- Outside Diameter: 21 mm
- Width: 40.5 mm
- Basic dynamic load rating: 3.4 kN
- Basic static load rating: 3.4 kN
INA GIL12-DO Rod ends | d:12,d2:34,l4:67mm
Nodes bearings have INA GIL12-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread, GIL12-DO bearings dimensions: d:12,d2:34,l4:67mm, Cr: 10800N, C0r: 30400N.
- Brand: INA
- Inside Diameter: 12 mm
- Outside Diameter: 34 mm
- Width: 67 mm
- Basic dynamic load rating: 10.8 kN
- Basic static load rating: 10.8 kN
INA GIL15-DO Rod ends | d:15,d2:40,l4:81mm
Nodes bearings have INA GIL15-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread, GIL15-DO bearings dimensions: d:15,d2:40,l4:81mm, Cr: 16900N, C0r: 44800N.
- Brand: INA
- Inside Diameter: 15 mm
- Outside Diameter: 40 mm
- Width: 81 mm
- Basic dynamic load rating: 16.9 kN
- Basic static load rating: 16.9 kN
INA GIL20-DO Rod ends | d:20,d2:53,l4:103.5mm
Nodes bearings have INA GIL20-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread, GIL20-DO bearings dimensions: d:20,d2:53,l4:103.5mm, Cr: 29600N, C0r: 75600N.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 53 mm
- Width: 103.5 mm
- Basic dynamic load rating: 29.6 kN
- Basic static load rating: 29.6 kN
INA GIL30-DO Rod ends | d:30,d2:73,l4:146.5mm
Nodes bearings have INA GIL30-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread, GIL30-DO bearings dimensions: d:30,d2:73,l4:146.5mm, Cr: 62300N, C0r: 119000N.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 73 mm
- Width: 146.5 mm
- Basic dynamic load rating: 62.3 kN
- Basic static load rating: 62.3 kN
INA GIR6-DO Rod ends | d:6,d2:21,l4:40.5mm
Nodes bearings have INA GIR6-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread, GIR6-DO bearings dimensions: d:6,d2:21,l4:40.5mm, Cr: 3400N, C0r: 10300N.
- Brand: INA
- Inside Diameter: 6 mm
- Outside Diameter: 21 mm
- Width: 40.5 mm
- Basic dynamic load rating: 3.4 kN
- Basic static load rating: 3.4 kN
INA GIR8-DO Rod ends | d:8,d2:24,l4:48mm
Nodes bearings have INA GIR8-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread, GIR8-DO bearings dimensions: d:8,d2:24,l4:48mm, Cr: 5590N, C0r: 16000N.
- Brand: INA
- Inside Diameter: 8 mm
- Outside Diameter: 24 mm
- Width: 48 mm
- Basic dynamic load rating: 5.59 kN
- Basic static load rating: 5.59 kN
INA GIR10-DO Rod ends | d:10,d2:29,l4:57.5mm
Nodes bearings have INA GIR10-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread, GIR10-DO bearings dimensions: d:10,d2:29,l4:57.5mm, Cr: 8160N, C0r: 22000N.
- Brand: INA
- Inside Diameter: 10 mm
- Outside Diameter: 29 mm
- Width: 57.5 mm
- Basic dynamic load rating: 8.16 kN
- Basic static load rating: 8.16 kN
INA GIR12-DO Rod ends | d:12,d2:34,l4:67mm
Nodes bearings have INA GIR12-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread, GIR12-DO bearings dimensions: d:12,d2:34,l4:67mm, Cr: 10800N, C0r: 30400N.
- Brand: INA
- Inside Diameter: 12 mm
- Outside Diameter: 34 mm
- Width: 67 mm
- Basic dynamic load rating: 10.8 kN
- Basic static load rating: 10.8 kN
INA GIR17-DO Rod ends | d:17,d2:46,l4:90mm
Nodes bearings have INA GIR17-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread, GIR17-DO bearings dimensions: d:17,d2:46,l4:90mm, Cr: 21300N, C0r: 56500N.
- Brand: INA
- Inside Diameter: 17 mm
- Outside Diameter: 46 mm
- Width: 90 mm
- Basic dynamic load rating: 21.3 kN
- Basic static load rating: 21.3 kN
INA GIR25-DO Rod ends | d:25,d2:64,l4:126mm
Nodes bearings have INA GIR25-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread, GIR25-DO bearings dimensions: d:25,d2:64,l4:126mm, Cr: 48300N, C0r: 88300N.
- Brand: INA
- Inside Diameter: 25 mm
- Outside Diameter: 64 mm
- Width: 126 mm
- Basic dynamic load rating: 48.3 kN
- Basic static load rating: 48.3 kN
INA GIL6-UK Rod ends | d:6,d2:21,l4:40.5mm
Nodes bearings have INA GIL6-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, left hand thread, GIL6-UK bearings dimensions: d:6,d2:21,l4:40.5mm, Cr: 3600N, C0r: 10300N.
- Brand: INA
- Inside Diameter: 6 mm
- Outside Diameter: 21 mm
- Width: 40.5 mm
- Basic dynamic load rating: 3.6 kN
- Basic static load rating: 3.6 kN
INA GIL12-UK Rod ends | d:12,d2:34,l4:67mm
Nodes bearings have INA GIL12-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, left hand thread, GIL12-UK bearings dimensions: d:12,d2:34,l4:67mm, Cr: 11300N, C0r: 30400N.
- Brand: INA
- Inside Diameter: 12 mm
- Outside Diameter: 34 mm
- Width: 67 mm
- Basic dynamic load rating: 11.3 kN
- Basic static load rating: 11.3 kN
INA GIL15-UK Rod ends | d:15,d2:40,l4:81mm
Nodes bearings have INA GIL15-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, left hand thread, GIL15-UK bearings dimensions: d:15,d2:40,l4:81mm, Cr: 17800N, C0r: 44800N.
- Brand: INA
- Inside Diameter: 15 mm
- Outside Diameter: 40 mm
- Width: 81 mm
- Basic dynamic load rating: 17.8 kN
- Basic static load rating: 17.8 kN
INA GIL20-UK Rod ends | d:20,d2:53,l4:103.5mm
Nodes bearings have INA GIL20-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, left hand thread, GIL20-UK bearings dimensions: d:20,d2:53,l4:103.5mm, Cr: 31300N, C0r: 75600N.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 53 mm
- Width: 103.5 mm
- Basic dynamic load rating: 31.3 kN
- Basic static load rating: 31.3 kN
INA GIL25-UK Rod ends | d:25,d2:64,l4:126mm
Nodes bearings have INA GIL25-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, left hand thread, GIL25-UK bearings dimensions: d:25,d2:64,l4:126mm, Cr: 51100N, C0r: 105000N.
- Brand: INA
- Inside Diameter: 25 mm
- Outside Diameter: 64 mm
- Width: 126 mm
- Basic dynamic load rating: 51.1 kN
- Basic static load rating: 51.1 kN
INA GIL30-UK Rod ends | d:30,d2:73,l4:146.5mm
Nodes bearings have INA GIL30-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, left hand thread, GIL30-UK bearings dimensions: d:30,d2:73,l4:146.5mm, Cr: 65900N, C0r: 139000N.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 73 mm
- Width: 146.5 mm
- Basic dynamic load rating: 65.9 kN
- Basic static load rating: 65.9 kN
