Rod ends consist of an eye-shaped head with integral shank that forms a housing for a spherical plain bearing.
Nodes supplies rod ends with left or right-hand female or male threads.
Brand: SKF, INA, IKO
SKF SIL17C rod ends | d:17mm, d2:47mm, l4:92mm
Nodes have SKF SIL17C bearings in stock, Rod ends with a female thread, Dimensions: d:17mm, d2:47mm, l4:92mm, Basic dynamic load rating: 22.4KN, static load rating: 46.5KN, Mass: 0.25 kg.
- Brand: SKF
- Inside Diameter: 17 mm
- Outside Diameter: 47 mm
- Width: 92 mm
- Basic dynamic load rating: 22.4 kN
- Basic static load rating: 22.4 kN

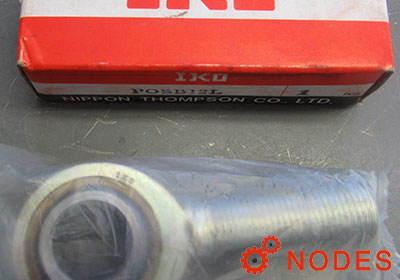

IKO POSB12 rod ends | d:19.05,D:44.45,L:95.25mm
IKO POSB12 rod ends, Inch series PILLOBALL rod ends Insert type/With Male Thread, Dimensions: d:19.05mm, D:44.45mm, L:95.25mm.
- Brand: IKO
- Inside Diameter: 19.05 mm
- Outside Diameter: 44.45 mm
- Width: 95.25 mm
- Basic dynamic load rating: 28.5 kN
- Basic static load rating: 28.5 kN

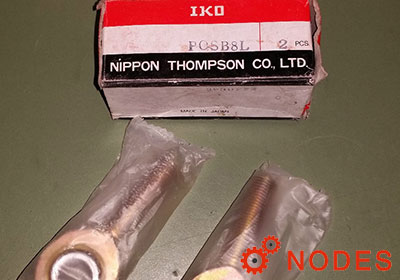

IKO POSB8 rod ends | d:12.7,D:33.32,L:78.59mm
IKO POSB8 rod ends, Inch series PILLOBALL rod ends Insert type/With Male Thread, Dimensions: d:12.7mm, D:33.32mm, L:78.59mm.
- Brand: IKO
- Inside Diameter: 12.7 mm
- Outside Diameter: 33.32 mm
- Width: 78.59 mm
- Basic dynamic load rating: 14.8 kN
- Basic static load rating: 14.8 kN
SKF SI60TXE-2LS rod ends | d:60mm, d2:137mm, l4:296mm
Nodes have SKF SI60TXE-2LS bearings in stock, Rod ends with a female thread, Dimensions: d:60mm, d2:137mm, l4:296mm, Basic dynamic load rating: 695KN, static load rating: 400KN, Mass: 7.1 kg.
- Brand: SKF
- Inside Diameter: 60 mm
- Outside Diameter: 137 mm
- Width: 296 mm
- Basic dynamic load rating: 695 kN
- Basic static load rating: 695 kN
SKF SA8E rod ends | d:8mm, d2:25mm, l2:56mm
Nodes have SKF SA8E bearings in stock, Rod ends with a male thread, Dimensions: d:8mm, d2:25mm, l2:56mm, Basic dynamic load rating: 5.5KN, static load rating: 12.9KN, Mass: 0.029 kg.
- Brand: SKF
- Inside Diameter: 8 mm
- Outside Diameter: 25 mm
- Width: 56 mm
- Basic dynamic load rating: 5.5 kN
- Basic static load rating: 5.5 kN
SKF SAL8E rod ends | d:8mm, d2:25mm, l2:56mm
Nodes have SKF SAL8E bearings in stock, Rod ends with a male thread, Dimensions: d:8mm, d2:25mm, l2:56mm, Basic dynamic load rating: 5.5KN, static load rating: 12.9KN, Mass: 0.029 kg.
- Brand: SKF
- Inside Diameter: 8 mm
- Outside Diameter: 25 mm
- Width: 56 mm
- Basic dynamic load rating: 5.5 kN
- Basic static load rating: 5.5 kN
SKF SA25ES rod ends | d:25mm, d2:65mm, l2:128mm
Nodes have SKF SA25ES bearings in stock, Rod ends with a male thread, Dimensions: d:25mm, d2:65mm, l2:128mm, Basic dynamic load rating: 48KN, static load rating: 78KN, Mass: 0.53 kg.
- Brand: SKF
- Inside Diameter: 25 mm
- Outside Diameter: 65 mm
- Width: 128 mm
- Basic dynamic load rating: 48 kN
- Basic static load rating: 48 kN
SKF SA45ES-2RS rod ends | d:45mm, d2:104mm, l2:219mm
Nodes have SKF SA45ES-2RS bearings in stock, Rod ends with a male thread, Dimensions: d:45mm, d2:104mm, l2:219mm, Basic dynamic load rating: 127KN, static load rating: 200KN, Mass: 2.55 kg.
- Brand: SKF
- Inside Diameter: 45 mm
- Outside Diameter: 104 mm
- Width: 219 mm
- Basic dynamic load rating: 127 kN
- Basic static load rating: 127 kN
SKF SAL35ES-2RS rod ends | d:35mm, d2:84mm, l2:174mm
Nodes have SKF SAL35ES-2RS bearings in stock, Rod ends with a male thread, Dimensions: d:35mm, d2:84mm, l2:174mm, Basic dynamic load rating: 80KN, static load rating: 110KN, Mass: 1.3 kg.
- Brand: SKF
- Inside Diameter: 35 mm
- Outside Diameter: 84 mm
- Width: 174 mm
- Basic dynamic load rating: 80 kN
- Basic static load rating: 80 kN
SKF SA8C rod ends | d:8mm, d2:25mm, l2:56mm
Nodes have SKF SA8C bearings in stock, Rod ends with a male thread, Dimensions: d:8mm, d2:25mm, l2:56mm, Basic dynamic load rating: 5.85KN, static load rating: 12.9KN, Mass: 0.03 kg.
- Brand: SKF
- Inside Diameter: 8 mm
- Outside Diameter: 25 mm
- Width: 56 mm
- Basic dynamic load rating: 5.85 kN
- Basic static load rating: 5.85 kN
INA GIL10-DO Rod ends | d:10,d2:29,l4:57.5mm
Nodes bearings have INA GIL10-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread, GIL10-DO bearings dimensions: d:10,d2:29,l4:57.5mm, Cr: 8160N, C0r: 22000N.
- Brand: INA
- Inside Diameter: 10 mm
- Outside Diameter: 29 mm
- Width: 57.5 mm
- Basic dynamic load rating: 8.16 kN
- Basic static load rating: 8.16 kN
INA GIL8-DO Rod ends | d:8,d2:24,l4:48mm
Nodes bearings have INA GIL8-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread, GIL8-DO bearings dimensions: d:8,d2:24,l4:48mm, Cr: 5590N, C0r: 16000N.
- Brand: INA
- Inside Diameter: 8 mm
- Outside Diameter: 24 mm
- Width: 48 mm
- Basic dynamic load rating: 5.59 kN
- Basic static load rating: 5.59 kN
INA GIL17-DO Rod ends | d:17,d2:46,l4:90mm
Nodes bearings have INA GIL17-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread, GIL17-DO bearings dimensions: d:17,d2:46,l4:90mm, Cr: 21300N, C0r: 56500N.
- Brand: INA
- Inside Diameter: 17 mm
- Outside Diameter: 46 mm
- Width: 90 mm
- Basic dynamic load rating: 21.3 kN
- Basic static load rating: 21.3 kN
INA GIL25-DO Rod ends | d:25,d2:64,l4:126mm
Nodes bearings have INA GIL25-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread, GIL25-DO bearings dimensions: d:25,d2:64,l4:126mm, Cr: 48300N, C0r: 88300N.
- Brand: INA
- Inside Diameter: 25 mm
- Outside Diameter: 64 mm
- Width: 126 mm
- Basic dynamic load rating: 48.3 kN
- Basic static load rating: 48.3 kN
INA GIR15-DO Rod ends | d:15,d2:40,l4:81mm
Nodes bearings have INA GIR15-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread, GIR15-DO bearings dimensions: d:15,d2:40,l4:81mm, Cr: 16900N, C0r: 44800N.
- Brand: INA
- Inside Diameter: 15 mm
- Outside Diameter: 40 mm
- Width: 81 mm
- Basic dynamic load rating: 16.9 kN
- Basic static load rating: 16.9 kN
INA GIR20-DO Rod ends | d:20,d2:53,l4:103.5mm
Nodes bearings have INA GIR20-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread, GIR20-DO bearings dimensions: d:20,d2:53,l4:103.5mm, Cr: 29600N, C0r: 75600N.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 53 mm
- Width: 103.5 mm
- Basic dynamic load rating: 29.6 kN
- Basic static load rating: 29.6 kN
INA GIR30-DO Rod ends | d:30,d2:73,l4:146.5mm
Nodes bearings have INA GIR30-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread, GIR30-DO bearings dimensions: d:30,d2:73,l4:146.5mm, Cr: 62300N, C0r: 119000N.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 73 mm
- Width: 146.5 mm
- Basic dynamic load rating: 62.3 kN
- Basic static load rating: 62.3 kN
INA GIL8-UK Rod ends | d:8,d2:24,l4:48mm
Nodes bearings have INA GIL8-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, left hand thread, GIL8-UK bearings dimensions: d:8,d2:24,l4:48mm, Cr: 5850N, C0r: 16000N.
- Brand: INA
- Inside Diameter: 8 mm
- Outside Diameter: 24 mm
- Width: 48 mm
- Basic dynamic load rating: 5.85 kN
- Basic static load rating: 5.85 kN
INA GIL10-UK Rod ends | d:10,d2:29,l4:57.5mm
Nodes bearings have INA GIL10-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, left hand thread, GIL10-UK bearings dimensions: d:10,d2:29,l4:57.5mm, Cr: 8640N, C0r: 22000N.
- Brand: INA
- Inside Diameter: 10 mm
- Outside Diameter: 29 mm
- Width: 57.5 mm
- Basic dynamic load rating: 8.64 kN
- Basic static load rating: 8.64 kN
INA GIL17-UK Rod ends | d:17,d2:46,l4:90mm
Nodes bearings have INA GIL17-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, left hand thread, GIL17-UK bearings dimensions: d:17,d2:46,l4:90mm, Cr: 22500N, C0r: 56500N.
- Brand: INA
- Inside Diameter: 17 mm
- Outside Diameter: 46 mm
- Width: 90 mm
- Basic dynamic load rating: 22.5 kN
- Basic static load rating: 22.5 kN
INA GIR8-UK Rod ends | d:8,d2:24,l4:48mm
Nodes bearings have INA GIR8-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, right hand thread, GIR8-UK bearings dimensions: d:8,d2:24,l4:48mm, Cr: 5850N, C0r: 16000N.
- Brand: INA
- Inside Diameter: 8 mm
- Outside Diameter: 24 mm
- Width: 48 mm
- Basic dynamic load rating: 5.85 kN
- Basic static load rating: 5.85 kN
INA GIR15-UK Rod ends | d:15,d2:40,l4:81mm
Nodes bearings have INA GIR15-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, right hand thread, GIR15-UK bearings dimensions: d:15,d2:40,l4:81mm, Cr: 17800N, C0r: 44800N.
- Brand: INA
- Inside Diameter: 15 mm
- Outside Diameter: 40 mm
- Width: 81 mm
- Basic dynamic load rating: 17.8 kN
- Basic static load rating: 17.8 kN
INA GIR20-UK Rod ends | d:20,d2:53,l4:103.5mm
Nodes bearings have INA GIR20-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, right hand thread, GIR20-UK bearings dimensions: d:20,d2:53,l4:103.5mm, Cr: 31300N, C0r: 75600N.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 53 mm
- Width: 103.5 mm
- Basic dynamic load rating: 31.3 kN
- Basic static load rating: 31.3 kN
INA GIR30-UK Rod ends | d:30,d2:73,l4:146.5mm
Nodes bearings have INA GIR30-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, right hand thread, GIR30-UK bearings dimensions: d:30,d2:73,l4:146.5mm, Cr: 65900N, C0r: 139000N.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 73 mm
- Width: 146.5 mm
- Basic dynamic load rating: 65.9 kN
- Basic static load rating: 65.9 kN
INA GIL40-DO-2RS Rod ends | d:40,d2:92,l4:188mm
Nodes bearings have INA GIL40-DO-2RS none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, lip seals on both sides, left hand thread, GIL40-DO-2RS bearings dimensions: d:40,d2:92,l4:188mm, Cr: 99100N, C0r: 194000N.
- Brand: INA
- Inside Diameter: 40 mm
- Outside Diameter: 92 mm
- Width: 188 mm
- Basic dynamic load rating: 99.1 kN
- Basic static load rating: 99.1 kN
INA GIL50-DO-2RS Rod ends | d:50,d2:112,l4:216mm
Nodes bearings have INA GIL50-DO-2RS none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, lip seals on both sides, left hand thread, GIL50-DO-2RS bearings dimensions: d:50,d2:112,l4:216mm, Cr: 157000N, C0r: 314000N.
- Brand: INA
- Inside Diameter: 50 mm
- Outside Diameter: 112 mm
- Width: 216 mm
- Basic dynamic load rating: 157 kN
- Basic static load rating: 157 kN
INA GIL80-DO-2RS Rod ends | d:80,d2:180,l4:320mm
Nodes bearings have INA GIL80-DO-2RS none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, lip seals on both sides, left hand thread, GIL80-DO-2RS bearings dimensions: d:80,d2:180,l4:320mm, Cr: 402000N, C0r: 690000N.
- Brand: INA
- Inside Diameter: 80 mm
- Outside Diameter: 180 mm
- Width: 320 mm
- Basic dynamic load rating: 402 kN
- Basic static load rating: 402 kN
INA GIR40-DO-2RS Rod ends | d:40,d2:92,l4:188mm
Nodes bearings have INA GIR40-DO-2RS none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, lip seals on both sides, right hand thread, GIR40-DO-2RS bearings dimensions: d:40,d2:92,l4:188mm, Cr: 99100N, C0r: 194000N.
- Brand: INA
- Inside Diameter: 40 mm
- Outside Diameter: 92 mm
- Width: 188 mm
- Basic dynamic load rating: 99.1 kN
- Basic static load rating: 99.1 kN
INA GIR60-DO-2RS Rod ends | d:60,d2:135,l4:242.5mm
Nodes bearings have INA GIR60-DO-2RS none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, lip seals on both sides, right hand thread, GIR60-DO-2RS bearings dimensions: d:60,d2:135,l4:242.5mm, Cr: 245000N, C0r: 485000N.
- Brand: INA
- Inside Diameter: 60 mm
- Outside Diameter: 135 mm
- Width: 242.5 mm
- Basic dynamic load rating: 245 kN
- Basic static load rating: 245 kN
INA GIR70-DO-2RS Rod ends | d:70,d2:160,l4:280mm
Nodes bearings have INA GIR70-DO-2RS none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, lip seals on both sides, right hand thread, GIR70-DO-2RS bearings dimensions: d:70,d2:160,l4:280mm, Cr: 313000N, C0r: 564000N.
- Brand: INA
- Inside Diameter: 70 mm
- Outside Diameter: 160 mm
- Width: 280 mm
- Basic dynamic load rating: 313 kN
- Basic static load rating: 313 kN
INA GIL40-UK-2RS Rod ends | d:40,d2:92,l4:188mm
Nodes bearings have INA GIL40-UK-2RS none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, lip seals on both sides, left hand thread, GIL40-UK-2RS bearings dimensions: d:40,d2:92,l4:188mm, Cr: 277000N, C0r: 194000N.
- Brand: INA
- Inside Diameter: 40 mm
- Outside Diameter: 92 mm
- Width: 188 mm
- Basic dynamic load rating: 277 kN
- Basic static load rating: 277 kN
INA GIL50-UK-2RS Rod ends | d:50,d2:112,l4:216mm
Nodes bearings have INA GIL50-UK-2RS none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, lip seals on both sides, left hand thread, GIL50-UK-2RS bearings dimensions: d:50,d2:112,l4:216mm, Cr: 442000N, C0r: 313000N.
- Brand: INA
- Inside Diameter: 50 mm
- Outside Diameter: 112 mm
- Width: 216 mm
- Basic dynamic load rating: 442 kN
- Basic static load rating: 442 kN
INA GIL70-UK-2RS Rod ends | d:70,d2:160,l4:280mm
Nodes bearings have INA GIL70-UK-2RS none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, lip seals on both sides, left hand thread, GIL70-UK-2RS bearings dimensions: d:70,d2:160,l4:280mm, Cr: 885000N, C0r: 564000N.
- Brand: INA
- Inside Diameter: 70 mm
- Outside Diameter: 160 mm
- Width: 280 mm
- Basic dynamic load rating: 885 kN
- Basic static load rating: 885 kN
INA GIR35-UK-2RS Rod ends | d:35,d2:82,l4:166mm
Nodes bearings have INA GIR35-UK-2RS none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, lip seals on both sides, right hand thread, GIR35-UK-2RS bearings dimensions: d:35,d2:82,l4:166mm, Cr: 210000N, C0r: 159000N.
- Brand: INA
- Inside Diameter: 35 mm
- Outside Diameter: 82 mm
- Width: 166 mm
- Basic dynamic load rating: 210 kN
- Basic static load rating: 210 kN
INA GAL10-DO Rod ends | d:10,d2:29,l2:62.5mm
Nodes bearings have INA GAL10-DO Rod end bearings in stock, GAL10-DO bearings dimensions: d:10,d2:29,l4:62.5mm, Cr: 8160N, C0r: 20600N, with external thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread.
- Brand: INA
- Inside Diameter: 10 mm
- Outside Diameter: 29 mm
- Width: 62.5 mm
- Basic dynamic load rating: 8.16 kN
- Basic static load rating: 8.16 kN
INA GAR10-DO Rod ends | d:10,d2:29,l2:62.5mm
Nodes bearings have INA GAR10-DO Rod end bearings in stock, GAR10-DO bearings dimensions: d:10,d2:29,l4:62.5mm, Cr: 8160N, C0r: 20600N, with external thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread.
- Brand: INA
- Inside Diameter: 10 mm
- Outside Diameter: 29 mm
- Width: 62.5 mm
- Basic dynamic load rating: 8.16 kN
- Basic static load rating: 8.16 kN
INA GAR20-DO Rod ends | d:20,d2:53,l2:104.5mm
Nodes bearings have INA GAR20-DO Rod end bearings in stock, GAR20-DO bearings dimensions: d:20,d2:53,l4:104.5mm, Cr: 29600N, C0r: 75600N, with external thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 53 mm
- Width: 104.5 mm
- Basic dynamic load rating: 29.6 kN
- Basic static load rating: 29.6 kN
INA GAR30-DO Rod ends | d:30,d2:73,l2:146.5mm
Nodes bearings have INA GAR30-DO Rod end bearings in stock, GAR30-DO bearings dimensions: d:30,d2:73,l4:146.5mm, Cr: 62300N, C0r: 119000N, with external thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 73 mm
- Width: 146.5 mm
- Basic dynamic load rating: 62.3 kN
- Basic static load rating: 62.3 kN
