SKF 3211 A ball bearings
Also known as : 3211 A, 5211
- Inside Diameter: 55 mm
- Outside Diameter: 100 mm
- Width: 33.3 mm
- Basic dynamic load rating: 60 kN
- Basic static load rating: 47.5 kN
SKF 3211 A Bearing
SKF 3211 A Bearing details
| model | 3211 A |
|---|---|
| d | 55 mm |
| D | 100 mm |
| B | 33.3 mm |
| d2 | 63.2 mm |
| D2 | 92.3 mm |
| a | 57 mm |
| r1,2 min. | 1.5 mm |
| da min | 63 mm |
| Da max | 91 mm |
| ra max | 1.5 mm |
| C | 60 kN, Basic dynamic load rating |
| C0 | 47.5 kN, Basic static load rating |
| Pu | 2 kN, Fatigue load limit |
| Reference speed | 6300 r/min |
| Limiting speed | 6300 r/min |
| kr | 0.06, Calculation factor |
| e | 0.8, Calculation factor |
| X | 0.63, Calculation factor |
| Y0 | 0.66, Calculation factor |
| Y1 | 0.78, Calculation factor |
| Y2 | 1.24, Calculation factor |
| Mass | 0.91 kg |
SKF 3211 A ball bearings, Angular contact ball bearings, double row. More related SKF bearings see: SKF angular contact ball bearings catalogue.
SKF 3211 A bearing cross reference

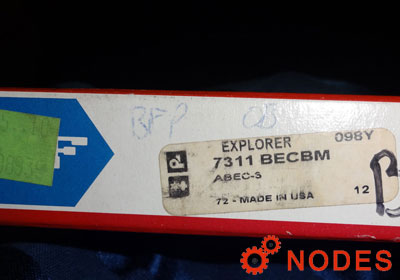

SKF 7311 BECBM bearing
55mm x 120mm x 29mm

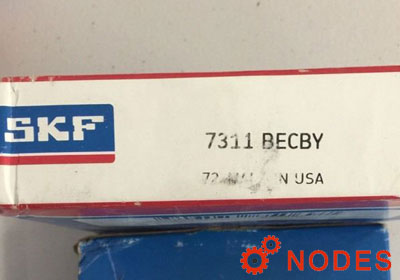

SKF 7311 BECBY bearing
55mm x 120mm x 29mm

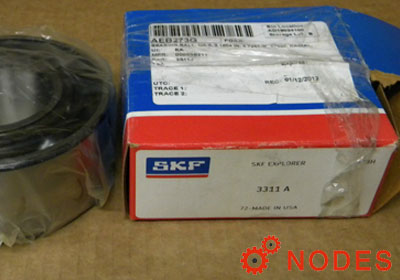

SKF 3311 A bearing
55mm x 120mm x 49.2mm
SKF QJ211MA bearing
55mm x 100mm x 21mm

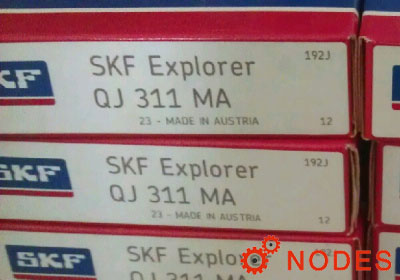

SKF QJ311MA bearing
55mm x 120mm x 29mm
FAG 3211-BD-XL bearing
55mm x 100mm x 33.3mm
FAG 3211-BD-XL-TVH bearing
55mm x 100mm x 33.3mm
SKF 7311 BECBP bearing
50 x 120 x 29 mm
NTN 5211S bearing
55 x 100 x 33.3 mm
