SKF GE40TXE-2LS spherical plain bearings | 40x62x28mm
Also known as : GE40TXE-2LS, GE40-UK-2RS
- Inside Diameter: 40 mm
- Outside Diameter: 62 mm
- Width: 28 mm
- Basic dynamic load rating: 280 kN
- Basic static load rating: 465 kN
SKF GE40TXE-2LS Bearing

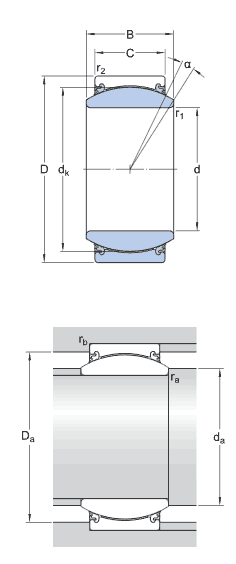

SKF GE40TXE-2LS Bearing details
number | GE40TXE-2LS |
---|---|
Type | maintenance-free radial spherical plain bearings |
d | 40 mm |
D | 62 mm |
B | 28 mm |
C | 22 mm |
α | 6 ° |
dk | 53 mm |
r1 min. | 0.6 mm |
r2 min. | 1 mm |
da min. | 43.5 mm |
da max. | 45 mm |
Da min. | 54.5 mm |
Da max. | 57.5 mm |
ra max. | 0.6 mm |
rb max. | 1 mm |
Calculation data | |
Basic dynamic load rating C | 280 kN |
Basic static load rating C0 | 465 kN |
Specific dynamic load factor K | 300 N/mm² |
Specific static load factor K0 | 500 N/mm² |
Mass | 0.32 kg |
As SKF bearing distributor, Nodes bearings have SKF GE40TXE-2LS spherical plain bearings in stock.
