TIMKEN 6022-N Deep Groove Ball Bearings | 110x170x28mm
Also known as : 6022-N
- Inside Diameter: 110 mm
- Outside Diameter: 170 mm
- Width: 28 mm
- Basic dynamic load rating: 82 kN
- Basic static load rating: 73 kN
TIMKEN 6022-N Bearing
TIMKEN 6022-N Bearing details
| Bearing Number | 6022-N |
|---|---|
| Brand | TIMKEN |
| Type | Deep groove ball bearings |
| Clearance | C0 (Normal) |
| Bore Size d | 110.000 mm |
| Features | O.D. Groove |
| Weight | 1.930 Kg |
| Outside Diameter D | 170.000 mm |
| Outside Ring Width B | 28.000 mm |
| Radius Rs min | 2.000 mm |
| Cr - Dynamic Load Rating | 82 kN |
| C0r - Static Load Rating | 73 kN |
| Grease Reference Speed | 4600 rpm |
| Oil Reference Speed | 6600 rpm |
As TIMKEN bearing distributor, Nodes bearings have TIMKEN 6022-N bearings in stock. Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously.
TIMKEN 6022-N bearing cross reference

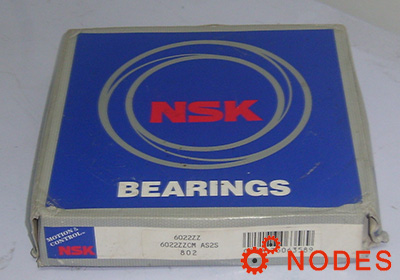

NSK 6022ZZ bearing
110mm x 170mm x 28mm

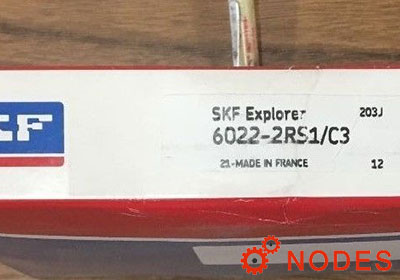

SKF 6022-2RS1/C3 bearing
110mm x 170mm x 28mm
NSK 6022 bearing
110mm x 170mm x 28mm
NSK 6022DDU bearing
110mm x 170mm x 28mm
NSK 6022VV bearing
110mm x 170mm x 28mm
SKF 6022 bearing
110mm x 170mm x 28mm
FAG 6022 bearing
110mm x 170mm x 28mm
FAG 6022-J20AA bearing
110mm x 170mm x 28mm
FAG 6022-J20C bearing
110mm x 170mm x 28mm
FAG 6022-M bearing
110mm x 170mm x 28mm
FAG 6022-2RSR bearing
110mm x 170mm x 28mm
