TIMKEN 6206-2RS Bearing

TIMKEN 6206-2RS Deep Groove Ball Bearings | 30x62x16mm

Also known as : 6206-2RS

  • Inside Diameter: 30 mm
  • Outside Diameter: 62 mm
  • Width: 16 mm
  • Basic dynamic load rating: 19.5 kN
  • Basic static load rating: 11.3 kN

Inquire Now


TIMKEN 6206-2RS Bearing

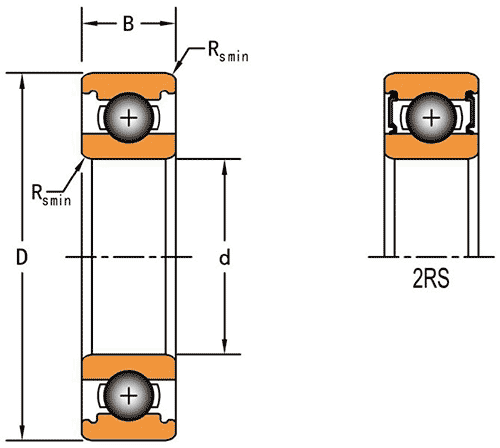

TIMKEN 6206-2RS Bearing details

Bearing Number6206-2RS
BrandTIMKEN
TypeDeep groove ball bearings
Clearance C0 (Normal)
Bore Size d 30.000 mm
Features Contact Seals
Weight 0.2 Kg
Outside Diameter D 62.000 mm
Outside Ring Width B 16.000 mm
Radius Rs min 1.000 mm
Cr - Dynamic Load Rating 19.5 kN
C0r - Static Load Rating 11.3 kN
Grease Reference Speed 11000 rpm
Oil Reference Speed 16000 rpm

As TIMKEN bearing distributor, Nodes bearings have TIMKEN 6206-2RS bearings in stock. Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously.

TIMKEN 6206-2RS bearing cross reference

SKF 6206-2RS1 bearing
30mm x 62mm x 16mm
SKF 6206-2Z bearing
30mm x 62mm x 16mm
NSK 6206DDU bearing
30mm x 62mm x 16mm
NSK 6206DDUC3 bearing
30mm x 62mm x 16mm
NSK 6206ZZNR bearing
30mm x 62mm x 16mm
SKF 6206-2RS1 bearing
30mm x 62mm x 16mm
SKF 6206-2RS1/C3 bearing
30mm x 62mm x 16mm
NSK 6206 bearing
30mm x 62mm x 16mm
NSK 6206ZZ bearing
30mm x 62mm x 16mm
NSK 6206VV bearing
30mm x 62mm x 16mm

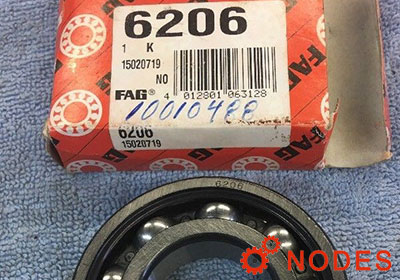

FAG 6206 bearing
30mm x 62mm x 16mm

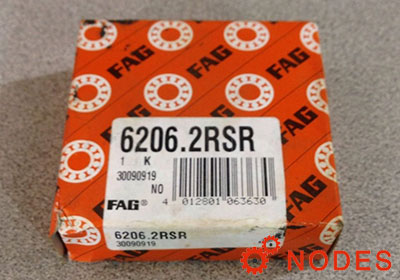

FAG 6206-2RSR bearing
30mm x 62mm x 16mm
