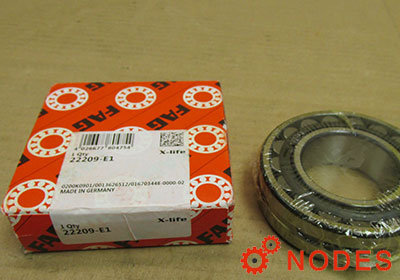

FAG 22209-E1-XL Spherical roller bearings
Also known as : 22209-E1-XL, 22209E, 22209EAE4
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 23 mm
- Basic dynamic load rating: 104 kN
- Basic static load rating: 99 kN
FAG 22209-E1-XL Bearing
FAG 22209-E1-XL Bearing details
| model | 22209-E1-XL |
|---|---|
| d | 45 mm |
| D | 85 mm |
| B | 23 mm |
| D1 | 75.6 mm |
| Da max | 78 mm |
| d2 | 55 mm |
| da min | 52 mm |
| ra max | 1 mm |
| rmin | 1.1 mm |
| Cr | 104000 N |
| C0r | 99000 N |
| Limiting speed | 10100 1/min |
| Reference speed | 5600 1/min |
| Cur | 12700 N Fatigue limit load, radial |
| e | 0.25 |
| Y1 | 2.74 |
| Y2 | 4.08 |
| Y0 | 2.68 |
| mass | 0.589 kg |
FAG 22209-E1-XL roller bearings, spherical roller bearing, Increased capacity design, main dimensions to DIN 635-2.
FAG 22209-E1-XL bearing cross reference
FAG 21309-E1-XL bearing
45mm x 100mm x 25mm
FAG 22309-E1-XL bearing
45mm x 100mm x 36mm

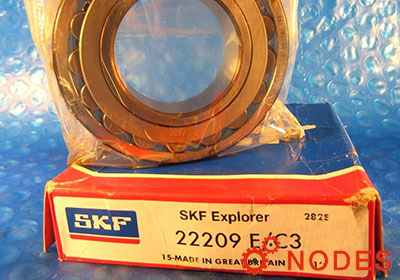

SKF 22209E/C3 bearing
45mm x 85mm x 23mm
NSK 22209EAE4 bearing
45mm x 85mm x 23.0mm
NSK 22209EAKE4 bearing
45mm x 85mm x 23.0mm
FAG 21309-E1-XL-K bearing
45mm x 100mm x 25mm
FAG 22209-E1-XL-K bearing
45mm x 85mm x 23mm
FAG 22309-E1-XL-K bearing
45mm x 100mm x 36mm
FAG WS22209-E1-XL-2RSR bearing
45mm x 85mm x 28mm
NTN 22209EAD1 bearing
45mm x 85mm x 23mm
NTN 22209EMD1 bearing
45mm x 85mm x 23mm
