NTN 22209EAD1 bearings | 45x85x23mm
Also known as : 22209E
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 23 mm
- Basic dynamic load rating: 121 kN
- Basic static load rating: 113 kN
NTN 22209EAD1 Bearing
NTN 22209EAD1 Bearing details
|

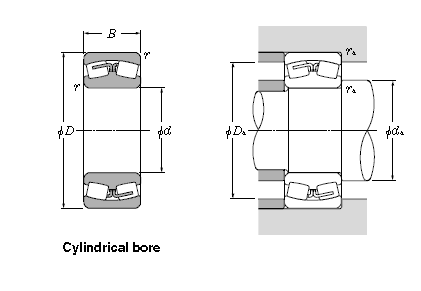

Boundary dimensions (mm) |
|||||
|---|---|---|---|---|---|
| Bore dia. d | Outside dia. D | Width B |
Chamfer rs min |
W0 | d0 |
| 45 | 85 | 23 | 1.1 | 6 | 2.5 |
|
Basic load ratings (kN) |
Fatigue load limit (kN) |
Limiting speed (min-1) |
Mass (kg) <approx.> |
||
|---|---|---|---|---|---|
| Dynamic Cr | Static C0r | Cu | Grease | Oil | |
| 121 | 113 | 8.76 | 6 100 | 7 700 | 0.572 |
|
Abutment and fillet dimensions (mm) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d1 | da | Da | D1 | ras | |||||||
| min | max | max | |||||||||
| 54 | 52 | 78 | 76 | 1.1 | |||||||
Nodes have NTN 22209EAD1 bearings in stock. 22209EAD1, Spherical roller bearings, Cylindrical bore.
