SKF 22209E/C3 Bearing

SKF 22209E/C3 spherical roller bearings

Also known as : 22209E/C3, 22209-E1-C3

  • Inside Diameter: 45 mm
  • Outside Diameter: 85 mm
  • Width: 23 mm
  • Basic dynamic load rating: 104 kN
  • Basic static load rating: 100 kN

Inquire Now


SKF 22209E/C3 Bearing

SKF 22209E/C3 Bearing details

model 22209E/C3
d 45 mm
D 85 mm
B 23 mm
d2 54.4 mm
D1 74.4 mm
b 5.5 mm
K 3 mm
r1,2 min. 1.1 mm

da min 52 mm
Da max 78 mm
ra max 1 mm

C 104 kN, Basic dynamic load rating
C0 100 kN, Basic static load rating
Pu 10.8 kN, Fatigue load limit
Reference speed 7500 r/min
Limiting speed 10000 r/min
e 0.26, Calculation factor
Y1 2.6, Calculation factor
Y2 3.9, Calculation factor
Y0 2.5, Calculation factor
Mass 0.58 kg

SKF 22209E/C3 roller bearings, SKF Explorer, C3 internal clearance, Spherical roller bearings.

SKF 22209E/C3 bearing cross reference

FAG 22209-E1-XL bearing
45mm x 85mm x 23mm

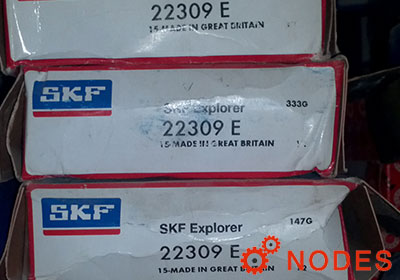

SKF 22309E bearing
45mm x 100mm x 36mm
NSK 22209EAE4 bearing
45mm x 85mm x 23.0mm
NSK 22209EAKE4 bearing
45mm x 85mm x 23.0mm
FAG 22209-E1-XL-K bearing
45mm x 85mm x 23mm
NTN 22209EAD1 bearing
45mm x 85mm x 23mm
NTN 22209EMD1 bearing
45mm x 85mm x 23mm
NTN 22209EAKD1 bearing
45mm x 85mm x 23mm
NTN 22209EMKD1 bearing
45mm x 85mm x 23mm
