All over the world, the Schaeffler Group's INA brand stands for the development and manufacture of rolling bearings, plain bearings, and linear guides for machine building and engine components for the automotive industry.
As an INA bearing distributor, Nodes bearings stocks a wide range of INA bearings, including: Needle roller bearings, roller bearings, track rollers, printing bearings, linear bearings, etc.
Schaeffler bearing catalogue - INA brand

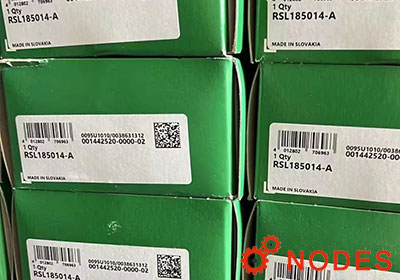

RSL185014-A INA cylindrical rol
RSL185014-A INA bearing, in stock, Cylindrical roller bearing RSL18, two-row, no outer ring, RSL185014-A dimensions: 70x100.28x54mm.
- Brand: INA
- Dimension: 70x100.28x54mm
- Basic dynamic load rating: 233 kN
- Basic static load rating: 350 kN
INA SX011828 bearing | 140x175x
Nodes bearings have INA SX011828 crossed roller bearings in stock, dimension series 18 to DIN 616, SX011828 bearing dimensions: 140x175x18 mm, Cr: 45500N, C0r: 109000N.
- Brand: INA
- Dimension: 140x175x18 mm
- Basic dynamic load rating: 45.5 kN
- Basic static load rating: 109 kN
INA NUTR2562 Yoke type track ro
Nodes bearings have INA NUTR2562 bearings in stock, Yoke type track rollers, NUTR2562 bearings dimensions: 25mm x 62mm x 25mm, Cr: 35500N, C0r: 54000N, full complement cylindrical roller set, with axial guidance, labyrinth seals on both sides.
- Brand: INA
- Dimension: 25mm x 62mm x 25mm
- Basic dynamic load rating: 35.5 kN
- Basic static load rating: 54 kN
INA 3005-2RS bearings
Nodes bearings have INA 3005-2RS bearings in stock, angular contact ball bearings, 3005-2RS bearings dimensions: 25mm x 47mm x 16mm, Cr: 15200N, C0r: 10900N.
- Brand: INA
- Dimension: 25mm x 47mm x 16mm
- Basic dynamic load rating: 15.2 kN
- Basic static load rating: 10.9 kN
INA NUTR2052 Yoke type track ro
Nodes bearings have INA NUTR2052 bearings in stock, Yoke type track rollers, NUTR2052 bearings dimensions: 20mm x 52mm x 25mm, Cr: 32000N, C0r: 44000N, full complement cylindrical roller set, with axial guidance, labyrinth seals on both sides.
- Brand: INA
- Dimension: 20mm x 52mm x 25mm
- Basic dynamic load rating: 32 kN
- Basic static load rating: 44 kN
INA SL192310-XL roller bearings
INA SL192310-XL bearing, Brand: INA, Cylindrical roller bearings, semi-locating bearing, full complement cylindrical roller set, self-retaining roller set, Dimensions: 50mm x 110mm x 40mm, Cr: 232000N, C0r: 215000N, Reference speed:2800 1/min.
- Brand: INA
- Dimension: 50mm x 110mm x 40mm
- Basic dynamic load rating: 232 kN
- Basic static load rating: 215 kN

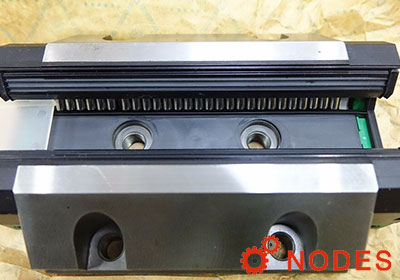

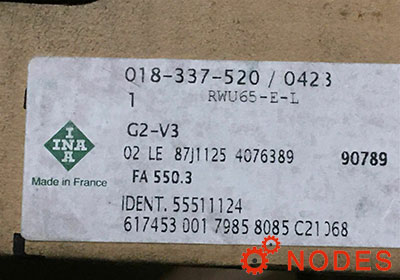

INA RWU65-E-L Recirculating rol
INA RWU65-E-L Recirculating roller bearing carriage, In stock, height:90 mm, width carriage:170 mm, overall length carriage:261.9 mm, width rail:63 mm
- Brand: INA
- Height: 90 mm
- Width carriage: 170 mm
- Length carriage: 261.9 mm
- Width rail: 63 mm

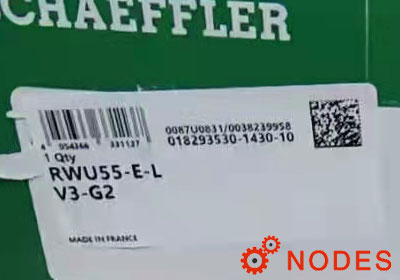

INA RWU55-E-L Recirculating rol
INA RWU55-E-L Recirculating roller bearing carriage, In stock, height:70 mm, width carriage:140 mm, overall length carriage:210.7 mm, width rail:53 mm
- Brand: INA
- Height: 70 mm
- Width carriage: 140 mm
- Length carriage: 210.7 mm
- Width rail: 53 mm

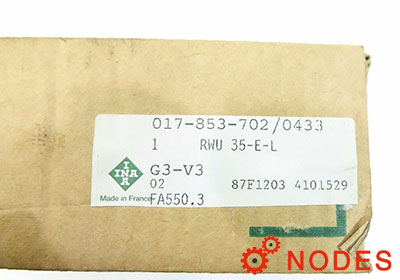

INA RWU35-E-L Recirculating rol
INA RWU35-E-L Recirculating roller bearing carriage, In stock, height:48 mm, width carriage:100 mm, overall length carriage:148.8 mm, width rail:34 mm.
- Brand: INA
- Height: 48 mm
- Width carriage: 100 mm
- Length carriage: 148.8 mm
- Width rail: 34 mm
INA RWU100-E-L-V3-G2 Recirculat
INA RWU100-E-L-V3-G2 Recirculating roller bearing carriage, In stock, height:120 mm, width carriage:250 mm, overall length carriage:372.2 mm, width rail:100 mm, Preload: V3, Accuracy class: G2.
- Brand: INA
- Height: 120 mm
- Width carriage: 250 mm
- Length carriage: 372.2 mm
- Width rail: 100 mm
INA RWU65-E-SL-V3-G2 Recirculat
INA RWU65-E-SL-V3-G2 Recirculating roller bearing carriage, In stock, height:90 mm, width carriage:126 mm, overall length carriage:261.9 mm, width rail:63 mm, Preload: V3, Accuracy class: G2.
- Brand: INA
- Height: 90 mm
- Width carriage: 126 mm
- Length carriage: 261.9 mm
- Width rail: 63 mm
INA HK1512 needle roller bearin
INA HK1512 needle bearing, Needle Roller Bearing for Heidelberg K-Line, KOR, KORA, KORD, KORS, Dimensions:15mm x 21mm x 12mm.
- Brand: INA
- Dimension: 15mm x 21mm x 12mm
- Basic dynamic load rating: 7.9 kN
- Basic static load rating: 9.4 kN
INA SCE108 shell needle bearing
INA SCE108 bearing, inch sizes needle roller bearings, Dimensions: 15.875mm x 20.638mm x 12.7mm, Cr: 8100N, C0r: 12000N, Limiting Speeds:16000 1/min.
- Brand: INA
- Dimension: 15.875mm x 20.638mm x 12.7mm
- Basic dynamic load rating: 8.1 kN
- Basic static load rating: 12 kN

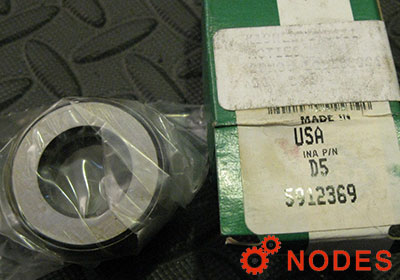

INA D5 thrust bearing | 19.05x3
Nodes bearings have INA D5 Thrust ball bearings in stock, thrust ball bearing, D5 bearing dimensions: 19.05x37.313x14.3 mm, Cr: 18900N, C0r: 32500N.
- Brand: INA
- Dimension: 19.05x37.313x14.3 mm
- Basic dynamic load rating: 18.9 kN
- Basic static load rating: 32.5 kN
INA XV50 bearing | 50x100 mm
Nodes bearings have INA XV50 crossed roller bearings in stock, Crossed roller bearings, XV50 bearing dimensions: 50x100 mm, Ca: 20500N, C0a: 54000N.
- Brand: INA
- Dimension: 50x100 mm
- Basic dynamic load rating: 20.5 kN
- Basic static load rating: 54 kN
INA XV60 bearing | 60x110 mm
Nodes bearings have INA XV60 crossed roller bearings in stock, Crossed roller bearings, XV60 bearing dimensions: 60x110 mm, Ca: 21700N, C0a: 61000N.
- Brand: INA
- Dimension: 60x110 mm
- Basic dynamic load rating: 21.7 kN
- Basic static load rating: 61 kN
INA XV70 bearing | 70x120 mm
Nodes bearings have INA XV70 crossed roller bearings in stock, Crossed roller bearings, XV70 bearing dimensions: 70x120 mm, Ca: 23600N, C0a: 70000N.
- Brand: INA
- Dimension: 70x120 mm
- Basic dynamic load rating: 23.6 kN
- Basic static load rating: 70 kN

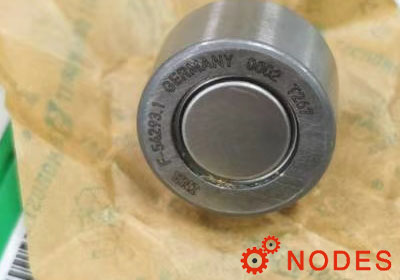

INA F-54293 Cam Follower bearings
Nodes bearings have INA F-54293 Cam Follower bearing in stock, d1: 10mm, D: 24mm, B1: 26mm

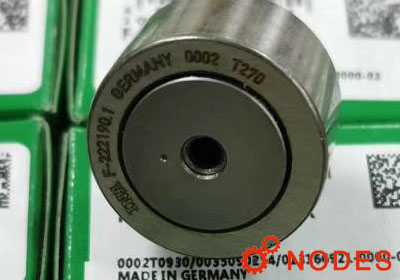

INA F-222190.1 (00.550.1505) Cam follower bearings
Nodes bearings have INA F-222190.1 (00.550.1505) Cam follower bearings in stock, INA F-222190.1 (00.550.1505) Cam follower bearings for Heidelberg SM52 SM74

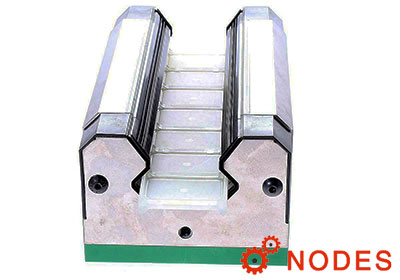

INA linear recirculating roller bearing
INA full complement linear recirculating roller bearing and guideway assemblies are the heavy duty designs in the range of INA monorail guidance systems. They are used wherever linear guidance systems must support extremely heavy loads, where particu

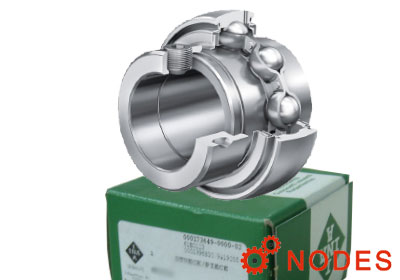

INA insert ball bearings
INA radial insert ball bearings are single row, ready-to-fit units comprising a solid outer ring, and inner ring extended on one or both sides, cages made from plastic or sheet steel and seals of ytpe P, R, L or T. Bearings with an inner ring extended on both sides undergo less tilting of the inner ring and therefore run more smoothly.

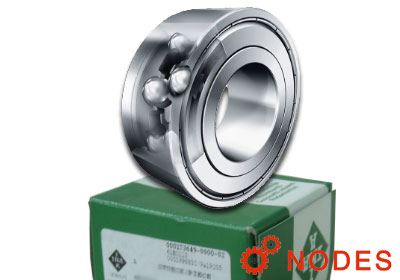

INA angular contact ball bearings
As a INA bearing distributor, Nodes bearings have INA angular contact ball bearings in stock, including 718 series angular contact ball bearings and double row contact ball bearings.
INA axial angular contact ball bearings for screw drives
INA axial angular contact ball bearings for screw drives are precision bearings for screw drive bearing arrangements. Depending on the series, they can support radial forces as well as axial forces in one or both directions.

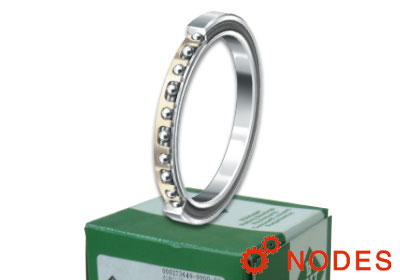

INA thin section ball bearings
INA deep groove ball bearings: CSCAA, CSCA, CSCB, CSCC, CSCU, CSCD, CSCF, CSCG series
INA four point contact ball bearings: CSXAA, CSXA, CSXB, CSXC, CSXU, CSXD, CSXF, CSXG series
INA Angular contact ball bearings: CSEAA, CSEA, CSEB, CSEC, CSED, CSEF, CSEG series.

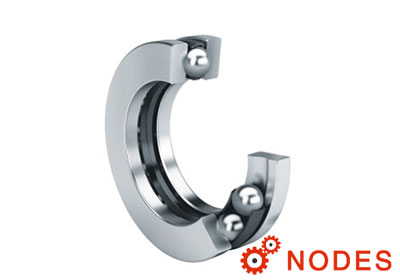

INA ball thrust bearings
Nodes supplies INA ball thrust bearings that include 10, 19, 20, 29, 39, 41, 44, B, D, EW series. INA ball thrust bearings are available in a wide collection of ISO, DIN and popular inch and metric series.
INA thrust cylindrical roller bearings
Axial cylindrical roller bearings: 811, 812, 893, 894 series
Axial cylindrical roller and cage assemblies: K811, K812, K893, K894 series
And axial bearing washers: GS811, GS812, GS893, GS894, WS811, WS812, WS893, WS894, LS
INA needle thrust bearings
Nodes supplies INA needle thrust bearings, including axial needle roller and cage assemblies AXK, axial needle roller bearings with centring spigot AXW, and inch sizes TC series.
INA drawn cup needle roller bearings
INA Drawn cup needle roller bearings with open ends and with closed end are needle roller bearings with a very small radial section height. They comprise thin-walled, drawn cup outer rings and needle roller and cage assemblies which together form a complete unit.

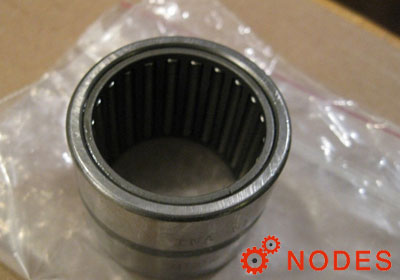

INA machined needle roller bearings
INA Needle roller bearings with ribs are single or double row units comprising machined outer rings with ribs, needle roller and cage assemblies and removable inner rings.

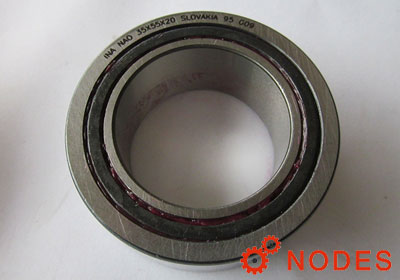

INA needle roller bearings without ribs
INA needle roller bearings without ribs comprise machined outer rings without ribs, needle roller and cage assemblies and removable inner rings. Since the bearings are not self-retaining, the outer ring, needle roller and cage assembly and inner ring can be fitted independently of each other.
INA aligning needle roller bearings
INA aligning needle roller bearings comprise drawn outer cups, plastic support rings with a concave inner profile, outer rings with a spherical outside surface, needle roller and cage assemblies and removable inner rings.
INA combined needle roller bearings
INA combined needle roller bearings comprise radial needle roller bearings and a rolling bearing component capable of supporting axial loads. They can support high radial forces as well as axial forces in one direction, while NKIB can support axial forces from both directions, and are used as locating or semi-locating bearings.

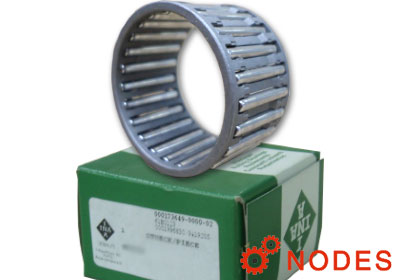

INA needle roller and cage assemblies
INA needle roller and cage assemblies are single or double row units comprising cages and needle rollers, The single row design is based on DIN 5 405-1.
INA crossed roller bearings
INA crossed-roller bearings are bearings for high-precision applications whose dimensions conform to ISO dimension series 18 as per DIN 616. They comprise outer rings, inner rings, rolling elements and plastic spacers. The outer ring is split and is held together by three retaining rings.
INA rotary table bearings
INA Rotary table bearings are double-direction axial bearings for screw mounting with a radial guidance bearing. These ready-to-fit, pregreased units are very rigid, have high load-carrying capacity and operate with particularly high accuracy.
INA yoke type track rollers
INA Yoke type track rollers are single or double row units mounted on shafts or studs. They comprise thick-walled outer rings with a profiled outside surface and needle roller and cage assemblies or full complement needle roller or cylindrical roller sets.
INA ball bearing track rollers
INA ball bearing track rollers are self-retaining, single or double row ball bearings with particularly thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions.
INA spherical plain bearings
Spherical plain bearings are ready-to-fit, standardised machine elements. Due to the outer ring with its concave inner slideway and the inner ring with its curved outer slideway, they can perform spatial adjustment motions.

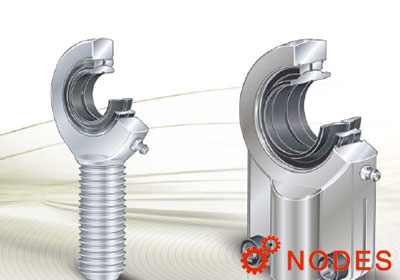

INA rod ends bearings
Maintenance-free rod ends comprise a housing with integral shank and a maintenance-free spherical plain bearing. The integral shank has an internal or external thread. The spherical plain bearing is firmly seated and located in the housing. The housings and shanks are protected against corrosion by a zinc coating.
