Nodes supply tapered roller bearings in single, double and four-row tapered roller bearing configurations. We have a a wide range of taper roller bearings in stock, brand: SKF, NSK, FAG, TIMKEN, NTN.
Tapered roller bearings consist of four basic components including: the cone (inner ring), the cup (outer ring), tapered rollers, and a cage (roller retainer).
FAG 32220-A tapered roller bearings
FAG 32220-A bearing, tapered roller bearings, Dimensions: 100mm x 180mm x 49mm, Cr: 335000N, C0r: 475000N, Limiting Speeds:3850 1/min.
- Brand: FAG
- Inside Diameter: 100 mm
- Outside Diameter: 180 mm
- Width: 49 mm
- Basic dynamic load rating: 335 kN
- Basic static load rating: 335 kN
FAG 32307-A tapered roller bearings
FAG 32307-A bearing, tapered roller bearings, Dimensions: 35mm x 80mm x 32.75mm, Cr: 100000N, C0r: 113000N, Limiting Speeds:9400 1/min.
- Brand: FAG
- Inside Diameter: 35 mm
- Outside Diameter: 80 mm
- Width: 32.75 mm
- Basic dynamic load rating: 100 kN
- Basic static load rating: 100 kN
FAG 32311-A tapered roller bearings
FAG 32311-A bearing, tapered roller bearings, Dimensions: 55mm x 120mm x 45.5mm, Cr: 211000N, C0r: 270000N, Limiting Speeds:6100 1/min.
- Brand: FAG
- Inside Diameter: 55 mm
- Outside Diameter: 120 mm
- Width: 45.5 mm
- Basic dynamic load rating: 211 kN
- Basic static load rating: 211 kN
FAG 32314-BA tapered roller bearings
FAG 32314-BA bearing, tapered roller bearings, Dimensions: 70mm x 150mm x 54mm, Cr: 285000N, C0r: 395000N, Limiting Speeds:4650 1/min.
- Brand: FAG
- Inside Diameter: 70 mm
- Outside Diameter: 150 mm
- Width: 54 mm
- Basic dynamic load rating: 285 kN
- Basic static load rating: 285 kN
FAG 32318-A tapered roller bearings
FAG 32318-A bearing, tapered roller bearings, Dimensions: 90mm x 190mm x 67.5mm, Cr: 485000N, C0r: 660000N, Limiting Speeds:3700 1/min.
- Brand: FAG
- Inside Diameter: 90 mm
- Outside Diameter: 190 mm
- Width: 67.5 mm
- Basic dynamic load rating: 485 kN
- Basic static load rating: 485 kN

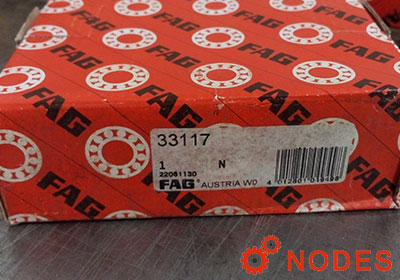

FAG 33117 tapered roller bearings
FAG 33117 bearing, tapered roller bearings, Dimensions: 85mm x 140mm x 41mm, Cr: 221000N, C0r: 350000N, Limiting Speeds:4750 1/min.
- Brand: FAG
- Inside Diameter: 85 mm
- Outside Diameter: 140 mm
- Width: 41 mm
- Basic dynamic load rating: 221 kN
- Basic static load rating: 221 kN

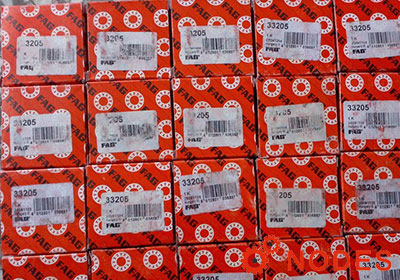

FAG 33205 tapered roller bearings
FAG 33205 bearing, tapered roller bearings, Dimensions: 25mm x 52mm x 22mm, Cr: 48500N, C0r: 58000N, Limiting Speeds:14200 1/min.
- Brand: FAG
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 22 mm
- Basic dynamic load rating: 48.5 kN
- Basic static load rating: 48.5 kN

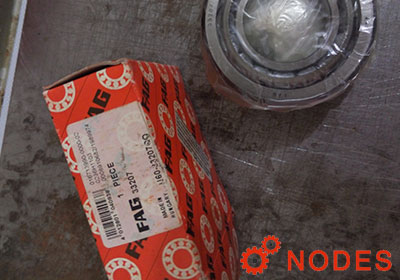

FAG 33207 tapered roller bearings
FAG 33207 bearing, tapered roller bearings, Dimensions: 35mm x 72mm x 28mm, Cr: 86000N, C0r: 105000N, Limiting Speeds:10100 1/min.
- Brand: FAG
- Inside Diameter: 35 mm
- Outside Diameter: 72 mm
- Width: 28 mm
- Basic dynamic load rating: 86 kN
- Basic static load rating: 86 kN

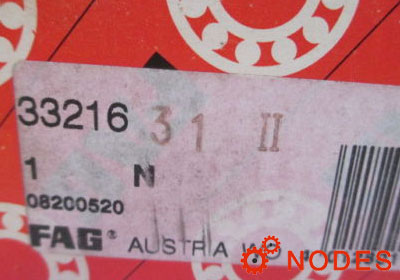

FAG 33216 tapered roller bearings
FAG 33216 bearing, tapered roller bearings, Dimensions: 80mm x 140mm x 46mm, Cr: 250000N, C0r: 380000N, Limiting Speeds:4800 1/min.
- Brand: FAG
- Inside Diameter: 80 mm
- Outside Diameter: 140 mm
- Width: 46 mm
- Basic dynamic load rating: 250 kN
- Basic static load rating: 250 kN

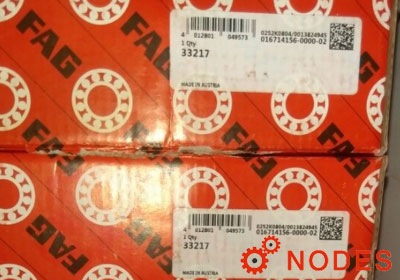

FAG 33217 tapered roller bearings
FAG 33217 bearing, tapered roller bearings, Dimensions: 85mm x 150mm x 49mm, Cr: 295000N, C0r: 435000N, Limiting Speeds:4500 1/min.
- Brand: FAG
- Inside Diameter: 85 mm
- Outside Diameter: 150 mm
- Width: 49 mm
- Basic dynamic load rating: 295 kN
- Basic static load rating: 295 kN

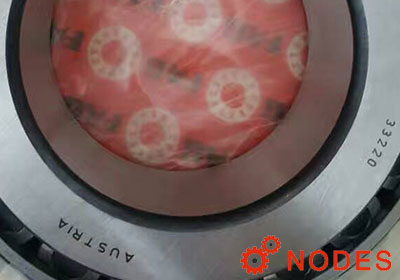

FAG 33220 tapered roller bearings
FAG 33220 bearing, tapered roller bearings, Dimensions: 100mm x 180mm x 63mm, Cr: 430000N, C0r: 660000N, Limiting Speeds:3700 1/min.
- Brand: FAG
- Inside Diameter: 100 mm
- Outside Diameter: 180 mm
- Width: 63 mm
- Basic dynamic load rating: 430 kN
- Basic static load rating: 430 kN

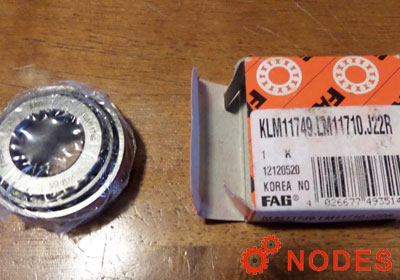

FAG KLM11749-LM11710 tapered roller bearings
FAG KLM11749-LM11710 bearing, tapered roller bearings in inch sizes, Dimensions: 17.462mm x 39.878mm x 13.843mm, Cr: 21200N, C0r: 20800N, Limiting Speeds:20100 1/min.
- Brand: FAG
- Inside Diameter: 17.462 mm
- Outside Diameter: 39.878 mm
- Width: 13.843 mm
- Basic dynamic load rating: 21.2 kN
- Basic static load rating: 21.2 kN

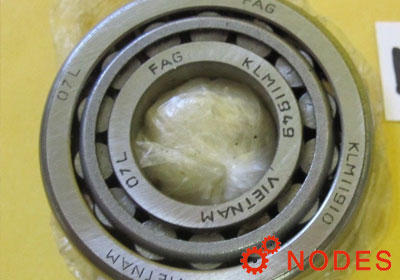

FAG KLM11949-LM11910 tapered roller bearings
FAG KLM11949-LM11910 bearing, tapered roller bearings in inch sizes, Dimensions: 19.05mm x 45.237mm x 15.494mm, Cr: 28000N, C0r: 28000N, Limiting Speeds:17800 1/min.
- Brand: FAG
- Inside Diameter: 19.05 mm
- Outside Diameter: 45.237 mm
- Width: 15.494 mm
- Basic dynamic load rating: 28 kN
- Basic static load rating: 28 kN

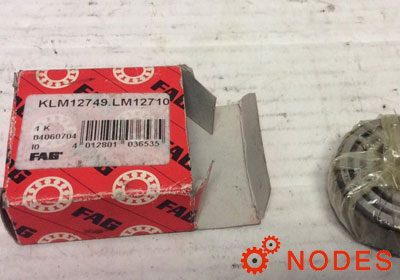

FAG KLM12749-LM12710 tapered roller bearings
FAG KLM12749-LM12710 bearing, tapered roller bearings in inch sizes, Dimensions: 21.986mm x 45.237mm x 15.494mm, Cr: 28500N, C0r: 32000N, Limiting Speeds:16900 1/min.
- Brand: FAG
- Inside Diameter: 21.986 mm
- Outside Diameter: 45.237 mm
- Width: 15.494 mm
- Basic dynamic load rating: 28.5 kN
- Basic static load rating: 28.5 kN

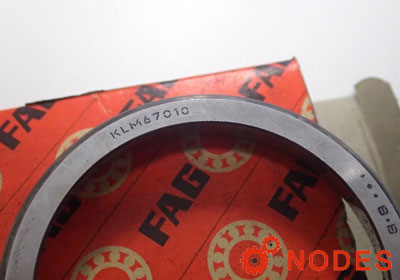

FAG KLM67043-LM67010 tapered roller bearings
FAG KLM67043-LM67010 bearing, tapered roller bearings in inch sizes, Dimensions: 28.575mm x 59.131mm x 15.875mm, Cr: 34000N, C0r: 40000N, Limiting Speeds:12800 1/min.
- Brand: FAG
- Inside Diameter: 28.575 mm
- Outside Diameter: 59.131 mm
- Width: 15.875 mm
- Basic dynamic load rating: 34 kN
- Basic static load rating: 34 kN
FAG KLM67047-LM67010 tapered roller bearings
FAG KLM67047-LM67010 bearing, tapered roller bearings in inch sizes, Dimensions: 31.75mm x 59.131mm x 15.875mm, Cr: 34000N, C0r: 40000N, Limiting Speeds:12800 1/min.
- Brand: FAG
- Inside Diameter: 31.75 mm
- Outside Diameter: 59.131 mm
- Width: 15.875 mm
- Basic dynamic load rating: 34 kN
- Basic static load rating: 34 kN

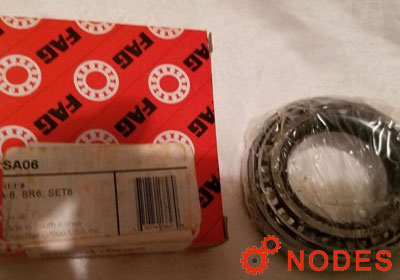

FAG KLM67048-LM67010 tapered roller bearings
FAG KLM67048-LM67010 bearing, tapered roller bearings in inch sizes, Dimensions: 31.75mm x 59.131mm x 15.875mm, Cr: 34000N, C0r: 40000N, Limiting Speeds:12800 1/min.
- Brand: FAG
- Inside Diameter: 31.75 mm
- Outside Diameter: 59.131 mm
- Width: 15.875 mm
- Basic dynamic load rating: 34 kN
- Basic static load rating: 34 kN
FAG KLM67049-A-LM67010 tapered roller bearings
FAG KLM67049-A-LM67010 bearing, tapered roller bearings in inch sizes, Dimensions: 31.75mm x 59.131mm x 15.875mm, Cr: 34000N, C0r: 40000N, Limiting Speeds:12800 1/min.
- Brand: FAG
- Inside Diameter: 31.75 mm
- Outside Diameter: 59.131 mm
- Width: 15.875 mm
- Basic dynamic load rating: 34 kN
- Basic static load rating: 34 kN
FAG KLM48548-A-LM48510 tapered roller bearings
FAG KLM48548-A-LM48510 bearing, tapered roller bearings in inch sizes, Dimensions: 34.925mm x 65.088mm x 18.034mm, Cr: 46500N, C0r: 56000N, Limiting Speeds:11500 1/min.
- Brand: FAG
- Inside Diameter: 34.925 mm
- Outside Diameter: 65.088 mm
- Width: 18.034 mm
- Basic dynamic load rating: 46.5 kN
- Basic static load rating: 46.5 kN

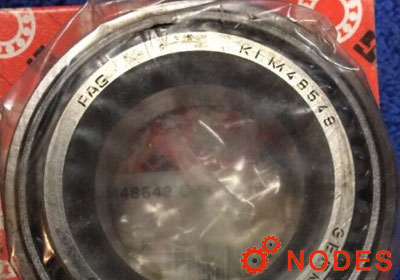

FAG KLM48548-LM48510 tapered roller bearings
FAG KLM48548-LM48510 bearing, tapered roller bearings in inch sizes, Dimensions: 34.925mm x 65.088mm x 18.034mm, Cr: 46500N, C0r: 56000N, Limiting Speeds:11500 1/min.
- Brand: FAG
- Inside Diameter: 34.925 mm
- Outside Diameter: 65.088 mm
- Width: 18.034 mm
- Basic dynamic load rating: 46.5 kN
- Basic static load rating: 46.5 kN

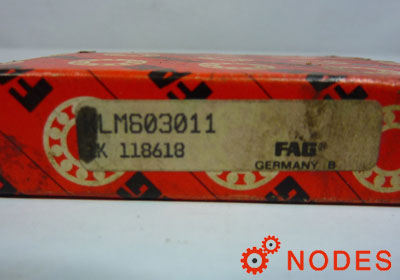

FAG KLM603049-LM603011 tapered roller bearings
FAG KLM603049-LM603011 bearing, tapered roller bearings in inch sizes, Dimensions: 45.242mm x 77.788mm x 19.842mm, Cr: 55000N, C0r: 69000N, Limiting Speeds:9300 1/min.
- Brand: FAG
- Inside Diameter: 45.242 mm
- Outside Diameter: 77.788 mm
- Width: 19.842 mm
- Basic dynamic load rating: 55 kN
- Basic static load rating: 55 kN
TIMKEN 09081-09194 tapered roller bearings
TIMKEN 09081-09194 bearing, Tapered roller bearings, Dimensions:20.625mm(0.8120 in) x 49.225mm(1.9380 in) x 23.020mm(0.9063 in)
- Brand: TIMKEN
- Inside Diameter: 20.625 mm
- Outside Diameter: 49.225 mm
- Width: 23.02 mm
- Basic dynamic load rating: 42.8 kN
- Basic static load rating: 42.8 kN
TIMKEN 09081-09195 tapered roller bearings
TIMKEN 09081-09195 bearing, Tapered roller bearings, Dimensions:20.625mm(0.8120 in) x 49.225mm(1.9380 in) x 19.845mm(0.7813 in)
- Brand: TIMKEN
- Inside Diameter: 20.625 mm
- Outside Diameter: 49.225 mm
- Width: 19.845 mm
- Basic dynamic load rating: 42.8 kN
- Basic static load rating: 42.8 kN
TIMKEN 09081-09196 tapered roller bearings
TIMKEN 09081-09196 bearing, Tapered roller bearings, Dimensions:20.625mm(0.8120 in) x 49.225mm(1.9380 in) x 23.020mm(0.9063 in)
- Brand: TIMKEN
- Inside Diameter: 20.625 mm
- Outside Diameter: 49.225 mm
- Width: 23.02 mm
- Basic dynamic load rating: 42.8 kN
- Basic static load rating: 42.8 kN
TIMKEN 09081-09201 tapered roller bearings
TIMKEN 09081-09201 bearing, Tapered roller bearings, Dimensions:20.625mm(0.8120 in) x 50.8mm(2 in) x 20.640mm(0.8126 in)
- Brand: TIMKEN
- Inside Diameter: 20.625 mm
- Outside Diameter: 50.8 mm
- Width: 20.64 mm
- Basic dynamic load rating: 42.8 kN
- Basic static load rating: 42.8 kN
TIMKEN LM12749-LM12710 tapered roller bearings
TIMKEN LM12749-LM12710 bearing, Tapered roller bearings, Dimensions:21.986mm(0.8656 in) x 45.237mm(1.7810 in) x 15.494mm(0.6100 in)
- Brand: TIMKEN
- Inside Diameter: 21.986 mm
- Outside Diameter: 45.237 mm
- Width: 15.494 mm
- Basic dynamic load rating: 38.6 kN
- Basic static load rating: 38.6 kN
TIMKEN LM12749-LM12710P tapered roller bearings
TIMKEN LM12749-LM12710P bearing, Tapered roller bearings, Dimensions:21.986mm(0.8656 in) x 45.237mm(1.7810 in) x 15.497mm(0.6101 in)
- Brand: TIMKEN
- Inside Diameter: 21.986 mm
- Outside Diameter: 45.237 mm
- Width: 15.497 mm
- Basic dynamic load rating: 38.6 kN
- Basic static load rating: 38.6 kN
TIMKEN LM12749-LM12711 tapered roller bearings
TIMKEN LM12749-LM12711 bearing, Tapered roller bearings, Dimensions:21.986mm(0.8656 in) x 45.974mm(1.8100 in) x 15.494mm(0.6100 in)
- Brand: TIMKEN
- Inside Diameter: 21.986 mm
- Outside Diameter: 45.974 mm
- Width: 15.494 mm
- Basic dynamic load rating: 38.6 kN
- Basic static load rating: 38.6 kN
TIMKEN 12580-12520 tapered roller bearings
TIMKEN 12580-12520 bearing, Tapered roller bearings, Dimensions:20.638mm(0.8125 in) x 49.225mm(1.9380 in) x 19.845mm(0.7813 in)
- Brand: TIMKEN
- Inside Diameter: 20.638 mm
- Outside Diameter: 49.225 mm
- Width: 19.845 mm
- Basic dynamic load rating: 43.6 kN
- Basic static load rating: 43.6 kN
TIMKEN M12649-M12610 tapered roller bearings
TIMKEN M12649-M12610 bearing, Tapered roller bearings, Dimensions:21.430mm(0.8437 in) x 50.005mm(1.9687 in) x 17.526mm(0.6900 in)
- Brand: TIMKEN
- Inside Diameter: 21.43 mm
- Outside Diameter: 50.005 mm
- Width: 17.526 mm
- Basic dynamic load rating: 52.2 kN
- Basic static load rating: 52.2 kN
TIMKEN M12649X-M12610 tapered roller bearings
TIMKEN M12649X-M12610 bearing, Tapered roller bearings, Dimensions:21.430mm(0.8437 in) x 50.005mm(1.9687 in) x 17.526mm(0.6900 in)
- Brand: TIMKEN
- Inside Diameter: 21.43 mm
- Outside Diameter: 50.005 mm
- Width: 17.526 mm
- Basic dynamic load rating: 40.8 kN
- Basic static load rating: 40.8 kN
TIMKEN M12648-M12610 tapered roller bearings
TIMKEN M12648-M12610 bearing, Tapered roller bearings, Dimensions:22.225mm(0.8750 in) x 50.005mm(1.9687 in) x 17.526mm(0.6900 in)
- Brand: TIMKEN
- Inside Diameter: 22.225 mm
- Outside Diameter: 50.005 mm
- Width: 17.526 mm
- Basic dynamic load rating: 52.2 kN
- Basic static load rating: 52.2 kN
TIMKEN M12648A-M12610 tapered roller bearings
TIMKEN M12648A-M12610 bearing, Tapered roller bearings, Dimensions:22.225mm(0.8750 in) x 50.005mm(1.9687 in) x 17.526mm(0.6900 in)
- Brand: TIMKEN
- Inside Diameter: 22.225 mm
- Outside Diameter: 50.005 mm
- Width: 17.526 mm
- Basic dynamic load rating: 52.2 kN
- Basic static load rating: 52.2 kN
TIMKEN 1380-1328 tapered roller bearings
TIMKEN 1380-1328 bearing, Tapered roller bearings, Dimensions:22.225mm(0.8750 in) x 52.388mm(2.0625 in) x 19.368mm(0.7625 in)
- Brand: TIMKEN
- Inside Diameter: 22.225 mm
- Outside Diameter: 52.388 mm
- Width: 19.368 mm
- Basic dynamic load rating: 47.9 kN
- Basic static load rating: 47.9 kN
TIMKEN 1380-1328X tapered roller bearings
TIMKEN 1380-1328X bearing, Tapered roller bearings, Dimensions:22.225mm(0.8750 in) x 52.388mm(2.0625 in) x 19.370mm(0.7626 in)
- Brand: TIMKEN
- Inside Diameter: 22.225 mm
- Outside Diameter: 52.388 mm
- Width: 19.37 mm
- Basic dynamic load rating: 47.9 kN
- Basic static load rating: 47.9 kN
TIMKEN 1380-1329 tapered roller bearings
TIMKEN 1380-1329 bearing, Tapered roller bearings, Dimensions:22.225mm(0.8750 in) x 53.975mm(2.1250 in) x 19.368mm(0.7625 in)
- Brand: TIMKEN
- Inside Diameter: 22.225 mm
- Outside Diameter: 53.975 mm
- Width: 19.368 mm
- Basic dynamic load rating: 47.9 kN
- Basic static load rating: 47.9 kN
FAG K594-592-A tapered roller bearings
FAG K594-592-A bearing, tapered roller bearings in inch sizes, Dimensions: 95.25mm x 152.4mm x 39.688mm, Cr: 182000N, C0r: 285000N, Limiting Speeds:4600 1/min.
- Brand: FAG
- Inside Diameter: 95.25 mm
- Outside Diameter: 152.4 mm
- Width: 39.688 mm
- Basic dynamic load rating: 182 kN
- Basic static load rating: 182 kN
FAG K594-592-A-XL tapered roller bearings
FAG K594-592-A-XL bearing, tapered roller bearings in inch sizes, Dimensions: 95.25mm x 152.4mm x 39.688mm, Cr: 215000N, C0r: 285000N, Limiting Speeds:4600 1/min.
- Brand: FAG
- Inside Diameter: 95.25 mm
- Outside Diameter: 152.4 mm
- Width: 39.688 mm
- Basic dynamic load rating: 215 kN
- Basic static load rating: 215 kN
