Nodes supply tapered roller bearings in single, double and four-row tapered roller bearing configurations. We have a a wide range of taper roller bearings in stock, brand: SKF, NSK, FAG, TIMKEN, NTN.
Tapered roller bearings consist of four basic components including: the cone (inner ring), the cup (outer ring), tapered rollers, and a cage (roller retainer).

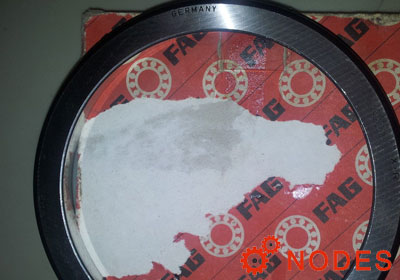

FAG K594-592-A-XL tapered roller bearings
FAG K594-592-A-XL bearing, tapered roller bearings in inch sizes, Dimensions: 95.25mm x 152.4mm x 39.688mm, Cr: 215000N, C0r: 285000N, Limiting Speeds:4600 1/min.
- Brand: FAG
- Inside Diameter: 95.25 mm
- Outside Diameter: 152.4 mm
- Width: 39.688 mm
- Basic dynamic load rating: 215 kN
- Basic static load rating: 215 kN
FAG K594-A-592-A tapered roller bearings
FAG K594-A-592-A bearing, tapered roller bearings in inch sizes, Dimensions: 95.25mm x 152.4mm x 39.688mm, Cr: 182000N, C0r: 285000N, Limiting Speeds:4600 1/min.
- Brand: FAG
- Inside Diameter: 95.25 mm
- Outside Diameter: 152.4 mm
- Width: 39.688 mm
- Basic dynamic load rating: 182 kN
- Basic static load rating: 182 kN
FAG K594-A-592-A-XL tapered roller bearings
FAG K594-A-592-A-XL bearing, tapered roller bearings in inch sizes, Dimensions: 95.25mm x 152.4mm x 39.688mm, Cr: 215000N, C0r: 285000N, Limiting Speeds:4600 1/min.
- Brand: FAG
- Inside Diameter: 95.25 mm
- Outside Diameter: 152.4 mm
- Width: 39.688 mm
- Basic dynamic load rating: 215 kN
- Basic static load rating: 215 kN
TIMKEN 2684-2620 tapered roller bearings
TIMKEN 2684-2620 bearing, Tapered roller bearings, Dimensions:22.225mm(0.8750 in) x 63.101mm(2.4843 in) x 23.818mm(0.9377 in)
- Brand: TIMKEN
- Inside Diameter: 22.225 mm
- Outside Diameter: 63.101 mm
- Width: 23.818 mm
- Basic dynamic load rating: 76.6 kN
- Basic static load rating: 76.6 kN
TIMKEN 2684-2630 tapered roller bearings
TIMKEN 2684-2630 bearing, Tapered roller bearings, Dimensions:22.225mm(0.8750 in) x 63.101mm(2.4843 in) x 23.818mm(0.9377 in)
- Brand: TIMKEN
- Inside Diameter: 22.225 mm
- Outside Diameter: 63.101 mm
- Width: 23.818 mm
- Basic dynamic load rating: 76.6 kN
- Basic static load rating: 76.6 kN
TIMKEN 2684-2631 tapered roller bearings
TIMKEN 2684-2631 bearing, Tapered roller bearings, Dimensions:22.225mm(0.8750 in) x 66.421mm(2.6150 in) x 23.813mm(0.9375 in)
- Brand: TIMKEN
- Inside Diameter: 22.225 mm
- Outside Diameter: 66.421 mm
- Width: 23.813 mm
- Basic dynamic load rating: 76.6 kN
- Basic static load rating: 76.6 kN
TIMKEN L44640-L44610 tapered roller bearings
TIMKEN L44640-L44610 bearing, Tapered roller bearings, Dimensions:23.813mm(0.9375 in) x 50.292mm(1.9800 in) x 14.224mm(0.5600 in)
- Brand: TIMKEN
- Inside Diameter: 23.813 mm
- Outside Diameter: 50.292 mm
- Width: 14.224 mm
- Basic dynamic load rating: 35.6 kN
- Basic static load rating: 35.6 kN
TIMKEN 3162-3120 tapered roller bearings
TIMKEN 3162-3120 bearing, Tapered roller bearings, Dimensions:23.813mm(0.9375 in) x 72.626mm(2.8593 in) x 39.741mm(1.5646 in)
- Brand: TIMKEN
- Inside Diameter: 23.813 mm
- Outside Diameter: 72.626 mm
- Width: 39.741 mm
- Basic dynamic load rating: 94.8 kN
- Basic static load rating: 94.8 kN
TIMKEN 17098-17244A tapered roller bearings
TIMKEN 17098-17244A bearing, Tapered roller bearings, Dimensions:24.981mm(0.9835 in) x 61.981mm(2.4402 in) x 16.002mm(0.6300 in)
- Brand: TIMKEN
- Inside Diameter: 24.981 mm
- Outside Diameter: 61.981 mm
- Width: 16.002 mm
- Basic dynamic load rating: 43.2 kN
- Basic static load rating: 43.2 kN
TIMKEN 17098-17244 tapered roller bearings
TIMKEN 17098-17244 bearing, Tapered roller bearings, Dimensions:24.981mm(0.9835 in) x 61.999mm(2.4409 in) x 16.002mm(0.6300 in)
- Brand: TIMKEN
- Inside Diameter: 24.981 mm
- Outside Diameter: 61.999 mm
- Width: 16.002 mm
- Basic dynamic load rating: 43.2 kN
- Basic static load rating: 43.2 kN
TIMKEN 07097-07196 tapered roller bearings
TIMKEN 07097-07196 bearing, Tapered roller bearings, Dimensions:25.001mm(0.9843 in) x 50.005mm(1.9687 in) x 13.495mm(0.5313 in)
- Brand: TIMKEN
- Inside Diameter: 25.001 mm
- Outside Diameter: 50.005 mm
- Width: 13.495 mm
- Basic dynamic load rating: 29.1 kN
- Basic static load rating: 29.1 kN
TIMKEN 07097-07210X tapered roller bearings
TIMKEN 07097-07210X bearing, Tapered roller bearings, Dimensions:25.001mm(0.9843 in) x 50.8mm(2 in) x 15.011mm(0.5910 in)
- Brand: TIMKEN
- Inside Diameter: 25.001 mm
- Outside Diameter: 50.8 mm
- Width: 15.011 mm
- Basic dynamic load rating: 29.1 kN
- Basic static load rating: 29.1 kN
TIMKEN 07097-07205X tapered roller bearings
TIMKEN 07097-07205X bearing, Tapered roller bearings, Dimensions:25.001mm(0.9843 in) x 51.986mm(2.0467 in) x 16.251mm(0.6398 in)
- Brand: TIMKEN
- Inside Diameter: 25.001 mm
- Outside Diameter: 51.986 mm
- Width: 16.251 mm
- Basic dynamic load rating: 29.1 kN
- Basic static load rating: 29.1 kN
TIMKEN 07097-07204 tapered roller bearings
TIMKEN 07097-07204 bearing, Tapered roller bearings, Dimensions:25.001mm(0.9843 in) x 51.994mm(2.0470 in) x 15.011mm(0.5910 in)
- Brand: TIMKEN
- Inside Diameter: 25.001 mm
- Outside Diameter: 51.994 mm
- Width: 15.011 mm
- Basic dynamic load rating: 29.1 kN
- Basic static load rating: 29.1 kN
TIMKEN 07097-07205 tapered roller bearings
TIMKEN 07097-07205 bearing, Tapered roller bearings, Dimensions:25.001mm(0.9843 in) x 51.999mm(2.0472 in) x 15.011mm(0.5910 in)
- Brand: TIMKEN
- Inside Diameter: 25.001 mm
- Outside Diameter: 51.999 mm
- Width: 15.011 mm
- Basic dynamic load rating: 29.1 kN
- Basic static load rating: 29.1 kN
TIMKEN L44642-L44610 tapered roller bearings
TIMKEN L44642-L44610 bearing, Tapered roller bearings, Dimensions:25.400mm(1.0000 in) x 50.292mm(1.9800 in) x 14.224mm(0.5600 in)
- Brand: TIMKEN
- Inside Diameter: 25.4 mm
- Outside Diameter: 50.292 mm
- Width: 14.224 mm
- Basic dynamic load rating: 35.6 kN
- Basic static load rating: 35.6 kN
TIMKEN L44643X-L44610 tapered roller bearings
TIMKEN L44643X-L44610 bearing, Tapered roller bearings, Dimensions:25.400mm(1.0000 in) x 50.292mm(1.9800 in) x 14.224mm(0.5600 in)
- Brand: TIMKEN
- Inside Diameter: 25.4 mm
- Outside Diameter: 50.292 mm
- Width: 14.224 mm
- Basic dynamic load rating: 35.6 kN
- Basic static load rating: 35.6 kN
TIMKEN L44643-L44610 tapered roller bearings
TIMKEN L44643-L44610 bearing, Tapered roller bearings, Dimensions:25.400mm(1.0000 in) x 50.292mm(1.9800 in) x 14.224mm(0.5600 in)
- Brand: TIMKEN
- Inside Diameter: 25.4 mm
- Outside Diameter: 50.292 mm
- Width: 14.224 mm
- Basic dynamic load rating: 35.6 kN
- Basic static load rating: 35.6 kN
SKF 30214 tapered roller bearings
Nodes have SKF 30214 bearings in stock, Spherical roller bearings, series: 3EB, Dimensions: 70mm x 125mm x 26.25mm, Limiting Speeds:5300 r/min.
- Brand: SKF
- Inside Diameter: 70 mm
- Outside Diameter: 125 mm
- Width: 26.25 mm
- Basic dynamic load rating: 155 kN
- Basic static load rating: 155 kN
SKF 30212 tapered roller bearings
Nodes have SKF 30212 bearings in stock, Spherical roller bearings, series: 3EB, Dimensions: 60mm x 110mm x 23.75mm, Limiting Speeds:6000 r/min.
- Brand: SKF
- Inside Diameter: 60 mm
- Outside Diameter: 110 mm
- Width: 23.75 mm
- Basic dynamic load rating: 120 kN
- Basic static load rating: 120 kN
SKF 30312 tapered roller bearings
Nodes have SKF 30312 bearings in stock, Spherical roller bearings, series: 2FB, Dimensions: 60mm x 130mm x 33.5mm, Limiting Speeds:5300 r/min.
- Brand: SKF
- Inside Diameter: 60 mm
- Outside Diameter: 130 mm
- Width: 33.5 mm
- Basic dynamic load rating: 208 kN
- Basic static load rating: 208 kN

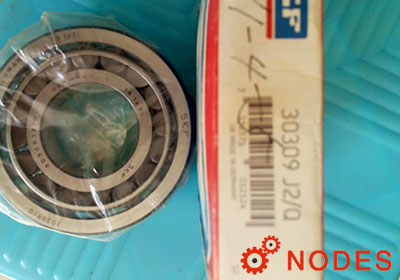

SKF 30309 tapered roller bearings
Nodes have SKF 30309 bearings in stock, Spherical roller bearings, series: 2FB, Dimensions: 45mm x 100mm x 27.25mm, Limiting Speeds:7000 r/min.
- Brand: SKF
- Inside Diameter: 45 mm
- Outside Diameter: 100 mm
- Width: 27.25 mm
- Basic dynamic load rating: 132 kN
- Basic static load rating: 132 kN

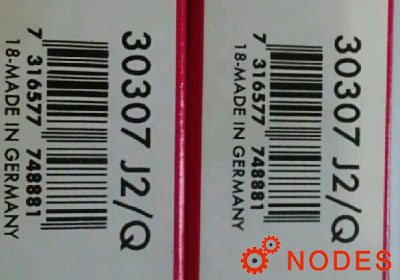

SKF 30307 tapered roller bearings
Nodes have SKF 30307 bearings in stock, Spherical roller bearings, series: 2FB, Dimensions: 35mm x 80mm x 22.75mm, Limiting Speeds:9000 r/min.
- Brand: SKF
- Inside Diameter: 35 mm
- Outside Diameter: 80 mm
- Width: 22.75 mm
- Basic dynamic load rating: 88.9 kN
- Basic static load rating: 88.9 kN
FAG 31310-A-N11CA-A60-100 tapered roller bearings
FAG 31310-A-N11CA-A60-100 bearing, tapered roller bearings, Dimensions: 50mm x 110mm x 58.5mm, Cr: 189000N, C0r: 250000N, Limiting Speeds:6500 1/min.
- Brand: FAG
- Inside Diameter: 50 mm
- Outside Diameter: 110 mm
- Width: 58.5 mm
- Basic dynamic load rating: 189 kN
- Basic static load rating: 189 kN
TIMKEN 15578-15520 tapered roller bearings
TIMKEN 15578-15520 bearing, Tapered roller bearings, Dimensions:25.400mm(1.0000 in) x 57.150mm(2.2500 in) x 17.463mm(0.6875 in)
- Brand: TIMKEN
- Inside Diameter: 25.4 mm
- Outside Diameter: 57.15 mm
- Width: 17.463 mm
- Basic dynamic load rating: 54.5 kN
- Basic static load rating: 54.5 kN
TIMKEN 15578-15520RB tapered roller bearings
TIMKEN 15578-15520RB bearing, Tapered roller bearings, Dimensions:25.400mm(1.0000 in) x 57.150mm(2.2500 in) x 17.465mm(0.6876 in)
- Brand: TIMKEN
- Inside Diameter: 25.4 mm
- Outside Diameter: 57.15 mm
- Width: 17.465 mm
- Basic dynamic load rating: 54.5 kN
- Basic static load rating: 54.5 kN
TIMKEN M84548-M84510 tapered roller bearings
TIMKEN M84548-M84510 bearing, Tapered roller bearings, Dimensions:25.400mm(1.0000 in) x 57.150mm(2.2500 in) x 19.431mm(0.7650 in)
- Brand: TIMKEN
- Inside Diameter: 25.4 mm
- Outside Diameter: 57.15 mm
- Width: 19.431 mm
- Basic dynamic load rating: 48.5 kN
- Basic static load rating: 48.5 kN
TIMKEN 15578-15522A tapered roller bearings
TIMKEN 15578-15522A bearing, Tapered roller bearings, Dimensions:25.400mm(1.0000 in) x 59.530mm(2.3437 in) x 19.449mm(0.7657 in)
- Brand: TIMKEN
- Inside Diameter: 25.4 mm
- Outside Diameter: 59.53 mm
- Width: 19.449 mm
- Basic dynamic load rating: 54.5 kN
- Basic static load rating: 54.5 kN
SKF 30204 tapered roller bearings
Nodes have SKF 30204 bearings in stock, Spherical roller bearings, series: 2DB, Dimensions: 20mm x 47mm x 15.25mm, Limiting Speeds:15000 r/min.
- Brand: SKF
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 15.25 mm
- Basic dynamic load rating: 34.1 kN
- Basic static load rating: 34.1 kN
SKF 30209 tapered roller bearings
Nodes have SKF 30209 bearings in stock, Spherical roller bearings, series: 3DB, Dimensions: 45mm x 85mm x 20.75mm, Limiting Speeds:8000 r/min.
- Brand: SKF
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 20.75 mm
- Basic dynamic load rating: 81.6 kN
- Basic static load rating: 81.6 kN
SKF 30215 tapered roller bearings
Nodes have SKF 30215 bearings in stock, Spherical roller bearings, series: 4DB, Dimensions: 75mm x 130mm x 27.25mm, Limiting Speeds:5000 r/min.
- Brand: SKF
- Inside Diameter: 75 mm
- Outside Diameter: 130 mm
- Width: 27.25 mm
- Basic dynamic load rating: 171 kN
- Basic static load rating: 171 kN
SKF 30219 tapered roller bearings
Nodes have SKF 30219 bearings in stock, Spherical roller bearings, series: 3FB, Dimensions: 95mm x 170mm x 34.5mm, Limiting Speeds:3800 r/min.
- Brand: SKF
- Inside Diameter: 95 mm
- Outside Diameter: 170 mm
- Width: 34.5 mm
- Basic dynamic load rating: 266 kN
- Basic static load rating: 266 kN
SKF 30228 tapered roller bearings
Nodes have SKF 30228 bearings in stock, Spherical roller bearings, series: 4FB, Dimensions: 140mm x 250mm x 45.75mm, Limiting Speeds:2600 r/min.
- Brand: SKF
- Inside Diameter: 140 mm
- Outside Diameter: 250 mm
- Width: 45.75 mm
- Basic dynamic load rating: 451 kN
- Basic static load rating: 451 kN

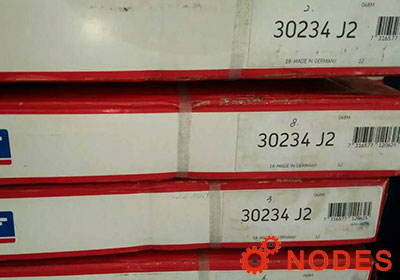

SKF 30234 tapered roller bearings
Nodes have SKF 30234 bearings in stock, Spherical roller bearings, series: 4GB, Dimensions: 170mm x 310mm x 57mm, Limiting Speeds:2000 r/min.
- Brand: SKF
- Inside Diameter: 170 mm
- Outside Diameter: 310 mm
- Width: 57 mm
- Basic dynamic load rating: 657 kN
- Basic static load rating: 657 kN

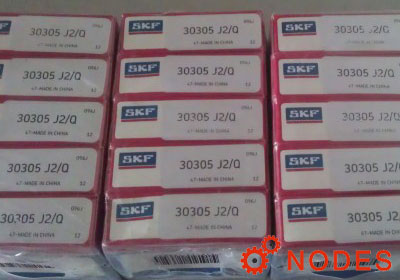

SKF 30305 tapered roller bearings
Nodes have SKF 30305 bearings in stock, Spherical roller bearings, series: 2FB, Dimensions: 25mm x 62mm x 18.25mm, Limiting Speeds:12000 r/min.
- Brand: SKF
- Inside Diameter: 25 mm
- Outside Diameter: 62 mm
- Width: 18.25 mm
- Basic dynamic load rating: 55.3 kN
- Basic static load rating: 55.3 kN

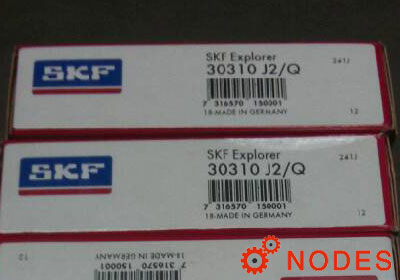

SKF 30310 tapered roller bearings
Nodes have SKF 30310 bearings in stock, Spherical roller bearings, series: 2FB, Dimensions: 50mm x 110mm x 29.25mm, Limiting Speeds:6300 r/min.
- Brand: SKF
- Inside Diameter: 50 mm
- Outside Diameter: 110 mm
- Width: 29.25 mm
- Basic dynamic load rating: 154 kN
- Basic static load rating: 154 kN

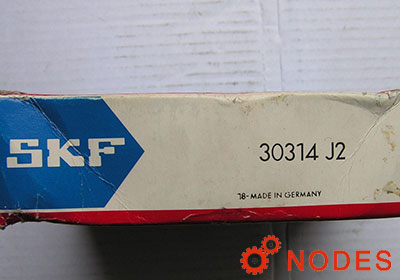

SKF 30314 tapered roller bearings
Nodes have SKF 30314 bearings in stock, Spherical roller bearings, series: 2GB, Dimensions: 70mm x 150mm x 38mm, Limiting Speeds:4500 r/min.
- Brand: SKF
- Inside Diameter: 70 mm
- Outside Diameter: 150 mm
- Width: 38 mm
- Basic dynamic load rating: 271 kN
- Basic static load rating: 271 kN

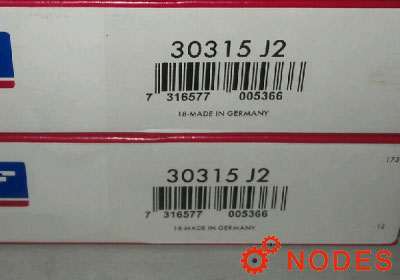

SKF 30315 tapered roller bearings
Nodes have SKF 30315 bearings in stock, Spherical roller bearings, series: 2GB, Dimensions: 75mm x 160mm x 40mm, Limiting Speeds:4300 r/min.
- Brand: SKF
- Inside Diameter: 75 mm
- Outside Diameter: 160 mm
- Width: 40 mm
- Basic dynamic load rating: 301 kN
- Basic static load rating: 301 kN
