Nodes supply tapered roller bearings in single, double and four-row tapered roller bearing configurations. We have a a wide range of taper roller bearings in stock, brand: SKF, NSK, FAG, TIMKEN, NTN.
Tapered roller bearings consist of four basic components including: the cone (inner ring), the cup (outer ring), tapered rollers, and a cage (roller retainer).
NSK HR32015XJ roller bearings | 75x115x25 mm
NSK HR32015XJ bearing, 4CC(iso355 dimensions series approx), single row tapered roller bearing, Dimensions: 75mm x 115mm x 25mm, Limiting Speeds:4000.
- Brand: NSK
- Inside Diameter: 75 mm
- Outside Diameter: 115 mm
- Width: 25 mm
- Basic dynamic load rating: 109 kN
- Basic static load rating: 109 kN
NSK HR30211J roller bearings | 55x100x22.75 mm
NSK HR30211J bearing, 3DB(iso355 dimensions series approx), single row tapered roller bearing, Dimensions: 55mm x 100mm x 22.75mm, Limiting Speeds:5000.
- Brand: NSK
- Inside Diameter: 55 mm
- Outside Diameter: 100 mm
- Width: 22.75 mm
- Basic dynamic load rating: 94.5 kN
- Basic static load rating: 94.5 kN
FAG 32317-XL tapered roller bearings
FAG 32317-XL bearing, tapered roller bearings, Dimensions: 85mm x 180mm x 63.5mm, Cr: 510000N, C0r: 580000N, Limiting Speeds:3900 1/min.
- Brand: FAG
- Inside Diameter: 85 mm
- Outside Diameter: 180 mm
- Width: 63.5 mm
- Basic dynamic load rating: 510 kN
- Basic static load rating: 510 kN
FAG 32313-A tapered roller bearings
FAG 32313-A bearing, tapered roller bearings, Dimensions: 65mm x 140mm x 51mm, Cr: 270000N, C0r: 350000N, Limiting Speeds:5100 1/min.
- Brand: FAG
- Inside Diameter: 65 mm
- Outside Diameter: 140 mm
- Width: 51 mm
- Basic dynamic load rating: 270 kN
- Basic static load rating: 270 kN
NSK HR32214J roller bearings | 70x125x33.25 mm
NSK HR32214J bearing, 3EC(iso355 dimensions series approx), single row tapered roller bearing, Dimensions: 70mm x 125mm x 33.25mm, Limiting Speeds:4000.
- Brand: NSK
- Inside Diameter: 70 mm
- Outside Diameter: 125 mm
- Width: 33.25 mm
- Basic dynamic load rating: 157 kN
- Basic static load rating: 157 kN
NSK HR33117J roller bearings | 85x140x41 mm
NSK HR33117J bearing, 3DE(iso355 dimensions series approx), single row tapered roller bearing, Dimensions: 85mm x 140mm x 41mm, Limiting Speeds:3400.
- Brand: NSK
- Inside Diameter: 85 mm
- Outside Diameter: 140 mm
- Width: 41 mm
- Basic dynamic load rating: 230 kN
- Basic static load rating: 230 kN
NSK HR30217J roller bearings | 85x150x30.5 mm
NSK HR30217J bearing, 3EB(iso355 dimensions series approx), single row tapered roller bearing, Dimensions: 85mm x 150mm x 30.5mm, Limiting Speeds:3200.
- Brand: NSK
- Inside Diameter: 85 mm
- Outside Diameter: 150 mm
- Width: 30.5 mm
- Basic dynamic load rating: 184 kN
- Basic static load rating: 184 kN
NSK HR30218J roller bearings | 90x160x32.5 mm
NSK HR30218J bearing, 3FB(iso355 dimensions series approx), single row tapered roller bearing, Dimensions: 90mm x 160mm x 32.5mm, Limiting Speeds:3000.
- Brand: NSK
- Inside Diameter: 90 mm
- Outside Diameter: 160 mm
- Width: 32.5 mm
- Basic dynamic load rating: 201 kN
- Basic static load rating: 201 kN
NSK HR32320J roller bearings | 100x215x77.5 mm
NSK HR32320J bearing, 2GD(iso355 dimensions series approx), single row tapered roller bearing, Dimensions: 100mm x 215mm x 77.5mm, Limiting Speeds:2400.
- Brand: NSK
- Inside Diameter: 100 mm
- Outside Diameter: 215 mm
- Width: 77.5 mm
- Basic dynamic load rating: 565 kN
- Basic static load rating: 565 kN
TIMKEN 19152D - 19262 Tapered Roller Bearings
TIMKEN 19152D - 19262 bearing, Tapered Roller Bearings - TDI (Tapered Double Inner), Dimensions:38.1mm x 66.675mm x 49.200mm, Dynamic Load Rating: 88.299999999999997kN, Static Load Rating: 22.899999999999999kN
- Brand: TIMKEN
- Inside Diameter: 38.1 mm
- Outside Diameter: 66.675 mm
- Width: 49.2 mm
- Basic dynamic load rating: 88.3 kN
- Basic static load rating: 88.3 kN
TIMKEN 19152D - 19268 Tapered Roller Bearings
TIMKEN 19152D - 19268 bearing, Tapered Roller Bearings - TDI (Tapered Double Inner), Dimensions:38.1mm x 68.263mm x 49.200mm, Dynamic Load Rating: 88.299999999999997kN, Static Load Rating: 22.899999999999999kN
- Brand: TIMKEN
- Inside Diameter: 38.1 mm
- Outside Diameter: 68.263 mm
- Width: 49.2 mm
- Basic dynamic load rating: 88.3 kN
- Basic static load rating: 88.3 kN
TIMKEN 19152D - 19269 Tapered Roller Bearings
TIMKEN 19152D - 19269 bearing, Tapered Roller Bearings - TDI (Tapered Double Inner), Dimensions:38.1mm x 68.263mm x 49.200mm, Dynamic Load Rating: 88.299999999999997kN, Static Load Rating: 22.899999999999999kN
- Brand: TIMKEN
- Inside Diameter: 38.1 mm
- Outside Diameter: 68.263 mm
- Width: 49.2 mm
- Basic dynamic load rating: 88.3 kN
- Basic static load rating: 88.3 kN
TIMKEN 19152D - 19282 Tapered Roller Bearings
TIMKEN 19152D - 19282 bearing, Tapered Roller Bearings - TDI (Tapered Double Inner), Dimensions:38.1mm x 71.438mm x 49.200mm, Dynamic Load Rating: 88.299999999999997kN, Static Load Rating: 22.899999999999999kN
- Brand: TIMKEN
- Inside Diameter: 38.1 mm
- Outside Diameter: 71.438 mm
- Width: 49.2 mm
- Basic dynamic load rating: 88.3 kN
- Basic static load rating: 88.3 kN
TIMKEN 19152D - 19281 Tapered Roller Bearings | 38.1x71.438
TIMKEN 19152D - 19281 bearing, Tapered Roller Bearings - TDI (Tapered Double Inner), Dimensions:38.1mm x 71.438mm x 49.200mm, Dynamic Load Rating: 88.299999999999997kN, Static Load Rating: 22.899999999999999kN
- Brand: TIMKEN
- Inside Diameter: 38.1 mm
- Outside Diameter: 71.438 mm
- Width: 49.2 mm
- Basic dynamic load rating: 88.3 kN
- Basic static load rating: 88.3 kN
TIMKEN 19152D - 19283 Tapered Roller Bearings | 38.1x71.999
TIMKEN 19152D - 19283 bearing, Tapered Roller Bearings - TDI (Tapered Double Inner), Dimensions:38.1mm x 71.999mm x 49.200mm, Dynamic Load Rating: 88.299999999999997kN, Static Load Rating: 22.899999999999999kN
- Brand: TIMKEN
- Inside Diameter: 38.1 mm
- Outside Diameter: 71.999 mm
- Width: 49.2 mm
- Basic dynamic load rating: 88.3 kN
- Basic static load rating: 88.3 kN
TIMKEN 19152D - 19283X Tapered Roller Bearings
TIMKEN 19152D - 19283X bearing, Tapered Roller Bearings - TDI (Tapered Double Inner), Dimensions:38.1mm x 71.999mm x 49.200mm, Dynamic Load Rating: 88.299999999999997kN, Static Load Rating: 22.899999999999999kN
- Brand: TIMKEN
- Inside Diameter: 38.1 mm
- Outside Diameter: 71.999 mm
- Width: 49.2 mm
- Basic dynamic load rating: 88.3 kN
- Basic static load rating: 88.3 kN
NTN 4T-6580/6535 bearings | 88.900x161.930x55.100mm
NTN 4T-6580/6535 bearing, Tapered roller bearings (Inch series), Dimensions:88.900mm x 161.930mm x 55.100mm, Dynamic Load Rating: 310kN, Static Load Rating: 460kN
- Brand: NTN
- Inside Diameter: 88.9 mm
- Outside Diameter: 161.93 mm
- Width: 55.1 mm
- Basic dynamic load rating: 310 kN
- Basic static load rating: 310 kN
FAG 30224-A tapered roller bearings
FAG 30224-A bearing, tapered roller bearings, Dimensions: 120mm x 215mm x 43.5mm, Cr: 335000N, C0r: 450000N, Limiting Speeds:3300 1/min.
- Brand: FAG
- Inside Diameter: 120 mm
- Outside Diameter: 215 mm
- Width: 43.5 mm
- Basic dynamic load rating: 335 kN
- Basic static load rating: 335 kN
FAG 30208-A tapered roller bearings
FAG 30208-A bearing, tapered roller bearings, Dimensions: 40mm x 80mm x 19.75mm, Cr: 61000N, C0r: 67000N, Limiting Speeds:9600 1/min.
- Brand: FAG
- Inside Diameter: 40 mm
- Outside Diameter: 80 mm
- Width: 19.75 mm
- Basic dynamic load rating: 61 kN
- Basic static load rating: 61 kN
FAG 30207-A tapered roller bearings
FAG 30207-A bearing, tapered roller bearings, Dimensions: 35mm x 72mm x 18.25mm, Cr: 54000N, C0r: 59000N, Limiting Speeds:10700 1/min.
- Brand: FAG
- Inside Diameter: 35 mm
- Outside Diameter: 72 mm
- Width: 18.25 mm
- Basic dynamic load rating: 54 kN
- Basic static load rating: 54 kN
FAG 30308-A tapered roller bearings
FAG 30308-A bearing, tapered roller bearings, Dimensions: 40mm x 90mm x 25.25mm, Cr: 91000N, C0r: 102000N, Limiting Speeds:8500 1/min.
- Brand: FAG
- Inside Diameter: 40 mm
- Outside Diameter: 90 mm
- Width: 25.25 mm
- Basic dynamic load rating: 91 kN
- Basic static load rating: 91 kN
FAG 30314-A tapered roller bearings
FAG 30314-A bearing, tapered roller bearings, Dimensions: 70mm x 150mm x 38mm, Cr: 223000N, C0r: 260000N, Limiting Speeds:4900 1/min.
- Brand: FAG
- Inside Diameter: 70 mm
- Outside Diameter: 150 mm
- Width: 38 mm
- Basic dynamic load rating: 223 kN
- Basic static load rating: 223 kN
FAG 31310-A tapered roller bearings
FAG 31310-A bearing, tapered roller bearings, Dimensions: 50mm x 110mm x 29.25mm, Cr: 111000N, C0r: 125000N, Limiting Speeds:6500 1/min.
- Brand: FAG
- Inside Diameter: 50 mm
- Outside Diameter: 110 mm
- Width: 29.25 mm
- Basic dynamic load rating: 111 kN
- Basic static load rating: 111 kN
FAG 31319-A tapered roller bearings
FAG 31319-A bearing, tapered roller bearings, Dimensions: 95mm x 200mm x 49.5mm, Cr: 305000N, C0r: 370000N, Limiting Speeds:3500 1/min.
- Brand: FAG
- Inside Diameter: 95 mm
- Outside Diameter: 200 mm
- Width: 49.5 mm
- Basic dynamic load rating: 305 kN
- Basic static load rating: 305 kN
FAG 31320-X tapered roller bearings
FAG 31320-X bearing, tapered roller bearings, Dimensions: 100mm x 215mm x 56.5mm, Cr: 385000N, C0r: 480000N, Limiting Speeds:3200 1/min.
- Brand: FAG
- Inside Diameter: 100 mm
- Outside Diameter: 215 mm
- Width: 56.5 mm
- Basic dynamic load rating: 385 kN
- Basic static load rating: 385 kN
FAG 31322-X-XL tapered roller bearings
FAG 31322-X-XL bearing, tapered roller bearings, Dimensions: 110mm x 240mm x 63mm, Cr: 550000N, C0r: 590000N, Limiting Speeds:2850 1/min.
- Brand: FAG
- Inside Diameter: 110 mm
- Outside Diameter: 240 mm
- Width: 63 mm
- Basic dynamic load rating: 550 kN
- Basic static load rating: 550 kN
FAG 320/28-X tapered roller bearings
FAG 320/28-X bearing, tapered roller bearings, Dimensions: 28mm x 52mm x 16mm, Cr: 34000N, C0r: 40500N, Limiting Speeds:14200 1/min.
- Brand: FAG
- Inside Diameter: 28 mm
- Outside Diameter: 52 mm
- Width: 16 mm
- Basic dynamic load rating: 34 kN
- Basic static load rating: 34 kN
FAG 32006-X tapered roller bearings
FAG 32006-X bearing, tapered roller bearings, Dimensions: 30mm x 55mm x 17mm, Cr: 38500N, C0r: 46500N, Limiting Speeds:13300 1/min.
- Brand: FAG
- Inside Diameter: 30 mm
- Outside Diameter: 55 mm
- Width: 17 mm
- Basic dynamic load rating: 38.5 kN
- Basic static load rating: 38.5 kN
FAG 32008-XA tapered roller bearings
FAG 32008-XA bearing, tapered roller bearings, Dimensions: 40mm x 68mm x 19mm, Cr: 53000N, C0r: 71000N, Limiting Speeds:10600 1/min.
- Brand: FAG
- Inside Diameter: 40 mm
- Outside Diameter: 68 mm
- Width: 19 mm
- Basic dynamic load rating: 53 kN
- Basic static load rating: 53 kN
FAG 32017-X-XL tapered roller bearings
FAG 32017-X-XL bearing, tapered roller bearings, Dimensions: 85mm x 130mm x 29mm, Cr: 167000N, C0r: 224000N, Limiting Speeds:5200 1/min.
- Brand: FAG
- Inside Diameter: 85 mm
- Outside Diameter: 130 mm
- Width: 29 mm
- Basic dynamic load rating: 167 kN
- Basic static load rating: 167 kN
FAG 32020-X tapered roller bearings
FAG 32020-X bearing, tapered roller bearings, Dimensions: 100mm x 150mm x 32mm, Cr: 173000N, C0r: 285000N, Limiting Speeds:4500 1/min.
- Brand: FAG
- Inside Diameter: 100 mm
- Outside Diameter: 150 mm
- Width: 32 mm
- Basic dynamic load rating: 173 kN
- Basic static load rating: 173 kN
FAG 32024-X tapered roller bearings
FAG 32024-X bearing, tapered roller bearings, Dimensions: 120mm x 180mm x 38mm, Cr: 250000N, C0r: 420000N, Limiting Speeds:3700 1/min.
- Brand: FAG
- Inside Diameter: 120 mm
- Outside Diameter: 180 mm
- Width: 38 mm
- Basic dynamic load rating: 250 kN
- Basic static load rating: 250 kN
FAG 32028-X-XL tapered roller bearings
FAG 32028-X-XL bearing, tapered roller bearings, Dimensions: 140mm x 210mm x 45mm, Cr: 400000N, C0r: 590000N, Limiting Speeds:3150 1/min.
- Brand: FAG
- Inside Diameter: 140 mm
- Outside Diameter: 210 mm
- Width: 45 mm
- Basic dynamic load rating: 400 kN
- Basic static load rating: 400 kN
FAG 32034-X-XL tapered roller bearings
FAG 32034-X-XL bearing, tapered roller bearings, Dimensions: 170mm x 260mm x 57mm, Cr: 600000N, C0r: 880000N, Limiting Speeds:2500 1/min.
- Brand: FAG
- Inside Diameter: 170 mm
- Outside Diameter: 260 mm
- Width: 57 mm
- Basic dynamic load rating: 600 kN
- Basic static load rating: 600 kN

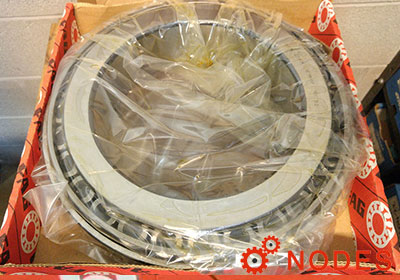

FAG 32040-X-XL tapered roller bearings
FAG 32040-X-XL bearing, tapered roller bearings, Dimensions: 200mm x 310mm x 70mm, Cr: 900000N, C0r: 1380000N, Limiting Speeds:2090 1/min.
- Brand: FAG
- Inside Diameter: 200 mm
- Outside Diameter: 310 mm
- Width: 70 mm
- Basic dynamic load rating: 900 kN
- Basic static load rating: 900 kN
FAG 32204-XL tapered roller bearings
FAG 32204-XL bearing, tapered roller bearings, Dimensions: 20mm x 47mm x 19.25mm, Cr: 40500N, C0r: 36500N, Limiting Speeds:16700 1/min.
- Brand: FAG
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 19.25 mm
- Basic dynamic load rating: 40.5 kN
- Basic static load rating: 40.5 kN
FAG 32206-A tapered roller bearings
FAG 32206-A bearing, tapered roller bearings, Dimensions: 30mm x 62mm x 21.25mm, Cr: 53000N, C0r: 62000N, Limiting Speeds:12100 1/min.
- Brand: FAG
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 21.25 mm
- Basic dynamic load rating: 53 kN
- Basic static load rating: 53 kN
FAG 32207-A tapered roller bearings
FAG 32207-A bearing, tapered roller bearings, Dimensions: 35mm x 72mm x 24.25mm, Cr: 71000N, C0r: 84000N, Limiting Speeds:10300 1/min.
- Brand: FAG
- Inside Diameter: 35 mm
- Outside Diameter: 72 mm
- Width: 24.25 mm
- Basic dynamic load rating: 71 kN
- Basic static load rating: 71 kN
