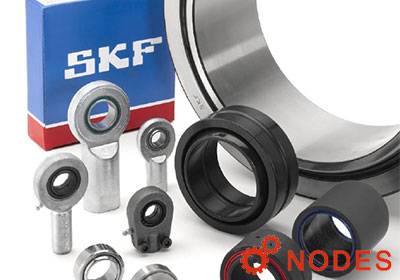

SKF plain bearings-spherical plain bearings, rod ends, bushings, thrust washers
As a SKF bearing distributor, Nodes bearings supplies SKF plain bearings, including spherical plain bearings, rod ends and bush bearings. These SKF bearings are in various designs and with different sliding contact surface combinations. They are:
SKF spherical plain bearings: radial spherical plain bearings (requiring maintenance and maintenance-free), angular contact, and thrust spherical plain bearings
SKF rod ends requiring maintenance and maintenance-free.
SKF bushings, composite thrust washers, and composite strips
SKF SIL10E rod ends | d:10mm, d2:30mm, l4:60mm
Nodes have SKF SIL10E bearings in stock, Rod ends with a female thread, Dimensions: d:10mm, d2:30mm, l4:60mm, Basic dynamic load rating: 8.15KN, static load rating: 19KN, Mass: 0.069 kg.
- Brand: SKF
- Inside Diameter: 10 mm
- Outside Diameter: 30 mm
- Width: 60 mm
- Basic dynamic load rating: 8.15 kN
- Basic static load rating: 8.15 kN
SKF PWM 100115100 bushings | dimension 100x115x100mm
Nodes have SKF PWM 100115100 bushings in stock, SKF filament wound bushings, SKF PWM 100115100 bushings dimensions: 100mm x 115mm x 100mm.
- Brand: SKF
- Inside Diameter: 100 mm
- Outside Diameter: 115 mm
- Width: 100 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
SKF PWM 303630 bushings | Dimension 30x36x30mm
Nodes have SKF PWM 303630 bushings in stock, SKF filament wound bushings, SKF PWM 303630 bushings dimensions: 30mm x 36mm x 30mm.
- Brand: none
- Inside Diameter: 30 mm
- Outside Diameter: 36 mm
- Width: 30 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
SKF PRMF 404425 bushing
Nodes have SKF PRMF 404425 bushings in stock, wrapped bronze bushings, PRMF 404425 bushings dimensions: 20 x 23 x 20mm.
- Brand: SKF
- Inside Diameter: 40 mm
- Outside Diameter: 44 mm
- Width: 25 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
SKF PSMF 101616 A51 bushings
Nodes have SKF PSMF101616A51 bushings in stock, sintered bronze bushings, PSMF101616A51 bushings dimensions: 10 x 16 x 16mm.
- Brand: SKF
- Inside Diameter: 10 mm
- Outside Diameter: 16 mm
- Width: 16 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
SKF PRMF 202320 bushings
Nodes have SKF PRMF 202320 bushings in stock, wrapped bronze bushings, PRMF 202320 bushings dimensions: 20 x 23 x 20mm.
- Brand: SKF
- Inside Diameter: 20 mm
- Outside Diameter: 23 mm
- Width: 20 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
SKF PRM353930 bushing bearing | Dimension 35x39x30mm
Nodes have SKF PRM 353930 bushings in stock, wrapped bronze bushings, PRM 353930 bushings' dimensions: 35 x 39 x 30mm.
- Brand: SKF
- Inside Diameter: 35 mm
- Outside Diameter: 39 mm
- Width: 30 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
SKF PCM101212E bushings | 10mm x 12mm x 12mm
Nodes have SKF PCM101212E bearings in stock, bushings, Dimensions: 10mm x 12mm x 12mm, Basic dynamic load rating: 9.65KN, static load rating: 30KN, Mass: 0.003 kg.
- Brand: SKF
- Inside Diameter: 10 mm
- Outside Diameter: 12 mm
- Width: 12 mm
- Basic dynamic load rating: 9.65 kN
- Basic static load rating: 9.65 kN
SKF PCM606570E bushings | 60mm x 65mm x 70mm
Nodes have SKF PCM606570E bearings in stock, bushings, Dimensions: 60mm x 65mm x 70mm, Basic dynamic load rating: 335KN, static load rating: 1040KN, Mass: 0.26 kg.
- Brand: SKF
- Inside Diameter: 60 mm
- Outside Diameter: 65 mm
- Width: 70 mm
- Basic dynamic load rating: 335 kN
- Basic static load rating: 335 kN
SKF PCM606540E bushings | 60mm x 65mm x 40mm
Nodes have SKF PCM606540E bearings in stock, bushings, Dimensions: 60mm x 65mm x 40mm, Basic dynamic load rating: 190KN, static load rating: 585KN, Mass: 0.15 kg.
- Brand: SKF
- Inside Diameter: 60 mm
- Outside Diameter: 65 mm
- Width: 40 mm
- Basic dynamic load rating: 190 kN
- Basic static load rating: 190 kN
SKF PCM303430E bushings | 30mm x 34mm x 30mm
Nodes have SKF PCM303430E bearings in stock, bushings, Dimensions: 30mm x 34mm x 30mm, Basic dynamic load rating: 69.5KN, static load rating: 220KN, Mass: 0.045 kg.
- Brand: SKF
- Inside Diameter: 30 mm
- Outside Diameter: 34 mm
- Width: 30 mm
- Basic dynamic load rating: 69.5 kN
- Basic static load rating: 69.5 kN
SKF PCM283220E bushings | 28mm x 32mm x 20mm
Nodes have SKF PCM283220E bearings in stock, bushings, Dimensions: 28mm x 32mm x 20mm, Basic dynamic load rating: 43KN, static load rating: 134KN, Mass: 0.028 kg.
- Brand: SKF
- Inside Diameter: 28 mm
- Outside Diameter: 32 mm
- Width: 20 mm
- Basic dynamic load rating: 43 kN
- Basic static load rating: 43 kN
SKF PCM10010560E bushings | 100mm x 105mm x 60mm
Nodes have SKF PCM10010560E bearings in stock, bushings, Dimensions: 100mm x 105mm x 60mm, Basic dynamic load rating: 475KN, static load rating: 1460KN, Mass: 0.36 kg.
- Brand: SKF
- Inside Diameter: 100 mm
- Outside Diameter: 105 mm
- Width: 60 mm
- Basic dynamic load rating: 475 kN
- Basic static load rating: 475 kN
SKF PCM606520E bushings | 60mm x 65mm x 20mm
Nodes have SKF PCM606520E bearings in stock, bushings, Dimensions: 60mm x 65mm x 20mm, Basic dynamic load rating: 91.5KN, static load rating: 290KN, Mass: 0.075 kg.
- Brand: SKF
- Inside Diameter: 60 mm
- Outside Diameter: 65 mm
- Width: 20 mm
- Basic dynamic load rating: 91.5 kN
- Basic static load rating: 91.5 kN
SKF PCM505540E bushings | 50mm x 55mm x 40mm
Nodes have SKF PCM505540E bearings in stock, bushings, Dimensions: 50mm x 55mm x 40mm, Basic dynamic load rating: 156KN, static load rating: 490KN, Mass: 0.13 kg.
- Brand: SKF
- Inside Diameter: 50 mm
- Outside Diameter: 55 mm
- Width: 40 mm
- Basic dynamic load rating: 156 kN
- Basic static load rating: 156 kN
SKF PCM556040E bushings | 55mm x 60mm x 40mm
Nodes have SKF PCM556040E bearings in stock, bushings, Dimensions: 55mm x 60mm x 40mm, Basic dynamic load rating: 173KN, static load rating: 540KN, Mass: 0.14 kg.
- Brand: SKF
- Inside Diameter: 55 mm
- Outside Diameter: 60 mm
- Width: 40 mm
- Basic dynamic load rating: 173 kN
- Basic static load rating: 173 kN
SKF PCM606570M bushings | 60mm x 65mm x 70mm
Nodes have SKF PCM606570M bearings in stock, bushings, Dimensions: 60mm x 65mm x 70mm, Basic dynamic load rating: 500KN, static load rating: 1040KN, Mass: 0.24 kg.
- Brand: SKF
- Inside Diameter: 60 mm
- Outside Diameter: 65 mm
- Width: 70 mm
- Basic dynamic load rating: 500 kN
- Basic static load rating: 500 kN
SKF PCM606540M bushings | 60mm x 65mm x 40mm
Nodes have SKF PCM606540M bearings in stock, bushings, Dimensions: 60mm x 65mm x 40mm, Basic dynamic load rating: 280KN, static load rating: 585KN, Mass: 0.14 kg.
- Brand: SKF
- Inside Diameter: 60 mm
- Outside Diameter: 65 mm
- Width: 40 mm
- Basic dynamic load rating: 280 kN
- Basic static load rating: 280 kN
SKF PCM182025M bushings | 18mm x 20mm x 25mm
Nodes have SKF PCM182025M bearings in stock, bushings, Dimensions: 18mm x 20mm x 25mm, Basic dynamic load rating: 54KN, static load rating: 112KN, Mass: 0.0084 kg.
- Brand: SKF
- Inside Diameter: 18 mm
- Outside Diameter: 20 mm
- Width: 25 mm
- Basic dynamic load rating: 54 kN
- Basic static load rating: 54 kN
SKF PCM606560M bushings | 60mm x 65mm x 60mm
Nodes have SKF PCM606560M bearings in stock, bushings, Dimensions: 60mm x 65mm x 60mm, Basic dynamic load rating: 425KN, static load rating: 880KN, Mass: 0.21 kg.
- Brand: SKF
- Inside Diameter: 60 mm
- Outside Diameter: 65 mm
- Width: 60 mm
- Basic dynamic load rating: 425 kN
- Basic static load rating: 425 kN
SKF PCM10010550M bushings | 100mm x 105mm x 50mm
Nodes have SKF PCM10010550M bearings in stock, bushings, Dimensions: 100mm x 105mm x 50mm, Basic dynamic load rating: 585KN, static load rating: 1220KN, Mass: 0.28 kg.
- Brand: SKF
- Inside Diameter: 100 mm
- Outside Diameter: 105 mm
- Width: 50 mm
- Basic dynamic load rating: 585 kN
- Basic static load rating: 585 kN
SKF PCM707570M bushings | 70mm x 75mm x 70mm
Nodes have SKF PCM707570M bearings in stock, bushings, Dimensions: 70mm x 75mm x 70mm, Basic dynamic load rating: 585KN, static load rating: 1220KN, Mass: 0.28 kg.
- Brand: SKF
- Inside Diameter: 70 mm
- Outside Diameter: 75 mm
- Width: 70 mm
- Basic dynamic load rating: 585 kN
- Basic static load rating: 585 kN
SKF PCMF 121407 E bush bearings | 12mm x 14mm x 7mm
Nodes have SKF PCMF 121407 E bushings in stock, solid bronze bushings, PCMF 121407 E bushings' dimensions: 12mm x 14mm x 7mm.
- Brand: SKF
- Inside Diameter: 12 mm
- Outside Diameter: 14 mm
- Width: 7 mm
- Basic dynamic load rating: 4.8 kN
- Basic static load rating: 4.8 kN
SKF PBM506050M1G1 bushings | 50*60*50mm
Nodes have SKF PBM506050M1G1 bushings in stock, solid bronze bushings, PBM506050M1G1 bushings' dimensions: 50 x 60 x 50mm.
- Brand: SKF
- Inside Diameter: 50 mm
- Outside Diameter: 60 mm
- Width: 50 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
SKF GE4E spherical plain bearings | 4x12x5mm
Nodes have SKF GE4E bearings in stock, Radial spherical plain bearings, Dimensions: 4mm x 12mm x 5mm, Mass: 0.003 kg.
- Brand: SKF
- Inside Diameter: 4 mm
- Outside Diameter: 12 mm
- Width: 5 mm
- Basic dynamic load rating: 2.04 kN
- Basic static load rating: 2.04 kN
SKF GE10E spherical plain bearings | 10x19x9mm
Nodes have SKF GE10E bearings in stock, Radial spherical plain bearings, Dimensions: 10mm x 19mm x 9mm, Mass: 0.012 kg.
- Brand: SKF
- Inside Diameter: 10 mm
- Outside Diameter: 19 mm
- Width: 9 mm
- Basic dynamic load rating: 8.15 kN
- Basic static load rating: 8.15 kN
SKF GE15ES spherical plain bearings | 15x26x12mm
Nodes have SKF GE15ES bearings in stock, Radial spherical plain bearings, Dimensions: 15mm x 26mm x 12mm, Mass plain bearing: 0.032 kg.
- Brand: SKF
- Inside Diameter: 15 mm
- Outside Diameter: 26 mm
- Width: 12 mm
- Basic dynamic load rating: 17 kN
- Basic static load rating: 17 kN
SKF GE17ES spherical plain bearings | 17x30x14mm
Nodes have SKF GE17ES bearings in stock, Radial spherical plain bearings, Dimensions: 17mm x 30mm x 14mm, Mass plain bearing: 0.05 kg.
- Brand: SKF
- Inside Diameter: 17 mm
- Outside Diameter: 30 mm
- Width: 14 mm
- Basic dynamic load rating: 21.2 kN
- Basic static load rating: 21.2 kN
SKF GE20ES spherical plain bearings | 20x35x16mm
Nodes have SKF GE20ES bearings in stock, Radial spherical plain bearings, Dimensions: 20mm x 35mm x 16mm, Mass plain bearing: 0.065 kg.
- Brand: SKF
- Inside Diameter: 20 mm
- Outside Diameter: 35 mm
- Width: 16 mm
- Basic dynamic load rating: 30 kN
- Basic static load rating: 30 kN
SKF GE35ES spherical plain bearings | 35x55x25mm
Nodes have SKF GE35ES bearings in stock, Radial spherical plain bearings, Dimensions: 35mm x 55mm x 25mm, Mass plain bearing: 0.23 kg.
- Brand: SKF
- Inside Diameter: 35 mm
- Outside Diameter: 55 mm
- Width: 25 mm
- Basic dynamic load rating: 80 kN
- Basic static load rating: 80 kN
SKF GE40ES spherical plain bearings | 40x62x28mm
Nodes have SKF GE40ES bearings in stock, Radial spherical plain bearings, Dimensions: 40mm x 62mm x 28mm, Mass plain bearing: 0.32 kg.
- Brand: SKF
- Inside Diameter: 40 mm
- Outside Diameter: 62 mm
- Width: 28 mm
- Basic dynamic load rating: 100 kN
- Basic static load rating: 100 kN
SKF GE50ES spherical plain bearings | 50x75x35mm
Nodes have SKF GE50ES bearings in stock, Radial spherical plain bearings, Dimensions: 50mm x 75mm x 35mm, Mass plain bearing: 0.56 kg.
- Brand: SKF
- Inside Diameter: 50 mm
- Outside Diameter: 75 mm
- Width: 35 mm
- Basic dynamic load rating: 156 kN
- Basic static load rating: 156 kN
SKF GE60ES spherical plain bearings | 60x90x44mm
Nodes have SKF GE60ES bearings in stock, Radial spherical plain bearings, Dimensions: 60mm x 90mm x 44mm, Mass plain bearing: 1.1 kg.
- Brand: SKF
- Inside Diameter: 60 mm
- Outside Diameter: 90 mm
- Width: 44 mm
- Basic dynamic load rating: 245 kN
- Basic static load rating: 245 kN
SKF GE80ES spherical plain bearings | 80x120x55mm
Nodes have SKF GE80ES bearings in stock, Radial spherical plain bearings, Dimensions: 80mm x 120mm x 55mm, Mass plain bearing: 2.3 kg.
- Brand: SKF
- Inside Diameter: 80 mm
- Outside Diameter: 120 mm
- Width: 55 mm
- Basic dynamic load rating: 400 kN
- Basic static load rating: 400 kN
SKF GE110ES spherical plain bearings | 110x160x70mm
Nodes have SKF GE110ES bearings in stock, Radial spherical plain bearings, Dimensions: 110mm x 160mm x 70mm, Mass plain bearing: 4.8 kg.
- Brand: SKF
- Inside Diameter: 110 mm
- Outside Diameter: 160 mm
- Width: 70 mm
- Basic dynamic load rating: 655 kN
- Basic static load rating: 655 kN
SKF GE20ES-2RS spherical plain bearings | 20x35x16mm
Nodes have SKF GE20ES-2RS bearings in stock, Radial spherical plain bearings, Dimensions: 20mm x 35mm x 16mm, Basic dynamic load rating: 30KN, static load rating: 146KN, Mass plain bearing: 0.065 kg.
- Brand: SKF
- Inside Diameter: 20 mm
- Outside Diameter: 35 mm
- Width: 16 mm
- Basic dynamic load rating: 30 kN
- Basic static load rating: 30 kN
SKF GE25ES-2RS spherical plain bearings | 25x42x20mm
Nodes have SKF GE25ES-2RS bearings in stock, Radial spherical plain bearings, Dimensions: 25mm x 42mm x 20mm, Basic dynamic load rating: 48KN, static load rating: 240KN, Mass plain bearing: 0.12 kg.
- Brand: SKF
- Inside Diameter: 25 mm
- Outside Diameter: 42 mm
- Width: 20 mm
- Basic dynamic load rating: 48 kN
- Basic static load rating: 48 kN
SKF GE40ES-2RS spherical plain bearings | 40x62x28mm
Nodes have SKF GE40ES-2RS bearings in stock, Radial spherical plain bearings, Dimensions: 40mm x 62mm x 28mm, Basic dynamic load rating: 100KN, static load rating: 500KN, Mass plain bearing: 0.32 kg.
- Brand: SKF
- Inside Diameter: 40 mm
- Outside Diameter: 62 mm
- Width: 28 mm
- Basic dynamic load rating: 100 kN
- Basic static load rating: 100 kN
