SKF GE100TXA-2LS Bearing

SKF GE100TXA-2LS spherical plain bearings | 100x150x70mm

Also known as : GE100TXA-2LS, GE100-UK-2RS

  • Inside Diameter: 100 mm
  • Outside Diameter: 150 mm
  • Width: 70 mm
  • Basic dynamic load rating: 1730 kN
  • Basic static load rating: 2850 kN

Inquire Now


SKF GE100TXA-2LS Bearing

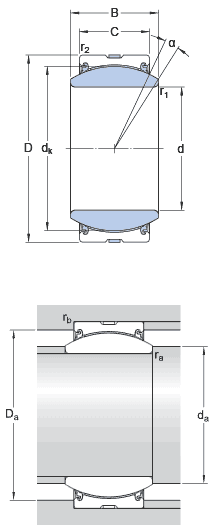

SKF GE100TXA-2LS Bearing details

number GE100TXA-2LS
Type maintenance-free radial spherical plain bearings
d 100 mm
D 150 mm
B 70 mm
C 55 mm
α 6 °
dk 130 mm
r1 min. 1 mm
r2 min. 1 mm
da min. 108 mm
da max. 109.5 mm
Da min. 131 mm
Da max. 144 mm
ra max. 1 mm
rb max. 1 mm
Calculation data
Basic dynamic load rating C 1730 kN
Basic static load rating C0 2850 kN
Specific dynamic load factor K 300 N/mm²
Specific static load factor K0 500 N/mm²
Mass 4.3 kg

As SKF bearing distributor, Nodes bearings have SKF GE100TXA-2LS spherical plain bearings in stock.

SKF GE100TXA-2LS bearing cross reference

IKO GE100ES bearing
100mm x 150mm x 70mm
IKO GE100ES-2RS bearing
100mm x 150mm x 70mm
IKO GE100GS bearing
100mm x 160mm x 85mm
IKO GE100GS-2RS bearing
100mm x 160mm x 85mm
SKF GE100ES-2RS bearing
100mm x 150mm x 70mm
INA GE100-DO bearing
100mm x 150mm x 70mm
INA GE100-DO-2RS bearing
100mm x 150mm x 70mm
INA GE100-FO-2RS bearing
100mm x 160mm x 85mm
INA GE100-UK-2RS bearing
100mm x 150mm x 70mm
INA GE100-FW-2RS bearing
100mm x 160mm x 85mm
INA GE100-SX bearing
100mm x 150mm x 32mm
INA GE100-SW bearing
100mm x 150mm x 32mm
