As a SKF bearing distributor, Nodes bearings supplies SKF cam followers, including three designs.
KR design: KR..B, KR..PPA, KRV..PPA, KRE..PPA
NUKR design: NUKR..A, NUKRE..A
PWKR design: PWKR...2RS, PWKRE...2RS
SKF cam followers have an internal design very similar to that of a needle or cylindrical roller bearing. They are characterized by a thick-walled outer ring that enables them to accommodate shock loads while reducing distortion and bending stresses.
SKF NUKRE47A cam followers
Nodes have SKF NUKRE 47 A cam followers in stock, dimensions of NUKRE47A cam followers: D:47mm, d:24mm, B:66mm, Limiting speed: 3800 r/min, Mass: 0.4kg.
- Brand: SKF
- D: 47 mm
- d: 24 mm
- C: 66 mm
- Basic dynamic load rating: 28.6 kN
- Basic static load rating: 28.6 kN
SKF NUKR62A cam followers
Nodes have SKF NUKR 62 A cam followers in stock, dimensions of NUKR62A cam followers: D:62mm, d:24mm, B:80mm, Limiting speed: 2600 r/min, Mass: 0.8kg.
- Brand: SKF
- D: 62 mm
- d: 24 mm
- C: 80 mm
- Basic dynamic load rating: 41.3 kN
- Basic static load rating: 41.3 kN
SKF KRE62PPA cam followers with eccentric collar
Nodes have SKF KRE 62 PPA cam followers in stock, KRE62PPA have eccentric collar, dimensions of KRE62PPA cam followers: D:62mm, d:28mm, B:80mm, Limiting speed: 2400 r/min, Mass: 0.8kg.
- Brand: SKF
- D: 62 mm
- d: 28 mm
- C: 80 mm
- Basic dynamic load rating: 24.6 kN
- Basic static load rating: 24.6 kN
SKF KRE30PPA cam followers with eccentric collar
Nodes have SKF KRE 30 PPA cam followers in stock, KRE30PPA have eccentric collar, dimensions of KRE30PPA cam followers: D:30mm, d:15mm, B:40mm, Limiting speed: 4800 r/min, Mass: 0.093kg.
- Brand: SKF
- D: 30 mm
- d: 15 mm
- C: 40 mm
- Basic dynamic load rating: 6.44 kN
- Basic static load rating: 6.44 kN
SKF KRV62PPA cam followers | Dimensions D:62mm, d:24mm, B:80
Nodes have SKF KRV 62 PPA cam followers in stock, KRV62PPA Cam follower fitted with a full complement of needle rollers, dimensions of KRV 62 PPA cam followers: D:62mm, d:24mm, B:80mm.
- Brand: SKF
- D: 62 mm
- d: 24 mm
- C: 80 mm
- Basic dynamic load rating: 31.4 kN
- Basic static load rating: 31.4 kN

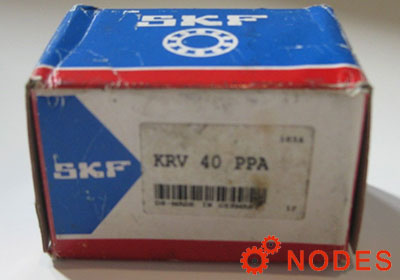

SKF KRV40PPA cam followers | Dimensions D:40mm, d:18mm, B:58
Nodes have SKF KRV 40 PPA cam followers in stock, KRV40PPA Cam follower fitted with a full complement of needle rollers, dimensions of KRV 40 PPA cam followers: D:40mm, d:18mm, B:58mm.
- Brand: SKF
- D: 40 mm
- d: 18 mm
- C: 58 mm
- Basic dynamic load rating: 14.2 kN
- Basic static load rating: 14.2 kN
SKF KRV30PPXA cam followers | Dimensions D:30mm, d:12mm, B:4
Nodes have SKF KRV 30 PPXA cam followers in stock, KRV30PPXA has cylindrical profile, dimensions of KRV 30 PPA cam followers: D:30mm, d:12mm, B:40mm.
- Brand: SKF
- D: 30 mm
- d: 12 mm
- C: 40 mm
- Basic dynamic load rating: 8.97 kN
- Basic static load rating: 8.97 kN
SKF KRV30PPA cam followers | Dimensions D:30mm, d:12mm, B:40
Nodes have SKF KRV 30 PPA cam followers in stock, KRV30PPA is full complement of needle rollers, dimensions of KRV 30 PPA cam followers: D:30mm, d:12mm, B:40mm.
- Brand: SKF
- D: 30 mm
- d: 12 mm
- C: 40 mm
- Basic dynamic load rating: 8.97 kN
- Basic static load rating: 8.97 kN

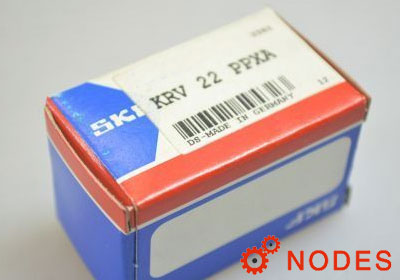

SKF KRV22PPXA cam followers, cylindrical profile
Nodes have SKF KRV 22 PPXA cam followers in stock, KRV22PPXA has cylindrical profile, dimensions of KRV 22 PPA cam followers: D:22mm, d:10mm, B:36mm.
- Brand: SKF
- D: 22 mm
- d: 10 mm
- C: 36 mm
- Basic dynamic load rating: 6.05 kN
- Basic static load rating: 6.05 kN

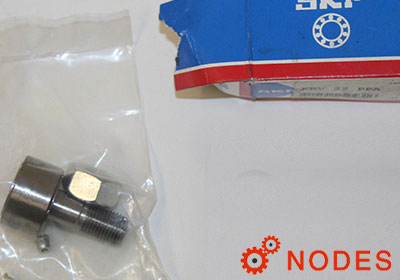

SKF KRV22PPA cam followers | Dimensions D:22mm, d:10mm, B:36
Nodes have SKF KRV 22 PPA cam followers in stock, SKF cam follower, full complement needle roller set, dimensions of KRV 22 PPA cam followers: D:22mm, d:10mm, B:36mm, Mass: 0.045kg.
- Brand: SKF
- D: 22 mm
- d: 10 mm
- C: 36 mm
- Basic dynamic load rating: 6.05 kN
- Basic static load rating: 6.05 kN
SKF KR30PPA cam followers | Dimensions D:30mm, d:12mm, B:40m
Nodes have SKF KR 30 PPA cam followers in stock, dimensions of SKF KR 30 PPA cam followers: D:30mm, d:12mm, B:40mm, Limiting speed: 4800 r/min, Mass: 0.088kg.
- Brand: SKF
- D: 30 mm
- d: 12 mm
- C: 40 mm
- Basic dynamic load rating: 6.44 kN
- Basic static load rating: 6.44 kN
SKF KR30XB cam followers | Dimensions D:30mm, d:12mm, B:40mm
Nodes have SKF KR 30 XB cam followers in stock, dimensions of SKF KR 30 XB cam followers: D:30mm, d:12mm, B:40mm, Limiting speed: 4800 r/min, Mass: 0.092kg.
- Brand: SKF
- D: 30 mm
- d: 12 mm
- C: 40 mm
- Basic dynamic load rating: 6.44 kN
- Basic static load rating: 6.44 kN
SKF KR30B cam followers | Dimensions D:30mm, d:12mm, B:40mm
Nodes have SKF KR30B cam followers in stock, dimensions of SKF KR30B cam followers: D:30mm, d:12mm, B:40mm, Limiting speed: 4800 r/min, Mass: 0.092kg.
- Brand: SKF
- D: 30 mm
- d: 12 mm
- C: 40 mm
- Basic dynamic load rating: 6.44 kN
- Basic static load rating: 6.44 kN

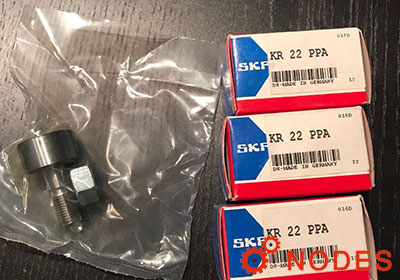

SKF KR22PPA cam followers | Dimensions D:22mm, d:10mm, B:36m
Nodes have SKF KR22PPA cam followers in stock, dimensions of SKF KR22PPA cam followers: D:22mm, d:10mm, B:36mm, Limiting speed: 5300 r/min, Mass: 0.043kg.
- Brand: SKF
- D: 22 mm
- d: 10 mm
- C: 36 mm
- Basic dynamic load rating: 4.4 kN
- Basic static load rating: 4.4 kN

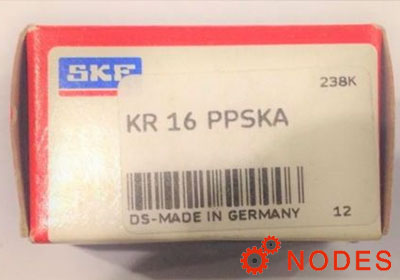

SKF KR16 PPSKA cam followers | Dimensions D:16mm, d:6mm, B:2
Nodes have SKF KR 16 PPSKA cam followers in stock, dimensions of SKF KR 16 PPSKA cam followers: D:16mm, d:6mm, B:28mm, Limiting speed: 6000 r/min, Mass: 0.019kg.
- Brand: SKF
- D: 16 mm
- d: 6 mm
- C: 28 mm
- Basic dynamic load rating: 3.14 kN
- Basic static load rating: 3.14 kN

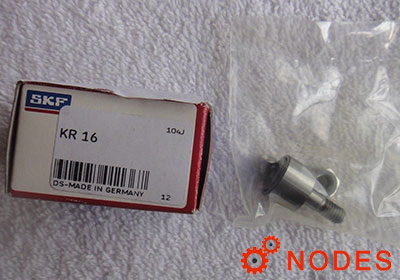

SKF KR16 cam followers | Dimensions D:16mm, d:6mm, B:28mm
Nodes have SKF KR16 cam followers in stock, dimensions of SKF KR16 cam followers: D:16mm, d:6mm, B:28mm, Limiting speed: 6000 r/min, Mass: 0.019kg.
- Brand: SKF
- D: 16 mm
- d: 6 mm
- C: 28 mm
- Basic dynamic load rating: 3.14 kN
- Basic static load rating: 3.14 kN
