TIMKEN 6210-2RS-NR Bearing

TIMKEN 6210-2RS-NR Deep Groove Ball Bearings | 50x90x20mm

Also known as : 6210-2RS-NR

• Inside Diameter: 50 mm
• Outside Diameter: 90 mm
• Width: 20 mm
• Basic dynamic load rating: 35 kN
• Basic static load rating: 23.2 kN

Inquire Now

TIMKEN 6210-2RS-NR Bearing

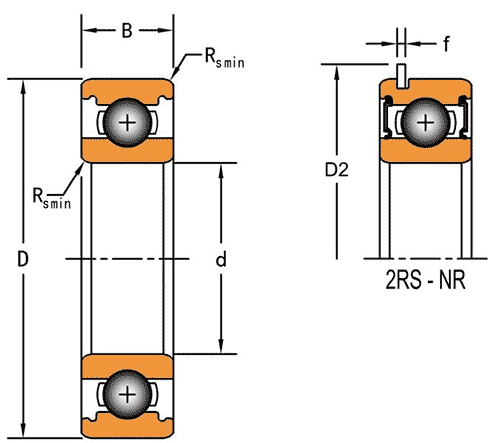

Bearing Number	6210-2RS-NR
Brand	TIMKEN
Type	Deep groove ball bearings
Clearance	C0 (Normal)
Bore Size d	50.000 mm
Features	Contact Seals With Snap Ring
Weight	0.460 Kg
Outside Diameter D	90.000 mm
Outside Ring Width B	20.000 mm
Radius Rs min	1.100 mm
Snap Ring Diameter D2 max	96.500 mm
Snap Ring Width f max	2.460 mm
Cr - Dynamic Load Rating	35 kN
C0r - Static Load Rating	23.2 kN
Grease Reference Speed	7700 rpm
Oil Reference Speed	11000 rpm

As TIMKEN bearing distributor, Nodes bearings have TIMKEN 6210-2RS-NR bearings in stock. Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously.
