NSK 6210ZZ Bearing

NSK 6210ZZ Deep groove ball bearings

Also known as : 6210ZZ, 6210-2Z

• Inside Diameter: 50 mm
• Outside Diameter: 90 mm
• Width: 20 mm
• Basic dynamic load rating: 35 kN
• Basic static load rating: 23.2 kN

Inquire Now

NSK 6210ZZ Bearing

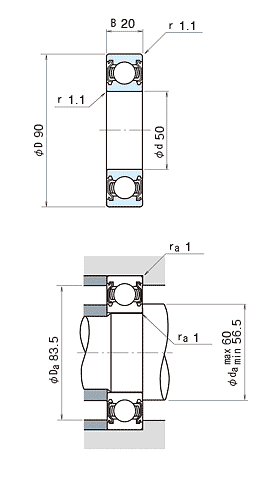

model	6210ZZ
d	50 mm
D	90 mm
B	20 mm
rmin.	1.1 mm
Cr	35000 N 3600 kgf
C0r	23200 N 2370 kgf
Limiting speeds	7100 min-1 (Grease)
f0	14.4 (Factor)
da min	56.5 mm
da max	60 mm
Da	83.5 mm
ra	1 mm
Mass	0.459 kg (approx.)

NSK 6210ZZ ball bearings, deep groove ball bearing, Single-Row, ZZ: With Two Shielded.
