NSK 6210DDUC3 Deep groove ball bearings
Also known as : 6210DDUC3, 6210-2RSC3, 6210LLUC3
- Inside Diameter: 50 mm
- Outside Diameter: 90 mm
- Width: 20 mm
- Basic dynamic load rating: 35 kN
- Basic static load rating: 23.2 kN
NSK 6210DDU Bearing
NSK 6210DDU Bearing details

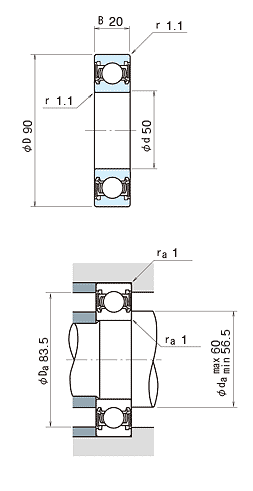

model | 6210DDUC3 |
---|---|
d | 50 mm |
D | 90 mm |
B | 20 mm |
rmin. | 1.1 mm |
Cr |
35000 N 3600 kgf |
C0r |
23200 N 2370 kgf |
Limiting speeds | 4800 min-1 (Grease) |
f0 | 14.4 (Factor) |
da min | 56.5 mm |
da max | 60 mm |
Da | 83.5 mm |
ra | 1 mm |
Mass | 0.459 kg (approx.) |
NSK 6210DDUC3 ball bearings, deep groove ball bearing, Single-Row, DDU: With Two Contact Sealed.
