IKO GE90ES spherical plain bearings | 90x130x60mm
Also known as : GE90ES
- Inside Diameter: 90 mm
- Outside Diameter: 130 mm
- Width: 60 mm
- Basic dynamic load rating: 564 kN
- Basic static load rating: 3380 kN
IKO GE90ES

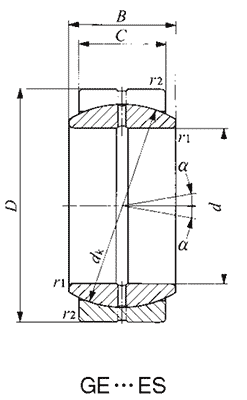

IKO GE90ES Bearing details
| Identification number | GE90ES |
|---|---|
| Type | Spherical plain bearings |
| Mass | 2.82 kg |
| d | 90 mm |
| D | 130 mm |
| B | 60 |
| C | 50 mm |
| dk | 115 mm |
| r1s min | 1 mm |
| r2s min | 1 mm |
| Permissible tilting angle degree a | 5 |
| Permissible tilting angle degree a1 | 3 |
| Dynamic load capacity | 564 kN |
| Static load capacity | 3380 kN |
Nodes bearings have IKO GE90ES spherical bushings, Steel-on-steel Spherical Bushings, in stock.
