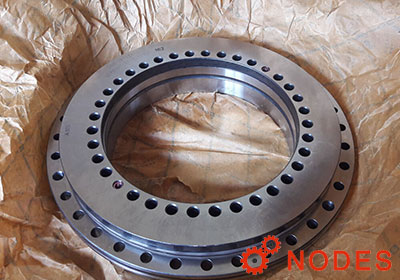

INA Rotary table bearings are double-direction axial bearings for screw mounting with a radial guidance bearing. These ready-to-fit, pregreased units are very rigid, have high load-carrying capacity and operate with particularly high accuracy. They can support radial forces, axial forces from both directions and tilting moments free from clearance. ZKLDF axial angular contact ball bearings are low-friction, ready-to-fit, greased bearing units with high accuracy for very high speeds, high axial and radial loads and high demands on tilting rigidity. Axial-radial bearings with angular measuring system YRTM and YRTSM correspond in mechanical terms to series YRT and YRTS but are additionally fitted with an angular measuring system.
INA YRT80-TV bearing | 80x146x35 mm
Nodes bearings have INA YRT80-TV rotary table bearings in stock, double direction, for screw mounting, YRT80-TV bearing dimensions: 80x146x35 mm, Cr: 44000N, C0r: 98000N.
- Brand: INA
- Inside Diameter: 80 mm
- Outside Diameter: 146 mm
- Width: 35 mm
- Basic dynamic load rating: 44 kN
- Basic static load rating: 44 kN
INA YRT100 bearing | 100x185x38 mm
Nodes bearings have INA YRT100 rotary table bearings in stock, double direction, for screw mounting, YRT100 bearing dimensions: 100x185x38 mm, Cr: 52000N, C0r: 108000N.
- Brand: INA
- Inside Diameter: 100 mm
- Outside Diameter: 185 mm
- Width: 38 mm
- Basic dynamic load rating: 52 kN
- Basic static load rating: 52 kN
INA YRTC120-XL bearing | 120x210x40 mm
Nodes bearings have INA YRTC120-XL rotary table bearings in stock, Double direction, for screw mounting, YRTC120-XL bearing dimensions: 120x210x40 mm, Cr: 69000N, C0r: 124000N.
- Brand: INA
- Inside Diameter: 120 mm
- Outside Diameter: 210 mm
- Width: 40 mm
- Basic dynamic load rating: 69 kN
- Basic static load rating: 69 kN
INA YRTC150-XL bearing | 150x240x40 mm
Nodes bearings have INA YRTC150-XL rotary table bearings in stock, Double direction, for screw mounting, YRTC150-XL bearing dimensions: 150x240x40 mm, Cr: 74000N, C0r: 146000N.
- Brand: INA
- Inside Diameter: 150 mm
- Outside Diameter: 240 mm
- Width: 40 mm
- Basic dynamic load rating: 74 kN
- Basic static load rating: 74 kN
INA YRTC200-XL bearing | 200x300x45 mm
Nodes bearings have INA YRTC200-XL rotary table bearings in stock, Double direction, for screw mounting, YRTC200-XL bearing dimensions: 200x300x45 mm, Cr: 123000N, C0r: 275000N.
- Brand: INA
- Inside Diameter: 200 mm
- Outside Diameter: 300 mm
- Width: 45 mm
- Basic dynamic load rating: 123 kN
- Basic static load rating: 123 kN
INA YRTC260-XL bearing | 260x385x55 mm
Nodes bearings have INA YRTC260-XL rotary table bearings in stock, Double direction, for screw mounting, YRTC260-XL bearing dimensions: 260x385x55 mm, Cr: 140000N, C0r: 355000N.
- Brand: INA
- Inside Diameter: 260 mm
- Outside Diameter: 385 mm
- Width: 55 mm
- Basic dynamic load rating: 140 kN
- Basic static load rating: 140 kN
INA YRTC325-XL bearing | 325x450x60 mm
Nodes bearings have INA YRTC325-XL rotary table bearings in stock, Double direction, for screw mounting, YRTC325-XL bearing dimensions: 325x450x60 mm, Cr: 183000N, C0r: 530000N.
- Brand: INA
- Inside Diameter: 325 mm
- Outside Diameter: 450 mm
- Width: 60 mm
- Basic dynamic load rating: 183 kN
- Basic static load rating: 183 kN
INA YRTS325 bearing | 325x450x60 mm
Nodes bearings have INA YRTS325 rotary table bearings in stock, double direction, for screw mounting, for higher speeds, YRTS325 bearing dimensions: 325x450x60 mm, Cr: 109000N, C0r: 320000N.
- Brand: INA
- Inside Diameter: 325 mm
- Outside Diameter: 450 mm
- Width: 60 mm
- Basic dynamic load rating: 109 kN
- Basic static load rating: 109 kN
INA ZKLDF100 bearing | 100x185x38 mm
Nodes bearings have INA ZKLDF100 rotary table bearings in stock, double direction, for screw mounting, sealing shields on both sides, ZKLDF100 bearing dimensions: 100x185x38 mm, Cr: N, C0r: N.
- Brand: INA
- Inside Diameter: 100 mm
- Outside Diameter: 185 mm
- Width: 38 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
INA ZKLDF120 bearing | 120x210x40 mm
Nodes bearings have INA ZKLDF120 rotary table bearings in stock, double direction, for screw mounting, sealing shields on both sides, ZKLDF120 bearing dimensions: 120x210x40 mm, Cr: N, C0r: N.
- Brand: INA
- Inside Diameter: 120 mm
- Outside Diameter: 210 mm
- Width: 40 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
INA ZKLDF150 bearing | 150x240x40 mm
Nodes bearings have INA ZKLDF150 rotary table bearings in stock, double direction, for screw mounting, sealing shields on both sides, ZKLDF150 bearing dimensions: 150x240x40 mm, Cr: N, C0r: N.
- Brand: INA
- Inside Diameter: 150 mm
- Outside Diameter: 240 mm
- Width: 40 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
INA ZKLDF180 bearing | 180x280x43 mm
Nodes bearings have INA ZKLDF180 rotary table bearings in stock, double direction, for screw mounting, sealing shields on both sides, ZKLDF180 bearing dimensions: 180x280x43 mm, Cr: N, C0r: N.
- Brand: INA
- Inside Diameter: 180 mm
- Outside Diameter: 280 mm
- Width: 43 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
INA ZKLDF200 bearing | 200x300x45 mm
Nodes bearings have INA ZKLDF200 rotary table bearings in stock, double direction, for screw mounting, sealing shields on both sides, ZKLDF200 bearing dimensions: 200x300x45 mm, Cr: N, C0r: N.
- Brand: INA
- Inside Diameter: 200 mm
- Outside Diameter: 300 mm
- Width: 45 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
INA ZKLDF260 bearing | 260x385x55 mm
Nodes bearings have INA ZKLDF260 rotary table bearings in stock, double direction, for screw mounting, sealing shields on both sides, ZKLDF260 bearing dimensions: 260x385x55 mm, Cr: N, C0r: N.
- Brand: INA
- Inside Diameter: 260 mm
- Outside Diameter: 385 mm
- Width: 55 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
INA ZKLDF325 bearing | 325x450x60 mm
Nodes bearings have INA ZKLDF325 rotary table bearings in stock, double direction, for screw mounting, sealing shields on both sides, ZKLDF325 bearing dimensions: 325x450x60 mm, Cr: N, C0r: N.
- Brand: INA
- Inside Diameter: 325 mm
- Outside Diameter: 450 mm
- Width: 60 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
INA ZKLDF395 bearing | 395x525x65 mm
Nodes bearings have INA ZKLDF395 rotary table bearings in stock, double direction, for screw mounting, sealing shields on both sides, ZKLDF395 bearing dimensions: 395x525x65 mm, Cr: N, C0r: N.
- Brand: INA
- Inside Diameter: 395 mm
- Outside Diameter: 525 mm
- Width: 65 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
INA ZKLDF460 bearing | 460x600x70 mm
Nodes bearings have INA ZKLDF460 rotary table bearings in stock, double direction, for screw mounting, sealing shields on both sides, ZKLDF460 bearing dimensions: 460x600x70 mm, Cr: N, C0r: N.
- Brand: INA
- Inside Diameter: 460 mm
- Outside Diameter: 600 mm
- Width: 70 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
INA YRT50 bearing | 50x126x30 mm
Nodes bearings have INA YRT50 rotary table bearings in stock, double direction, for screw mounting, YRT50 bearing dimensions: 50x126x30 mm, Cr: 28500N, C0r: 49500N.
- Brand: INA
- Inside Diameter: 50 mm
- Outside Diameter: 126 mm
- Width: 30 mm
- Basic dynamic load rating: 28.5 kN
- Basic static load rating: 28.5 kN
INA YRTC180-XL bearing | 180x280x43 mm
Nodes bearings have INA YRTC180-XL rotary table bearings in stock, Double direction, for screw mounting, YRTC180-XL bearing dimensions: 180x280x43 mm, Cr: 100000N, C0r: 200000N.
- Brand: INA
- Inside Diameter: 180 mm
- Outside Diameter: 280 mm
- Width: 43 mm
- Basic dynamic load rating: 100 kN
- Basic static load rating: 100 kN
INA YRTC395-XL bearing | 395x525x65 mm
Nodes bearings have INA YRTC395-XL rotary table bearings in stock, Double direction, for screw mounting, YRTC395-XL bearing dimensions: 395x525x65 mm, Cr: 200000N, C0r: 640000N.
- Brand: INA
- Inside Diameter: 395 mm
- Outside Diameter: 525 mm
- Width: 65 mm
- Basic dynamic load rating: 200 kN
- Basic static load rating: 200 kN
INA YRTC460-XL bearing | 460x600x70 mm
Nodes bearings have INA YRTC460-XL rotary table bearings in stock, Double direction, for screw mounting, YRTC460-XL bearing dimensions: 460x600x70 mm, Cr: 265000N, C0r: 880000N.
- Brand: INA
- Inside Diameter: 460 mm
- Outside Diameter: 600 mm
- Width: 70 mm
- Basic dynamic load rating: 265 kN
- Basic static load rating: 265 kN
INA YRTC580-XL bearing | 580x750x90 mm
Nodes bearings have INA YRTC580-XL rotary table bearings in stock, Double direction, for screw mounting, YRTC580-XL bearing dimensions: 580x750x90 mm, Cr: 235000N, C0r: 730000N.
- Brand: INA
- Inside Diameter: 580 mm
- Outside Diameter: 750 mm
- Width: 90 mm
- Basic dynamic load rating: 235 kN
- Basic static load rating: 235 kN
INA YRTC650-XL bearing | 650x870x122 mm
Nodes bearings have INA YRTC650-XL rotary table bearings in stock, Double direction, for screw mounting, YRTC650-XL bearing dimensions: 650x870x122 mm, Cr: 455000N, C0r: 1300000N.
- Brand: INA
- Inside Diameter: 650 mm
- Outside Diameter: 870 mm
- Width: 122 mm
- Basic dynamic load rating: 455 kN
- Basic static load rating: 455 kN
INA YRTC850-XL bearing | 850x1095x124 mm
Nodes bearings have INA YRTC850-XL rotary table bearings in stock, Double direction, for screw mounting, YRTC850-XL bearing dimensions: 850x1095x124 mm, Cr: 520000N, C0r: 1690000N.
- Brand: INA
- Inside Diameter: 850 mm
- Outside Diameter: 1095 mm
- Width: 124 mm
- Basic dynamic load rating: 520 kN
- Basic static load rating: 520 kN
INA YRTS200 bearing | 200x300x45 mm
Nodes bearings have INA YRTS200 rotary table bearings in stock, double direction, for screw mounting, for higher speeds, YRTS200 bearing dimensions: 200x300x45 mm, Cr: 94000N, C0r: 226000N.
- Brand: INA
- Inside Diameter: 200 mm
- Outside Diameter: 300 mm
- Width: 45 mm
- Basic dynamic load rating: 94 kN
- Basic static load rating: 94 kN
INA YRTS260 bearing | 260x385x55 mm
Nodes bearings have INA YRTS260 rotary table bearings in stock, double direction, for screw mounting, for higher speeds, YRTS260 bearing dimensions: 260x385x55 mm, Cr: 110000N, C0r: 305000N.
- Brand: INA
- Inside Diameter: 260 mm
- Outside Diameter: 385 mm
- Width: 55 mm
- Basic dynamic load rating: 110 kN
- Basic static load rating: 110 kN
INA YRTS395 bearing | 395x525x65 mm
Nodes bearings have INA YRTS395 rotary table bearings in stock, double direction, for screw mounting, for higher speeds, YRTS395 bearing dimensions: 395x525x65 mm, Cr: 121000N, C0r: 390000N.
- Brand: INA
- Inside Diameter: 395 mm
- Outside Diameter: 525 mm
- Width: 65 mm
- Basic dynamic load rating: 121 kN
- Basic static load rating: 121 kN
INA YRTC1030-XL bearing | 1030x1300x145 mm
Nodes bearings have INA YRTC1030-XL rotary table bearings in stock, Double direction, for screw mounting, YRTC1030-XL bearing dimensions: 1030x1300x145 mm, Cr: 580000N, C0r: 2050000N.
- Brand: INA
- Inside Diameter: 1030 mm
- Outside Diameter: 1300 mm
- Width: 145 mm
- Basic dynamic load rating: 580 kN
- Basic static load rating: 580 kN
INA YRTS460 bearing | 460x600x70 mm
Nodes bearings have INA YRTS460 rotary table bearings in stock, double direction, for screw mounting, for higher speeds, YRTS460 bearing dimensions: 460x600x70 mm, Cr: 168000N, C0r: 570000N.
- Brand: INA
- Inside Diameter: 460 mm
- Outside Diameter: 600 mm
- Width: 70 mm
- Basic dynamic load rating: 168 kN
- Basic static load rating: 168 kN
