INA machined needle roller bearings
INA Needle roller bearings with ribs are single or double row units comprising machined outer rings with ribs, needle roller and cage assemblies and removable inner rings.
INA Needle roller bearings with ribs are X-life bearings. These bearings have optimised raceway surfaces. This gives higher load carrying capacity and longer rating life.
Bearings without inner ring have particularly compact radial dimensions. However, they require a shaft raceway that is hardened and ground.
Bearings with an inner ring are used if the shaft is not configured as a rolling bearing raceway.
INA machined needle roller bearings: NK, NKS, RNA48, 49, 69, NKI, NKIS, NA48, 49, 69, RNA69..-ZW, NA69..-ZW.
INA RNA4900-2RSR-XL needle bearings
Nodes bearings have INA RNA4900-2RSR-XL bearings in stock, Needle roller bearings, lip seal on one side, RNA4900-2RSR-XL bearings dimensions: 14mm x 22mm x 13mm, Cr: 7700N, C0r: 6900N.
- Brand: INA
- Inside Diameter: 14 mm
- Outside Diameter: 22 mm
- Width: 13 mm
- Basic dynamic load rating: 7.7 kN
- Basic static load rating: 7.7 kN

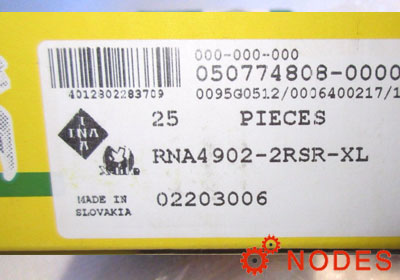

INA RNA4902-2RSR-XL needle bearings
Nodes bearings have INA RNA4902-2RSR-XL bearings in stock, Needle roller bearings, lip seal on one side, RNA4902-2RSR-XL bearings dimensions: 20mm x 28mm x 13mm, Cr: 9700N, C0r: 10300N.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 28 mm
- Width: 13 mm
- Basic dynamic load rating: 9.7 kN
- Basic static load rating: 9.7 kN

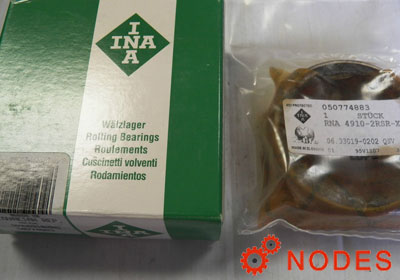

INA RNA4910-2RSR-XL needle bearings
Nodes bearings have INA RNA4910-2RSR-XL bearings in stock, Needle roller bearings, lip seal on one side, RNA4910-2RSR-XL bearings dimensions: 58mm x 72mm x 22mm, Cr: 45000N, C0r: 64000N.
- Brand: INA
- Inside Diameter: 58 mm
- Outside Diameter: 72 mm
- Width: 22 mm
- Basic dynamic load rating: 45 kN
- Basic static load rating: 45 kN

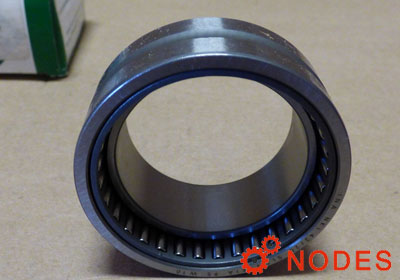

INA NKI42/20-XL needle bearings
Nodes bearings have INA NKI42/20-XL bearings in stock, Needle roller bearings, light series, NKI42/20-XL bearings dimensions: 42mm x 57mm x 20mm, Cr: 32500N, C0r: 56000N.
- Brand: INA
- Inside Diameter: 42 mm
- Outside Diameter: 57 mm
- Width: 20 mm
- Basic dynamic load rating: 32.5 kN
- Basic static load rating: 32.5 kN

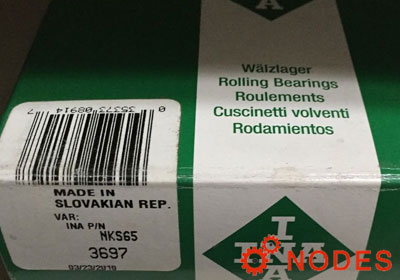

INA NKS65-XL needle bearings
Nodes bearings have INA NKS65-XL bearings in stock, Needle roller bearings, heavy series, NKS65-XL bearings dimensions: 65mm x 85mm x 28mm, Cr: 75KN, C0r: 108KN.
- Brand: INA
- Inside Diameter: 65 mm
- Outside Diameter: 85 mm
- Width: 28 mm
- Basic dynamic load rating: 75 kN
- Basic static load rating: 75 kN

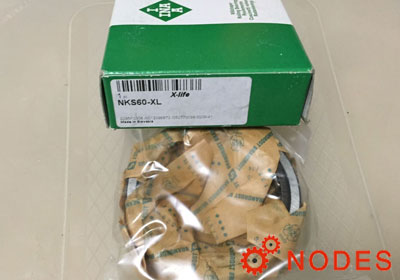

INA NKS60-XL needle bearings
Nodes bearings have INA NKS60-XL bearings in stock, Needle roller bearings, heavy series, NKS60-XL bearings dimensions: 60mm x 80mm x 28mm, Cr: 71KN, C0r: 98KN.
- Brand: INA
- Inside Diameter: 60 mm
- Outside Diameter: 80 mm
- Width: 28 mm
- Basic dynamic load rating: 71 kN
- Basic static load rating: 71 kN
INA NKS55-XL needle bearings
Nodes bearings have INA NKS55-XL bearings in stock, Needle roller bearings, heavy series, NKS55-XL bearings dimensions: 55mm x 72mm x 22mm, Cr: 51KN, C0r: 74KN.
- Brand: INA
- Inside Diameter: 55 mm
- Outside Diameter: 72 mm
- Width: 22 mm
- Basic dynamic load rating: 51 kN
- Basic static load rating: 51 kN

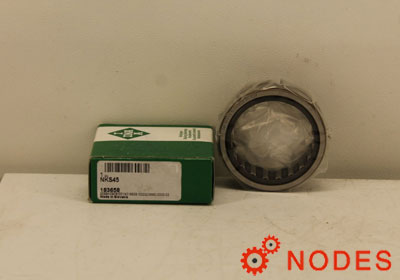

INA NKS45-XL needle bearings
Nodes bearings have INA NKS45-XL bearings in stock, Needle roller bearings, heavy series, NKS45-XL bearings dimensions: 45mm x 60mm x 22mm, Cr: 45.5KN, C0r: 60KN.
- Brand: INA
- Inside Diameter: 45 mm
- Outside Diameter: 60 mm
- Width: 22 mm
- Basic dynamic load rating: 45.5 kN
- Basic static load rating: 45.5 kN
INA NKS35-XL needle bearings
Nodes bearings have INA NKS35-XL bearings in stock, Needle roller bearings, heavy series, NKS35-XL bearings dimensions: 35mm x 50mm x 22mm, Cr: 39.5KN, C0r: 47KN.
- Brand: INA
- Inside Diameter: 35 mm
- Outside Diameter: 50 mm
- Width: 22 mm
- Basic dynamic load rating: 39.5 kN
- Basic static load rating: 39.5 kN

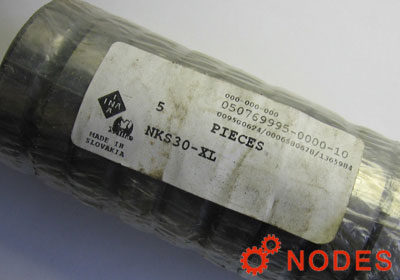

INA NKS30-XL needle bearings
Nodes bearings have INA NKS30-XL bearings in stock, Needle roller bearings, heavy series, NKS30-XL bearings dimensions: 30mm x 45mm x 22mm, Cr: 36.5KN, C0r: 40KN.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 45 mm
- Width: 22 mm
- Basic dynamic load rating: 36.5 kN
- Basic static load rating: 36.5 kN
INA RNA4905 needle roller bearing for Heidelberg
INA RNA4905 bearing, Needle roller bearing, dimension: 30mm x 42mm x17mm.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 42 mm
- Width: 17 mm
- Basic dynamic load rating: 26.5 kN
- Basic static load rating: 26.5 kN
INA NK14/16-D-XL needle bearings
Nodes bearings have INA NK14/16-D-XL bearings in stock, Needle roller bearings, light series, with improved steel cage, NK14/16-D-XL bearings dimensions: 14mm x 22mm x 16mm, Cr: 11400N, C0r: 11500N.
- Brand: INA
- Inside Diameter: 14 mm
- Outside Diameter: 22 mm
- Width: 16 mm
- Basic dynamic load rating: 11.4 kN
- Basic static load rating: 11.4 kN
INA NK20/16-D-XL needle bearings
Nodes bearings have INA NK20/16-D-XL bearings in stock, Needle roller bearings, light series, with improved steel cage, NK20/16-D-XL bearings dimensions: 20mm x 28mm x 16mm, Cr: 14600N, C0r: 17500N.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 28 mm
- Width: 16 mm
- Basic dynamic load rating: 14.6 kN
- Basic static load rating: 14.6 kN
INA NK28/20-D-XL needle bearings
Nodes bearings have INA NK28/20-D-XL bearings in stock, Needle roller bearings, light series, with improved steel cage, NK28/20-D-XL bearings dimensions: 28mm x 37mm x 20mm, Cr: 24800N, C0r: 34000N.
- Brand: INA
- Inside Diameter: 28 mm
- Outside Diameter: 37 mm
- Width: 20 mm
- Basic dynamic load rating: 24.8 kN
- Basic static load rating: 24.8 kN
INA NK37/20-D-XL needle bearings
Nodes bearings have INA NK37/20-D-XL bearings in stock, Needle roller bearings, light series, with improved steel cage, NK37/20-D-XL bearings dimensions: 37mm x 47mm x 20mm, Cr: 28000N, C0r: 43500N.
- Brand: INA
- Inside Diameter: 37 mm
- Outside Diameter: 47 mm
- Width: 20 mm
- Basic dynamic load rating: 28 kN
- Basic static load rating: 28 kN
INA NK55/25-D-XL needle bearings
Nodes bearings have INA NK55/25-D-XL bearings in stock, Needle roller bearings, light series, with improved steel cage, NK55/25-D-XL bearings dimensions: 55mm x 68mm x 25mm, Cr: 45500N, C0r: 82000N.
- Brand: INA
- Inside Diameter: 55 mm
- Outside Diameter: 68 mm
- Width: 25 mm
- Basic dynamic load rating: 45.5 kN
- Basic static load rating: 45.5 kN
INA NK30/20-TW-XL needle bearings
Nodes bearings have INA NK30/20-TW-XL bearings in stock, Needle roller bearings, light series, with plastic cage, two short needle rollers per cage pocket, NK30/20-TW-XL bearings dimensions: 30mm x 40mm x 20mm, Cr: 28000N, C0r: 41000N.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 40 mm
- Width: 20 mm
- Basic dynamic load rating: 28 kN
- Basic static load rating: 28 kN
INA NA4900-XL needle bearings
Nodes bearings have INA NA4900-XL bearings in stock, Needle roller bearings, NA4900-XL bearings dimensions: 10mm x 22mm x 13mm, Cr: 9600N, C0r: 9200N.
- Brand: INA
- Inside Diameter: 10 mm
- Outside Diameter: 22 mm
- Width: 13 mm
- Basic dynamic load rating: 9.6 kN
- Basic static load rating: 9.6 kN
INA NA4902-XL needle bearings
Nodes bearings have INA NA4902-XL bearings in stock, Needle roller bearings, NA4902-XL bearings dimensions: 15mm x 28mm x 13mm, Cr: 12000N, C0r: 13600N.
- Brand: INA
- Inside Diameter: 15 mm
- Outside Diameter: 28 mm
- Width: 13 mm
- Basic dynamic load rating: 12 kN
- Basic static load rating: 12 kN
INA NA4903-XL needle bearings
Nodes bearings have INA NA4903-XL bearings in stock, Needle roller bearings, NA4903-XL bearings dimensions: 17mm x 30mm x 13mm, Cr: 12400N, C0r: 14600N.
- Brand: INA
- Inside Diameter: 17 mm
- Outside Diameter: 30 mm
- Width: 13 mm
- Basic dynamic load rating: 12.4 kN
- Basic static load rating: 12.4 kN
INA NA49/28-XL needle bearings
Nodes bearings have INA NA49/28-XL bearings in stock, Needle roller bearings, NA49/28-XL bearings dimensions: 28mm x 45mm x 17mm, Cr: 27500N, C0r: 33500N.
- Brand: INA
- Inside Diameter: 28 mm
- Outside Diameter: 45 mm
- Width: 17 mm
- Basic dynamic load rating: 27.5 kN
- Basic static load rating: 27.5 kN
INA NA4906-XL needle bearings
Nodes bearings have INA NA4906-XL bearings in stock, Needle roller bearings, NA4906-XL bearings dimensions: 30mm x 47mm x 17mm, Cr: 28500N, C0r: 35500N.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 47 mm
- Width: 17 mm
- Basic dynamic load rating: 28.5 kN
- Basic static load rating: 28.5 kN
INA NA49/32-XL needle bearings
Nodes bearings have INA NA49/32-XL bearings in stock, Needle roller bearings, NA49/32-XL bearings dimensions: 32mm x 52mm x 20mm, Cr: 34500N, C0r: 47500N.
- Brand: INA
- Inside Diameter: 32 mm
- Outside Diameter: 52 mm
- Width: 20 mm
- Basic dynamic load rating: 34.5 kN
- Basic static load rating: 34.5 kN
INA NA4907-XL needle bearings
Nodes bearings have INA NA4907-XL bearings in stock, Needle roller bearings, NA4907-XL bearings dimensions: 35mm x 55mm x 20mm, Cr: 35500N, C0r: 50000N.
- Brand: INA
- Inside Diameter: 35 mm
- Outside Diameter: 55 mm
- Width: 20 mm
- Basic dynamic load rating: 35.5 kN
- Basic static load rating: 35.5 kN
INA NA4908-XL needle bearings
Nodes bearings have INA NA4908-XL bearings in stock, Needle roller bearings, NA4908-XL bearings dimensions: 40mm x 62mm x 22mm, Cr: 48500N, C0r: 67000N.
- Brand: INA
- Inside Diameter: 40 mm
- Outside Diameter: 62 mm
- Width: 22 mm
- Basic dynamic load rating: 48.5 kN
- Basic static load rating: 48.5 kN
INA NA4910-XL needle bearings
Nodes bearings have INA NA4910-XL bearings in stock, Needle roller bearings, NA4910-XL bearings dimensions: 50mm x 72mm x 22mm, Cr: 53000N, C0r: 80000N.
- Brand: INA
- Inside Diameter: 50 mm
- Outside Diameter: 72 mm
- Width: 22 mm
- Basic dynamic load rating: 53 kN
- Basic static load rating: 53 kN
INA NA4912-XL needle bearings
Nodes bearings have INA NA4912-XL bearings in stock, Needle roller bearings, NA4912-XL bearings dimensions: 60mm x 85mm x 25mm, Cr: 68000N, C0r: 108000N.
- Brand: INA
- Inside Diameter: 60 mm
- Outside Diameter: 85 mm
- Width: 25 mm
- Basic dynamic load rating: 68 kN
- Basic static load rating: 68 kN
INA NA4913-XL needle bearings
Nodes bearings have INA NA4913-XL bearings in stock, Needle roller bearings, NA4913-XL bearings dimensions: 65mm x 90mm x 25mm, Cr: 69000N, C0r: 112000N.
- Brand: INA
- Inside Diameter: 65 mm
- Outside Diameter: 90 mm
- Width: 25 mm
- Basic dynamic load rating: 69 kN
- Basic static load rating: 69 kN
INA NA4914-XL needle bearings
Nodes bearings have INA NA4914-XL bearings in stock, Needle roller bearings, NA4914-XL bearings dimensions: 70mm x 100mm x 30mm, Cr: 95000N, C0r: 156000N.
- Brand: INA
- Inside Diameter: 70 mm
- Outside Diameter: 100 mm
- Width: 30 mm
- Basic dynamic load rating: 95 kN
- Basic static load rating: 95 kN
INA NA4915-XL needle bearings
Nodes bearings have INA NA4915-XL bearings in stock, Needle roller bearings, NA4915-XL bearings dimensions: 75mm x 105mm x 30mm, Cr: 97000N, C0r: 162000N.
- Brand: INA
- Inside Diameter: 75 mm
- Outside Diameter: 105 mm
- Width: 30 mm
- Basic dynamic load rating: 97 kN
- Basic static load rating: 97 kN
INA NA4916-XL needle bearings
Nodes bearings have INA NA4916-XL bearings in stock, Needle roller bearings, NA4916-XL bearings dimensions: 80mm x 110mm x 30mm, Cr: 101000N, C0r: 174000N.
- Brand: INA
- Inside Diameter: 80 mm
- Outside Diameter: 110 mm
- Width: 30 mm
- Basic dynamic load rating: 101 kN
- Basic static load rating: 101 kN
INA NA4917-XL needle bearings
Nodes bearings have INA NA4917-XL bearings in stock, Needle roller bearings, NA4917-XL bearings dimensions: 85mm x 120mm x 35mm, Cr: 125000N, C0r: 237000N.
- Brand: INA
- Inside Diameter: 85 mm
- Outside Diameter: 120 mm
- Width: 35 mm
- Basic dynamic load rating: 125 kN
- Basic static load rating: 125 kN
INA NA4918-XL needle bearings
Nodes bearings have INA NA4918-XL bearings in stock, Needle roller bearings, NA4918-XL bearings dimensions: 90mm x 125mm x 35mm, Cr: 129000N, C0r: 250000N.
- Brand: INA
- Inside Diameter: 90 mm
- Outside Diameter: 125 mm
- Width: 35 mm
- Basic dynamic load rating: 129 kN
- Basic static load rating: 129 kN
INA NA4919-XL needle bearings
Nodes bearings have INA NA4919-XL bearings in stock, Needle roller bearings, NA4919-XL bearings dimensions: 95mm x 130mm x 35mm, Cr: 131000N, C0r: 260000N.
- Brand: INA
- Inside Diameter: 95 mm
- Outside Diameter: 130 mm
- Width: 35 mm
- Basic dynamic load rating: 131 kN
- Basic static load rating: 131 kN
INA NA4920-XL needle bearings
Nodes bearings have INA NA4920-XL bearings in stock, Needle roller bearings, NA4920-XL bearings dimensions: 100mm x 140mm x 40mm, Cr: 144000N, C0r: 270000N.
- Brand: INA
- Inside Diameter: 100 mm
- Outside Diameter: 140 mm
- Width: 40 mm
- Basic dynamic load rating: 144 kN
- Basic static load rating: 144 kN
INA NA4922-XL needle bearings
Nodes bearings have INA NA4922-XL bearings in stock, Needle roller bearings, NA4922-XL bearings dimensions: 110mm x 150mm x 40mm, Cr: 149000N, C0r: 290000N.
- Brand: INA
- Inside Diameter: 110 mm
- Outside Diameter: 150 mm
- Width: 40 mm
- Basic dynamic load rating: 149 kN
- Basic static load rating: 149 kN
INA NA4924-XL needle bearings
Nodes bearings have INA NA4924-XL bearings in stock, Needle roller bearings, NA4924-XL bearings dimensions: 120mm x 165mm x 45mm, Cr: 205000N, C0r: 390000N.
- Brand: INA
- Inside Diameter: 120 mm
- Outside Diameter: 165 mm
- Width: 45 mm
- Basic dynamic load rating: 205 kN
- Basic static load rating: 205 kN
INA NKI55/25-TW-XL needle bearings
Nodes bearings have INA NKI55/25-TW-XL bearings in stock, Needle roller bearings, Light series, with plastic cage, two short needle rollers per cage pocket, NKI55/25-TW-XL bearings dimensions: 55mm x 72mm x 25mm, Cr: 53000N, C0r: 103000N.
- Brand: INA
- Inside Diameter: 55 mm
- Outside Diameter: 72 mm
- Width: 25 mm
- Basic dynamic load rating: 53 kN
- Basic static load rating: 53 kN
