NSK 6305ZZ Bearing

NSK 6305ZZ Deep groove ball bearings

Also known as : 6305ZZ, 6305-2Z

  • Inside Diameter: 25 mm
  • Outside Diameter: 62 mm
  • Width: 17 mm
  • Basic dynamic load rating: 20.6 kN
  • Basic static load rating: 11.2 kN

Inquire Now


NSK 6305ZZ Bearing

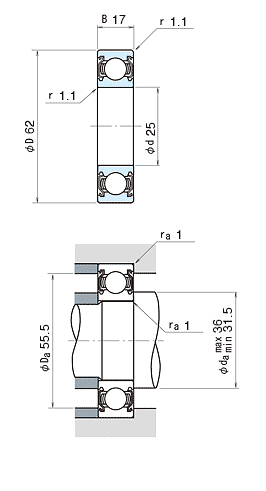

NSK 6305ZZ Bearing details

model 6305ZZ
d 25 mm
D 62 mm
B 17 mm
rmin. 1.1 mm
Cr 20600 N
2100 kgf
C0r 11200 N
1150 kgf
Limiting speeds 11000 min-1 (Grease)
f0 13.2 (Factor)
da min 31.5 mm
da max 36 mm
Da 55.5 mm
ra 1 mm
Mass 0.235 kg (approx.)

NSK 6305ZZ ball bearings, deep groove ball bearing, Single-Row, ZZ: With Two Shielded.

NSK 6305ZZ bearing cross reference

NSK 6205DDU bearing
25mm x 52mm x 15mm
NSK 6205ZZ bearing
25mm x 52mm x 15mm
NSK 6205ZZC3 bearing
25mm x 52mm x 15mm
NSK 6805ZZ bearing
25mm x 37mm x 7mm
NSK 6905ZZ bearing
25mm x 42mm x 9mm
SKF 6305-2Z bearing
25mm x 62mm x 17mm
SKF 6305-2RS1 bearing
25mm x 62mm x 17mm
SKF 6305-2RS1/C3 bearing
25mm x 62mm x 17mm
NSK 6805 bearing
25mm x 37mm x 7mm
NSK 6905 bearing
25mm x 42mm x 9mm
NSK 6205 bearing
25mm x 52mm x 15mm
NSK 6305 bearing
25mm x 62mm x 17mm
