NSK 6805ZZ Bearing

NSK 6805ZZ Deep groove ball bearings

Also known as : 6805ZZ, 61805-2Z

  • Inside Diameter: 25 mm
  • Outside Diameter: 37 mm
  • Width: 7 mm
  • Basic dynamic load rating: 4.5 kN
  • Basic static load rating: 3.15 kN

Inquire Now


NSK 6805ZZ Bearing

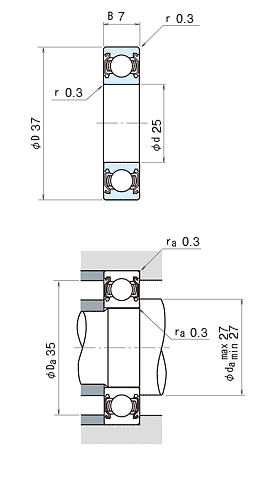

NSK 6805ZZ Bearing details

model 6805ZZ
d 25 mm
D 37 mm
B 7 mm
rmin. 0.3 mm
Cr 4500 N
455 kgf
C0r 3150 N
320 kgf
Limiting speeds 18000 min-1 (Grease)
f0 16.1 (Factor)
da min 27 mm
da max 27 mm
Da 35 mm
ra 0.3 mm
Mass 0.021 kg (approx.)

NSK 6805ZZ ball bearings, deep groove ball bearing, Single-Row, ZZ: With Two Shielded.
