NSK 6905ZZ Deep groove ball bearings
Also known as : 6905ZZ, 61905-2Z
- Inside Diameter: 25 mm
- Outside Diameter: 42 mm
- Width: 9 mm
- Basic dynamic load rating: 7.05 kN
- Basic static load rating: 4.55 kN
NSK 6905ZZ Bearing

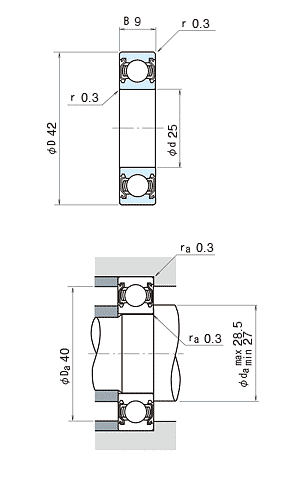

NSK 6905ZZ Bearing details
model | 6905ZZ |
---|---|
d | 25 mm |
D | 42 mm |
B | 9 mm |
rmin. | 0.3 mm |
Cr |
7050 N 715 kgf |
C0r |
4550 N 460 kgf |
Limiting speeds | 16000 min-1 (Grease) |
f0 | 15.4 (Factor) |
da min | 27 mm |
da max | 28.5 mm |
Da | 40 mm |
ra | 0.3 mm |
Mass | 0.042 kg (approx.) |
NSK 6905ZZ ball bearings, deep groove ball bearing, Single-Row, ZZ: With Two Shielded.
