NSK 6310DDUC3 Deep groove ball bearings
Also known as : 6310DDU, 6310LLUC3, 6310-2RS1C3, 6310-2RSRC3
- Inside Diameter: 50 mm
- Outside Diameter: 110 mm
- Width: 27 mm
- Basic dynamic load rating: 62 kN
- Basic static load rating: 38.5 kN
NSK 6310DDUC3 Bearing

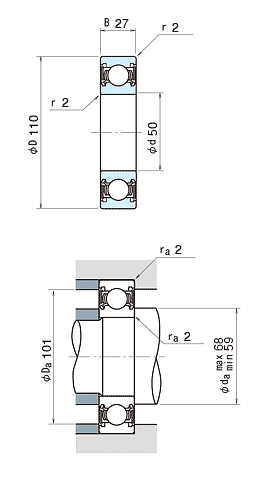

NSK 6310DDUC3 Bearing details
model | 6310DDUC3 |
---|---|
d | 50 mm |
D | 110 mm |
B | 27 mm |
rmin. | 2.0 mm |
Cr |
62000 N 6300 kgf |
C0r |
38500 N 3900 kgf |
Limiting speeds | 4300 min-1 (Grease) |
f0 | 13.2 (Factor) |
da min | 59 mm |
da max | 68 mm |
Da | 101 mm |
ra | 2 mm |
Mass | 1.060 kg (approx.) |
NSK 6310DDUC3 ball bearings, deep groove ball bearing, Single-Row, DDU: With Two Contact Sealed.
