NSK 6310ZZ Bearing

NSK 6310ZZ Deep groove ball bearings

Also known as : 6310ZZ, 6310-2Z

• Inside Diameter: 50 mm
• Outside Diameter: 110 mm
• Width: 27 mm
• Basic dynamic load rating: 62 kN
• Basic static load rating: 38.5 kN

Inquire Now

NSK 6310ZZ Bearing

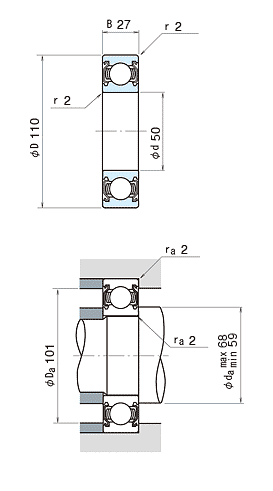

model	6310ZZ
d	50 mm
D	110 mm
B	27 mm
rmin.	2.0 mm
Cr	62000 N 6300 kgf
C0r	38500 N 3900 kgf
Limiting speeds	6000 min-1 (Grease)
f0	13.2 (Factor)
da min	59 mm
da max	68 mm
Da	101 mm
ra	2 mm
Mass	1.060 kg (approx.)

NSK 6310ZZ ball bearings, deep groove ball bearing, Single-Row, ZZ: With Two Shielded.
