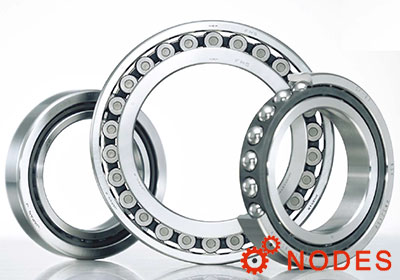

NSK super precision bearings | NSK spindle bearings

7020A5TYNSULP4 NSK super precision bearings, A5 :Contact Angle of 25°, 7020A5TYNSULP4 bearings dimensions: 100x150x24mm

Inquire Now

• Brand: NSK
• Inside Diameter: 100 mm
• Outside Diameter: 150 mm
• Width: 24 mm
• Basic dynamic load rating: 75 kN
• Basic static load rating: 75 kN

7202CTYNSULP4 NSK super precision bearings, in stock, Angular Contact Ball Bearings, C :Contact Angle of 15°, 7202CTYNSULP4 dimensions: 15x35x11mm.

Inquire Now

• Brand: NSK
• Inside Diameter: 15 mm
• Outside Diameter: 35 mm
• Width: 11 mm
• Basic dynamic load rating: 9.1 kN
• Basic static load rating: 9.1 kN

7205CTYNSULP4 NSK super precision bearings, in stock, Contact Angle of 15°, 7205CTYNSULP4 NSK bearing dimensions: 25x52x15mm.

Inquire Now

• Brand: NSK
• Inside Diameter: 25 mm
• Outside Diameter: 52 mm
• Width: 15 mm
• Basic dynamic load rating: 17.4 kN
• Basic static load rating: 17.4 kN

7026A5TYNSULP4 NSK bearings, in stock, A5 :Contact Angle of 25°, 7026A5TYNSULP4 dimensions: 130x200x33mm.

Inquire Now

• Brand: NSK
• Inside Diameter: 130 mm
• Outside Diameter: 200 mm
• Width: 33 mm
• Basic dynamic load rating: 128 kN
• Basic static load rating: 128 kN

7209CTYNSULP4 NSK bearings, in stock, super precision bearing, C :Contact Angle of 15°, 7209CTYNSULP4 dimensions: 45x85x19mm.

Inquire Now

• Brand: NSK
• Inside Diameter: 45 mm
• Outside Diameter: 85 mm
• Width: 19 mm
• Basic dynamic load rating: 43 kN
• Basic static load rating: 43 kN

7211CTYNSULP4 NSK super precision bearings, in stock, Contact Angle of 15°, 7211CTYNSULP4 dimensions: 55x100x21mm

Inquire Now

• Brand: NSK
• Inside Diameter: 55 mm
• Outside Diameter: 100 mm
• Width: 21 mm
• Basic dynamic load rating: 55.5 kN
• Basic static load rating: 55.5 kN

7212CTYNSULP4 NSK super precision bearings, in stock, 7212CTYNSULP4 dimensions: 60x110x22mm, Contact Angle of 15°, ISO class 4 accuracy.

Inquire Now

• Brand: NSK
• Inside Diameter: 60 mm
• Outside Diameter: 110 mm
• Width: 22 mm
• Basic dynamic load rating: 67.5 kN
• Basic static load rating: 67.5 kN

7214CTYNSULP4 NSK super precision bearings, in stock, C :Contact Angle of 15°, 7214CTYNSULP4 dimensions: 70x125x24mm.

Inquire Now

• Brand: NSK
• Inside Diameter: 70 mm
• Outside Diameter: 125 mm
• Width: 24 mm
• Basic dynamic load rating: 83.5 kN
• Basic static load rating: 83.5 kN

7215CTYNSULP4 NSK bearings, in stock, super precision bearings, C :Contact Angle of 15°, ISO P4.

Inquire Now

• Brand: NSK
• Inside Diameter: 75 mm
• Outside Diameter: 130 mm
• Width: 25 mm
• Basic dynamic load rating: 87 kN
• Basic static load rating: 87 kN

7900CTYNSULP4 NSK bearings, in stock, Angular Contact Ball Bearings, C :Contact Angle of 15°, 7900CTYNSULP4 bearing's dimensions: 10x22x6mm.

Inquire Now

• Brand: NSK
• Inside Diameter: 10 mm
• Outside Diameter: 22 mm
• Width: 6 mm
• Basic dynamic load rating: 3.15 kN
• Basic static load rating: 3.15 kN

7905CTYNSULP4 NSK super precision bearings, in stock, Angular Contact Ball Bearings, Contact Angle of 15°,Universal conbination bearing, 7905CTYNSULP4 dimensions: 25x42x9mm.

Inquire Now

• Brand: NSK
• Inside Diameter: 25 mm
• Outside Diameter: 42 mm
• Width: 9 mm
• Basic dynamic load rating: 8.25 kN
• Basic static load rating: 8.25 kN

7915CTYNSULP4 NSK bearings, in stock, angular contact ball bearings, Accuracy: ISO class 4, 7915CTYNSULP4 dimensions: 75x105x16mm.

Inquire Now

• Brand: NSK
• Inside Diameter: 75 mm
• Outside Diameter: 105 mm
• Width: 16 mm
• Basic dynamic load rating: 30 kN
• Basic static load rating: 30 kN

7016CTYNSULP4 NSK super precision bearings, in stock, 7016CTYNSULP4 dimensions: 80x125x22mm, Light preload, Accuracy: ISO class 4

Inquire Now

• Brand: NSK
• Inside Diameter: 80 mm
• Outside Diameter: 125 mm
• Width: 22 mm
• Basic dynamic load rating: 61.5 kN
• Basic static load rating: 61.5 kN

7016A5TYNSUMP4 NSK angular contact ball bearings, in stock, A5: Contact Angle of 25°, Universal conbination bearing, Medium Preload, ISO class 4, 80x125x22mm

Inquire Now

• Brand: NSK
• Inside Diameter: 80 mm
• Outside Diameter: 125 mm
• Width: 22 mm
• Basic dynamic load rating: 58.5 kN
• Basic static load rating: 58.5 kN

7016A5TYNSULP4 NSK super precision bearings, in stock, Angular contact ball bearing, A5: Contact Angle of 25°, 80x125x22mm, ISO Class 4.

Inquire Now

• Brand: NSK
• Inside Diameter: 80 mm
• Outside Diameter: 125 mm
• Width: 22 mm
• Basic dynamic load rating: 58.5 kN
• Basic static load rating: 58.5 kN

NSK 7015A5TYNSULP4 angular contact ball bearings, 75 x 115 x 20 mm, A5: Contact Angle of 25°, Universal conbination bearing, Light preload, Accuracy: ISO class 4

Inquire Now

• Brand: NSK
• Inside Diameter: 75 mm
• Outside Diameter: 115 mm
• Width: 20 mm
• Basic dynamic load rating: 47.5 kN
• Basic static load rating: 47.5 kN

NSK 7024CTYNSULP4 angular contact ball bearings, 120x180x28mm, C: Contact Angle of 15°, Universal conbination bearing, Light preload, Accuracy: ISO class 4

Inquire Now

• Brand: NSK
• Inside Diameter: 120 mm
• Outside Diameter: 180 mm
• Width: 28 mm
• Basic dynamic load rating: 118 kN
• Basic static load rating: 118 kN

NSK 20TAC47CSUHPN7C bearing, Ball Screw Support Bearings, Open type, Dimensions: 20mm x 47mm x 15mm, Limiting Speeds:6900.

Inquire Now

• Brand: NSK
• Inside Diameter: 20 mm
• Outside Diameter: 47 mm
• Width: 15 mm
• Basic dynamic load rating: 23 kN
• Basic static load rating: 23 kN

NSK 25TAC62BSUC10PN7B bearing, Ball Screw Support Bearings, Open type, Dimensions: 25mm x 62mm x 15mm, Limiting Speeds:5200.

Inquire Now

• Brand: NSK
• Inside Diameter: 25 mm
• Outside Diameter: 62 mm
• Width: 15 mm
• Basic dynamic load rating: 29.9 kN
• Basic static load rating: 29.9 kN

NSK 30TAC62BSUC10PN7B bearing, Ball Screw Support Bearings, Open type, Dimensions: 30mm x 62mm x 15mm, Limiting Speeds:4900.

Inquire Now

• Brand: NSK
• Inside Diameter: 30 mm
• Outside Diameter: 62 mm
• Width: 15 mm
• Basic dynamic load rating: 30.5 kN
• Basic static load rating: 30.5 kN

NSK 35TAC72BSUC10PN7B bearing, Ball Screw Support Bearings, Open type, Dimensions: 35mm x 72mm x 15mm, Limiting Speeds:4100.

Inquire Now

• Brand: NSK
• Inside Diameter: 35 mm
• Outside Diameter: 72 mm
• Width: 15 mm
• Basic dynamic load rating: 32.5 kN
• Basic static load rating: 32.5 kN

NSK 40TAC72BSUC10PN7B bearing, Ball Screw Support Bearings, Open type, Dimensions: 40mm x 72mm x 15mm, Limiting Speeds:4100.

Inquire Now

• Brand: NSK
• Inside Diameter: 40 mm
• Outside Diameter: 72 mm
• Width: 15 mm
• Basic dynamic load rating: 33.5 kN
• Basic static load rating: 33.5 kN

NSK 40TAC90BSUC10PN7B bearing, Ball Screw Support Bearings, Open type, Dimensions: 40mm x 90mm x 20mm, Limiting Speeds:3500.

Inquire Now

• Brand: NSK
• Inside Diameter: 40 mm
• Outside Diameter: 90 mm
• Width: 20 mm
• Basic dynamic load rating: 62 kN
• Basic static load rating: 62 kN

NSK 45TAC100BSUC10PN7B bearing, Ball Screw Support Bearings, Open type, Dimensions: 45mm x 100mm x 20mm, Limiting Speeds:3000.

Inquire Now

• Brand: NSK
• Inside Diameter: 45 mm
• Outside Diameter: 100 mm
• Width: 20 mm
• Basic dynamic load rating: 64.5 kN
• Basic static load rating: 64.5 kN

NSK 30TAC62CDDGSUHPN7C bearing, Ball Screw Support Bearings, Sealed type, Dimensions: 30mm x 62mm x 15mm, Limiting Speeds:4900.

Inquire Now

• Brand: NSK
• Inside Diameter: 30 mm
• Outside Diameter: 62 mm
• Width: 15 mm
• Basic dynamic load rating: 30.5 kN
• Basic static load rating: 30.5 kN

NSK 15TAC47C bearing, Ball Screw Support Bearings, Open type, Dimensions: 15mm x 47mm x 15mm, Limiting Speeds:6900.

Inquire Now

• Brand: NSK
• Inside Diameter: 15 mm
• Outside Diameter: 47 mm
• Width: 15 mm
• Basic dynamic load rating: 23 kN
• Basic static load rating: 23 kN

NSK 17TAC47C bearing, Ball Screw Support Bearings, Open type, Dimensions: 17mm x 47mm x 15mm, Limiting Speeds:6900.

Inquire Now

• Brand: NSK
• Inside Diameter: 17 mm
• Outside Diameter: 47 mm
• Width: 15 mm
• Basic dynamic load rating: 23 kN
• Basic static load rating: 23 kN

NSK 45TAC75C bearing, Ball Screw Support Bearings, Open type, Dimensions: 45mm x 75mm x 15mm, Limiting Speeds:3700.

Inquire Now

• Brand: NSK
• Inside Diameter: 45 mm
• Outside Diameter: 75 mm
• Width: 15 mm
• Basic dynamic load rating: 34.5 kN
• Basic static load rating: 34.5 kN

NSK 50TAC100C bearing, Ball Screw Support Bearings, Open type, Dimensions: 50mm x 100mm x 20mm, Limiting Speeds:3000.

Inquire Now

• Brand: NSK
• Inside Diameter: 50 mm
• Outside Diameter: 100 mm
• Width: 20 mm
• Basic dynamic load rating: 66 kN
• Basic static load rating: 66 kN

NSK 55TAC100C bearing, Ball Screw Support Bearings, Open type, Dimensions: 55mm x 100mm x 20mm, Limiting Speeds:3000.

Inquire Now

• Brand: NSK
• Inside Diameter: 55 mm
• Outside Diameter: 100 mm
• Width: 20 mm
• Basic dynamic load rating: 66 kN
• Basic static load rating: 66 kN

NSK 55TAC120C bearing, Ball Screw Support Bearings, Open type, Dimensions: 55mm x 120mm x 20mm, Limiting Speeds:2500.

Inquire Now

• Brand: NSK
• Inside Diameter: 55 mm
• Outside Diameter: 120 mm
• Width: 20 mm
• Basic dynamic load rating: 70.5 kN
• Basic static load rating: 70.5 kN

NSK 60TAC120C bearing, Ball Screw Support Bearings, Open type, Dimensions: 60mm x 120mm x 20mm, Limiting Speeds:2500.

Inquire Now

• Brand: NSK
• Inside Diameter: 60 mm
• Outside Diameter: 120 mm
• Width: 20 mm
• Basic dynamic load rating: 70.5 kN
• Basic static load rating: 70.5 kN

NSK 15TAC47CDDG bearing, Ball Screw Support Bearings, Sealed type, Dimensions: 15mm x 47mm x 15mm, Limiting Speeds:6900.

Inquire Now

• Brand: NSK
• Inside Diameter: 15 mm
• Outside Diameter: 47 mm
• Width: 15 mm
• Basic dynamic load rating: 23 kN
• Basic static load rating: 23 kN

NSK 17TAC47CDDG bearing, Ball Screw Support Bearings, Sealed type, Dimensions: 17mm x 47mm x 15mm, Limiting Speeds:6900.

Inquire Now

• Brand: NSK
• Inside Diameter: 17 mm
• Outside Diameter: 47 mm
• Width: 15 mm
• Basic dynamic load rating: 23 kN
• Basic static load rating: 23 kN

NSK 20TAC47CDDG bearing, Ball Screw Support Bearings, Sealed type, Dimensions: 20mm x 47mm x 15mm, Limiting Speeds:6900.

Inquire Now

• Brand: NSK
• Inside Diameter: 20 mm
• Outside Diameter: 47 mm
• Width: 15 mm
• Basic dynamic load rating: 23 kN
• Basic static load rating: 23 kN

NSK 25TAC62CDDG bearing, Ball Screw Support Bearings, Sealed type, Dimensions: 25mm x 62mm x 15mm, Limiting Speeds:5200.

Inquire Now

• Brand: NSK
• Inside Diameter: 25 mm
• Outside Diameter: 62 mm
• Width: 15 mm
• Basic dynamic load rating: 29.9 kN
• Basic static load rating: 29.9 kN

NSK 35TAC72CDDG bearing, Ball Screw Support Bearings, Sealed type, Dimensions: 35mm x 72mm x 15mm, Limiting Speeds:4100.

Inquire Now

• Brand: NSK
• Inside Diameter: 35 mm
• Outside Diameter: 72 mm
• Width: 15 mm
• Basic dynamic load rating: 32.5 kN
• Basic static load rating: 32.5 kN

NSK 40TAC72CDDG bearing, Ball Screw Support Bearings, Sealed type, Dimensions: 40mm x 72mm x 15mm, Limiting Speeds:4100.

Inquire Now

• Brand: NSK
• Inside Diameter: 40 mm
• Outside Diameter: 72 mm
• Width: 15 mm
• Basic dynamic load rating: 33.5 kN
• Basic static load rating: 33.5 kN
