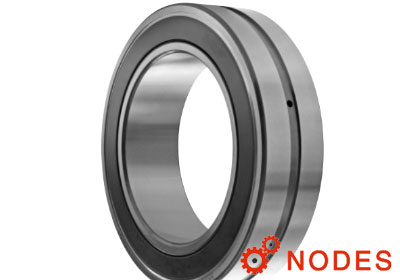

Sealed spherical roller bearings provide a high degree of reliability of the most demanding application and protect the bearing from the ingress of contaminants during handing, mounting, and operation. Sealed spherical roller bearings are ready-to-use units that are filled, under clean conditions, at the factory with a proper a mount of the correct grease. The bearings can extend service life considerably due to the cleanliness in the bearing cavity.
Series: 222, 223, 231, 240, 241
FAG WS22205-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22205-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22205-E1-XL-2RSR bearings dimensions: 25mm x 52mm x 23mm, Cr: 48500N, C0r: 42500N.
- Brand: FAG
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 23 mm
- Basic dynamic load rating: 48.5 kN
- Basic static load rating: 48.5 kN
FAG WS22206-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22206-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22206-E1-XL-2RSR bearings dimensions: 30mm x 62mm x 25mm, Cr: 64000N, C0r: 57000N.
- Brand: FAG
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 25 mm
- Basic dynamic load rating: 64 kN
- Basic static load rating: 64 kN
FAG WS22207-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22207-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22207-E1-XL-2RSR bearings dimensions: 35mm x 72mm x 28mm, Cr: 89000N, C0r: 81000N.
- Brand: FAG
- Inside Diameter: 35 mm
- Outside Diameter: 72 mm
- Width: 28 mm
- Basic dynamic load rating: 89 kN
- Basic static load rating: 89 kN
FAG WS22208-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22208-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22208-E1-XL-2RSR bearings dimensions: 40mm x 80mm x 28mm, Cr: 101000N, C0r: 91000N.
- Brand: FAG
- Inside Diameter: 40 mm
- Outside Diameter: 80 mm
- Width: 28 mm
- Basic dynamic load rating: 101 kN
- Basic static load rating: 101 kN
FAG WS22209-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22209-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22209-E1-XL-2RSR bearings dimensions: 45mm x 85mm x 28mm, Cr: 104000N, C0r: 99000N.
- Brand: FAG
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 28 mm
- Basic dynamic load rating: 104 kN
- Basic static load rating: 104 kN
FAG WS22210-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22210-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22210-E1-XL-2RSR bearings dimensions: 50mm x 90mm x 28mm, Cr: 109000N, C0r: 107000N.
- Brand: FAG
- Inside Diameter: 50 mm
- Outside Diameter: 90 mm
- Width: 28 mm
- Basic dynamic load rating: 109 kN
- Basic static load rating: 109 kN
FAG WS22211-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22211-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22211-E1-XL-2RSR bearings dimensions: 55mm x 100mm x 31mm, Cr: 129000N, C0r: 130000N.
- Brand: FAG
- Inside Diameter: 55 mm
- Outside Diameter: 100 mm
- Width: 31 mm
- Basic dynamic load rating: 129 kN
- Basic static load rating: 129 kN
FAG WS22212-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22212-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22212-E1-XL-2RSR bearings dimensions: 60mm x 110mm x 34mm, Cr: 160000N, C0r: 155000N.
- Brand: FAG
- Inside Diameter: 60 mm
- Outside Diameter: 110 mm
- Width: 34 mm
- Basic dynamic load rating: 160 kN
- Basic static load rating: 160 kN
FAG WS22213-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22213-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22213-E1-XL-2RSR bearings dimensions: 65mm x 120mm x 38mm, Cr: 202000N, C0r: 210000N.
- Brand: FAG
- Inside Diameter: 65 mm
- Outside Diameter: 120 mm
- Width: 38 mm
- Basic dynamic load rating: 202 kN
- Basic static load rating: 202 kN
FAG WS22214-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22214-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22214-E1-XL-2RSR bearings dimensions: 70mm x 125mm x 38mm, Cr: 211000N, C0r: 226000N.
- Brand: FAG
- Inside Diameter: 70 mm
- Outside Diameter: 125 mm
- Width: 38 mm
- Basic dynamic load rating: 211 kN
- Basic static load rating: 211 kN
FAG WS22215-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22215-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22215-E1-XL-2RSR bearings dimensions: 75mm x 130mm x 38mm, Cr: 216000N, C0r: 237000N.
- Brand: FAG
- Inside Diameter: 75 mm
- Outside Diameter: 130 mm
- Width: 38 mm
- Basic dynamic load rating: 216 kN
- Basic static load rating: 216 kN
FAG WS22216-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22216-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22216-E1-XL-2RSR bearings dimensions: 80mm x 140mm x 40mm, Cr: 250000N, C0r: 270000N.
- Brand: FAG
- Inside Diameter: 80 mm
- Outside Diameter: 140 mm
- Width: 40 mm
- Basic dynamic load rating: 250 kN
- Basic static load rating: 250 kN
FAG WS22217-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22217-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22217-E1-XL-2RSR bearings dimensions: 85mm x 150mm x 44mm, Cr: 305000N, C0r: 325000N.
- Brand: FAG
- Inside Diameter: 85 mm
- Outside Diameter: 150 mm
- Width: 44 mm
- Basic dynamic load rating: 305 kN
- Basic static load rating: 305 kN
FAG WS22218-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22218-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22218-E1-XL-2RSR bearings dimensions: 90mm x 160mm x 48mm, Cr: 345000N, C0r: 375000N.
- Brand: FAG
- Inside Diameter: 90 mm
- Outside Diameter: 160 mm
- Width: 48 mm
- Basic dynamic load rating: 345 kN
- Basic static load rating: 345 kN
FAG WS22220-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22220-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22220-E1-XL-2RSR bearings dimensions: 100mm x 180mm x 55mm, Cr: 430000N, C0r: 475000N.
- Brand: FAG
- Inside Diameter: 100 mm
- Outside Diameter: 180 mm
- Width: 55 mm
- Basic dynamic load rating: 430 kN
- Basic static load rating: 430 kN
FAG WS22222-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22222-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22222-E1-XL-2RSR bearings dimensions: 110mm x 200mm x 63mm, Cr: 550000N, C0r: 600000N.
- Brand: FAG
- Inside Diameter: 110 mm
- Outside Diameter: 200 mm
- Width: 63 mm
- Basic dynamic load rating: 550 kN
- Basic static load rating: 550 kN
FAG WS22224-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22224-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22224-E1-XL-2RSR bearings dimensions: 120mm x 215mm x 69mm, Cr: 640000N, C0r: 740000N.
- Brand: FAG
- Inside Diameter: 120 mm
- Outside Diameter: 215 mm
- Width: 69 mm
- Basic dynamic load rating: 640 kN
- Basic static load rating: 640 kN
FAG WS22226-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22226-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22226-E1-XL-2RSR bearings dimensions: 130mm x 230mm x 75mm, Cr: 760000N, C0r: 890000N.
- Brand: FAG
- Inside Diameter: 130 mm
- Outside Diameter: 230 mm
- Width: 75 mm
- Basic dynamic load rating: 760 kN
- Basic static load rating: 760 kN
FAG WS22308-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22308-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22308-E1-XL-2RSR bearings dimensions: 40mm x 90mm x 38mm, Cr: 156000N, C0r: 149000N.
- Brand: FAG
- Inside Diameter: 40 mm
- Outside Diameter: 90 mm
- Width: 38 mm
- Basic dynamic load rating: 156 kN
- Basic static load rating: 156 kN
FAG WS22311-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22311-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22311-E1-XL-2RSR bearings dimensions: 55mm x 120mm x 49mm, Cr: 265000N, C0r: 260000N.
- Brand: FAG
- Inside Diameter: 55 mm
- Outside Diameter: 120 mm
- Width: 49 mm
- Basic dynamic load rating: 265 kN
- Basic static load rating: 265 kN
FAG WS22312-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22312-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22312-E1-XL-2RSR bearings dimensions: 60mm x 130mm x 53mm, Cr: 310000N, C0r: 310000N.
- Brand: FAG
- Inside Diameter: 60 mm
- Outside Diameter: 130 mm
- Width: 53 mm
- Basic dynamic load rating: 310 kN
- Basic static load rating: 310 kN
FAG WS22314-E1-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG WS22314-E1-XL-2RSR bearings in stock, sealed spherical roller bearings, WS22314-E1-XL-2RSR bearings dimensions: 70mm x 150mm x 60mm, Cr: 390000N, C0r: 390000N.
- Brand: FAG
- Inside Diameter: 70 mm
- Outside Diameter: 150 mm
- Width: 60 mm
- Basic dynamic load rating: 390 kN
- Basic static load rating: 390 kN
FAG 22228-E1A-XL-2RSR-M sealed spherical roller bearings
Nodes bearings have FAG 22228-E1A-XL-2RSR-M bearings in stock, sealed spherical roller bearings, 22228-E1A-XL-2RSR-M bearings dimensions: 140mm x 250mm x 68mm, Cr: 830000N, C0r: 970000N.
- Brand: FAG
- Inside Diameter: 140 mm
- Outside Diameter: 250 mm
- Width: 68 mm
- Basic dynamic load rating: 830 kN
- Basic static load rating: 830 kN
FAG 22232-E1A-XL-2RSR-M sealed spherical roller bearings
Nodes bearings have FAG 22232-E1A-XL-2RSR-M bearings in stock, sealed spherical roller bearings, 22232-E1A-XL-2RSR-M bearings dimensions: 160mm x 290mm x 80mm, Cr: 1080000N, C0r: 1300000N.
- Brand: FAG
- Inside Diameter: 160 mm
- Outside Diameter: 290 mm
- Width: 80 mm
- Basic dynamic load rating: 1080 kN
- Basic static load rating: 1080 kN
FAG 23140-BE-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG 23140-BE-XL-2RSR bearings in stock, sealed spherical roller bearings, 23140-BE-XL-2RSR bearings dimensions: 200mm x 340mm x 112mm, Cr: 1620000N, C0r: 2270000N.
- Brand: FAG
- Inside Diameter: 200 mm
- Outside Diameter: 340 mm
- Width: 112 mm
- Basic dynamic load rating: 1620 kN
- Basic static load rating: 1620 kN
FAG 23144-BE-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG 23144-BE-XL-2RSR bearings in stock, sealed spherical roller bearings, 23144-BE-XL-2RSR bearings dimensions: 220mm x 370mm x 120mm, Cr: 1860000N, C0r: 2700000N.
- Brand: FAG
- Inside Diameter: 220 mm
- Outside Diameter: 370 mm
- Width: 120 mm
- Basic dynamic load rating: 1860 kN
- Basic static load rating: 1860 kN
FAG 23148-BE-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG 23148-BE-XL-2RSR bearings in stock, sealed spherical roller bearings, 23148-BE-XL-2RSR bearings dimensions: 240mm x 400mm x 128mm, Cr: 2140000N, C0r: 3150000N.
- Brand: FAG
- Inside Diameter: 240 mm
- Outside Diameter: 400 mm
- Width: 128 mm
- Basic dynamic load rating: 2140 kN
- Basic static load rating: 2140 kN
FAG 23152-BE-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG 23152-BE-XL-2RSR bearings in stock, sealed spherical roller bearings, 23152-BE-XL-2RSR bearings dimensions: 260mm x 440mm x 144mm, Cr: 2600000N, C0r: 3900000N.
- Brand: FAG
- Inside Diameter: 260 mm
- Outside Diameter: 440 mm
- Width: 144 mm
- Basic dynamic load rating: 2600 kN
- Basic static load rating: 2600 kN
FAG 23156-BE-XL-2RSR sealed spherical roller bearings
Nodes bearings have FAG 23156-BE-XL-2RSR bearings in stock, sealed spherical roller bearings, 23156-BE-XL-2RSR bearings dimensions: 280mm x 460mm x 146mm, Cr: 2750000N, C0r: 4200000N.
- Brand: FAG
- Inside Diameter: 280 mm
- Outside Diameter: 460 mm
- Width: 146 mm
- Basic dynamic load rating: 2750 kN
- Basic static load rating: 2750 kN
FAG 23160-BEA-XL-2RSR-MB1 sealed spherical roller bearings
Nodes bearings have FAG 23160-BEA-XL-2RSR-MB1 bearings in stock, sealed spherical roller bearings, 23160-BEA-XL-2RSR-MB1 bearings dimensions: 300mm x 500mm x 160mm, Cr: 3250000N, C0r: 4950000N.
- Brand: FAG
- Inside Diameter: 300 mm
- Outside Diameter: 500 mm
- Width: 160 mm
- Basic dynamic load rating: 3250 kN
- Basic static load rating: 3250 kN
FAG 23164-BEA-XL-2RSR-MB1 sealed spherical roller bearings
Nodes bearings have FAG 23164-BEA-XL-2RSR-MB1 bearings in stock, sealed spherical roller bearings, 23164-BEA-XL-2RSR-MB1 bearings dimensions: 320mm x 540mm x 176mm, Cr: 3800000N, C0r: 5900000N.
- Brand: FAG
- Inside Diameter: 320 mm
- Outside Diameter: 540 mm
- Width: 176 mm
- Basic dynamic load rating: 3800 kN
- Basic static load rating: 3800 kN
FAG 23168-BEA-XL-2RSR-MB1 sealed spherical roller bearings
Nodes bearings have FAG 23168-BEA-XL-2RSR-MB1 bearings in stock, sealed spherical roller bearings, 23168-BEA-XL-2RSR-MB1 bearings dimensions: 340mm x 580mm x 190mm, Cr: 4400000N, C0r: 6600000N.
- Brand: FAG
- Inside Diameter: 340 mm
- Outside Diameter: 580 mm
- Width: 190 mm
- Basic dynamic load rating: 4400 kN
- Basic static load rating: 4400 kN
FAG 23172-BEA-XL-2RSR-MB1 sealed spherical roller bearings
Nodes bearings have FAG 23172-BEA-XL-2RSR-MB1 bearings in stock, sealed spherical roller bearings, 23172-BEA-XL-2RSR-MB1 bearings dimensions: 360mm x 600mm x 192mm, Cr: 4550000N, C0r: 7100000N.
- Brand: FAG
- Inside Diameter: 360 mm
- Outside Diameter: 600 mm
- Width: 192 mm
- Basic dynamic load rating: 4550 kN
- Basic static load rating: 4550 kN
FAG 23176-BEA-XL-2RSR-MB1 sealed spherical roller bearings
Nodes bearings have FAG 23176-BEA-XL-2RSR-MB1 bearings in stock, sealed spherical roller bearings, 23176-BEA-XL-2RSR-MB1 bearings dimensions: 380mm x 620mm x 194mm, Cr: 4750000N, C0r: 7600000N.
- Brand: FAG
- Inside Diameter: 380 mm
- Outside Diameter: 620 mm
- Width: 194 mm
- Basic dynamic load rating: 4750 kN
- Basic static load rating: 4750 kN
FAG 23180-BEA-XL-2RSR-MB1 sealed spherical roller bearings
Nodes bearings have FAG 23180-BEA-XL-2RSR-MB1 bearings in stock, sealed spherical roller bearings, 23180-BEA-XL-2RSR-MB1 bearings dimensions: 400mm x 650mm x 200mm, Cr: 5100000N, C0r: 8100000N.
- Brand: FAG
- Inside Diameter: 400 mm
- Outside Diameter: 650 mm
- Width: 200 mm
- Basic dynamic load rating: 5100 kN
- Basic static load rating: 5100 kN
FAG 24024-BE-XL-2VSR sealed spherical roller bearings
Nodes bearings have FAG 24024-BE-XL-2VSR bearings in stock, sealed spherical roller bearings, 24024-BE-XL-2VSR bearings dimensions: 120mm x 180mm x 60mm, Cr: 450000N, C0r: 690000N.
- Brand: FAG
- Inside Diameter: 120 mm
- Outside Diameter: 180 mm
- Width: 60 mm
- Basic dynamic load rating: 450 kN
- Basic static load rating: 450 kN
FAG 24026-BE-XL-2VSR sealed spherical roller bearings
Nodes bearings have FAG 24026-BE-XL-2VSR bearings in stock, sealed spherical roller bearings, 24026-BE-XL-2VSR bearings dimensions: 130mm x 200mm x 69mm, Cr: 570000N, C0r: 860000N.
- Brand: FAG
- Inside Diameter: 130 mm
- Outside Diameter: 200 mm
- Width: 69 mm
- Basic dynamic load rating: 570 kN
- Basic static load rating: 570 kN
FAG 24028-BE-XL-2VSR sealed spherical roller bearings
Nodes bearings have FAG 24028-BE-XL-2VSR bearings in stock, sealed spherical roller bearings, 24028-BE-XL-2VSR bearings dimensions: 140mm x 210mm x 69mm, Cr: 590000N, C0r: 930000N.
- Brand: FAG
- Inside Diameter: 140 mm
- Outside Diameter: 210 mm
- Width: 69 mm
- Basic dynamic load rating: 590 kN
- Basic static load rating: 590 kN
