Nodes have a wide of deep groove ball bearings in stock. They are:
Brand: SKF, NSK, FAG, NTN
Single row deep groove ball bearings: 160, 60 618, 619, 62, 63, 64 series.
Double row deep groove ball bearings:42, 43 series.
Stainless steel deep groove ball bearings.
Deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions.
SKF 6205-2Z deep groove ball bearing
6205-2Z SKF bearing, single row deep groove ball bearing, Shield on both sides, Dimensions: 25mm x 52mm x 15mm, Limiting Speed:14000 r/min, Reference speed:28000r/min.
- Brand: SKF
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 15 mm
- Basic dynamic load rating: 14.8 kN
- Basic static load rating: 14.8 kN
SKF 6209-2RS1 single row deep groove ball bearings
SKF 6209-2RS1 bearing, single row deep groove ball bearing, Contact seal, NBR, on both sides, Dimensions: 45mm x 85mm x 19mm, Limiting Speeds:5000 r/min.
- Brand: SKF
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 19 mm
- Basic dynamic load rating: 35.1 kN
- Basic static load rating: 35.1 kN
NTN 6205LLU bearings | 25x52x15mm
NTN 6205LLU bearing, Deep groove ball bearings, Dimensions:25mm x 52mm x 15mm, Dynamic Load Rating: 14.00kN, Static Load Rating: 7.85kN
- Brand: NTN
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 15 mm
- Basic dynamic load rating: 14 kN
- Basic static load rating: 14 kN
NTN 6204LLU bearings | 20x47x14mm
NTN 6204LLU bearing, Deep groove ball bearings, Dimensions:20mm x 47mm x 14mm, Dynamic Load Rating: 12.80kN, Static Load Rating: 6.65kN
- Brand: NTN
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 14 mm
- Basic dynamic load rating: 12.8 kN
- Basic static load rating: 12.8 kN
NTN 6202LLU bearings | 15x35x11mm
NTN 6202LLU bearing, Deep groove ball bearings, Dimensions:15mm x 35mm x 11mm, Dynamic Load Rating: 7.75kN, Static Load Rating: 3.60kN
- Brand: NTN
- Inside Diameter: 15 mm
- Outside Diameter: 35 mm
- Width: 11 mm
- Basic dynamic load rating: 7.75 kN
- Basic static load rating: 7.75 kN
NTN 6203LLU bearings | 17x40x12mm
NTN 6203LLU bearing, Deep groove ball bearings, Dimensions:17mm x 40mm x 12mm, Dynamic Load Rating: 9.60kN, Static Load Rating: 4.60kN
- Brand: NTN
- Inside Diameter: 17 mm
- Outside Diameter: 40 mm
- Width: 12 mm
- Basic dynamic load rating: 9.6 kN
- Basic static load rating: 9.6 kN
NTN 6200LLU bearings | 10x30x9mm
NTN 6200LLU bearing, Deep groove ball bearings, Dimensions:10mm x 30mm x 9mm, Dynamic Load Rating: 5.10kN, Static Load Rating: 2.39kN
- Brand: NTN
- Inside Diameter: 10 mm
- Outside Diameter: 30 mm
- Width: 9 mm
- Basic dynamic load rating: 5.1 kN
- Basic static load rating: 5.1 kN
NTN 6200ZZC3 bearings | 10x30x9mm
NTN 6200ZZC3 bearing, Deep groove ball bearings, Dimensions:10mm x 30mm x 9mm, Dynamic Load Rating: 5.10kN, Static Load Rating: 2.39kN
- Brand: NTN
- Inside Diameter: 10 mm
- Outside Diameter: 30 mm
- Width: 9 mm
- Basic dynamic load rating: 5.1 kN
- Basic static load rating: 5.1 kN
NTN 6205ZZ bearings | 25x52x15mm
NTN 6205ZZ bearing, Deep groove ball bearings, Dimensions:25mm x 52mm x 15mm, Dynamic Load Rating: 14.00kN, Static Load Rating: 7.85kN
- Brand: NTN
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 15 mm
- Basic dynamic load rating: 14 kN
- Basic static load rating: 14 kN
NTN 6305ZZC3 bearings | 25x62x17mm
NTN 6305ZZC3 bearing, Deep groove ball bearings, Dimensions:25mm x 62mm x 17mm, Dynamic Load Rating: 21.20kN, Static Load Rating: 10.90kN
- Brand: NTN
- Inside Diameter: 25 mm
- Outside Diameter: 62 mm
- Width: 17 mm
- Basic dynamic load rating: 21.2 kN
- Basic static load rating: 21.2 kN
NTN 6207ZZC3 bearings | 35x72x17mm
NTN 6207ZZC3 bearing, Deep groove ball bearings, Dimensions:35mm x 72mm x 17mm, Dynamic Load Rating: 25.70kN, Static Load Rating: 15.30kN
- Brand: NTN
- Inside Diameter: 35 mm
- Outside Diameter: 72 mm
- Width: 17 mm
- Basic dynamic load rating: 25.7 kN
- Basic static load rating: 25.7 kN
NTN 6206ZZ bearings | 30x62x16mm
NTN 6206ZZ bearing, Deep groove ball bearings, Dimensions:30mm x 62mm x 16mm, Dynamic Load Rating: 19.50kN, Static Load Rating: 11.30kN
- Brand: NTN
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 16 mm
- Basic dynamic load rating: 19.5 kN
- Basic static load rating: 19.5 kN
SKF 6002-2Z single row deep groove ball bearings
SKF 6002-2Z bearing, single row deep groove ball bearing, Shield on both sides, Dimensions: 15mm x 32mm x 9mm, Limiting Speeds:26000 r/min.
- Brand: SKF
- Inside Diameter: 15 mm
- Outside Diameter: 32 mm
- Width: 9 mm
- Basic dynamic load rating: 5.8 kN
- Basic static load rating: 5.8 kN
SKF 6308-2Z single row deep groove ball bearings
SKF 6308-2Z bearing, single row deep groove ball bearing, Shield on both sides, Dimensions: 40mm x 90mm x 23mm, Limiting Speeds:8500 r/min.
- Brand: SKF
- Inside Diameter: 40 mm
- Outside Diameter: 90 mm
- Width: 23 mm
- Basic dynamic load rating: 42.3 kN
- Basic static load rating: 42.3 kN
SKF 6207-2RS1 single row deep groove ball bearings
SKF 6207-2RS1 bearing, single row deep groove ball bearing, Contact seal, NBR, on both sides, Dimensions: 35mm x 72mm x 17mm, Limiting Speeds:6300 r/min.
- Brand: SKF
- Inside Diameter: 35 mm
- Outside Diameter: 72 mm
- Width: 17 mm
- Basic dynamic load rating: 27 kN
- Basic static load rating: 27 kN
SKF 6201-2Z single row deep groove ball bearings
SKF 6201-2Z bearing, single row deep groove ball bearing, Shield on both sides, Dimensions: 12mm x 32mm x 10mm, Limiting Speeds:26000 r/min.
- Brand: SKF
- Inside Diameter: 12 mm
- Outside Diameter: 32 mm
- Width: 10 mm
- Basic dynamic load rating: 7.2 kN
- Basic static load rating: 7.2 kN
SKF 4205 ATN9 deep groove ball bearings
SKF 4205 ATN9 bearing, double row deep groove ball bearing, Dimensions: 25mm x 52mm x 18mm, Limiting Speeds:11000 r/min.
- Brand: SKF
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 18 mm
- Basic dynamic load rating: 19 kN
- Basic static load rating: 19 kN
SKF 608-2Z single row deep groove ball bearings
SKF 608-2Z bearing, single row deep groove ball bearing, Shield on both sides, Dimensions: 8mm x 22mm x 7mm, Limiting Speeds:38000 r/min.
- Brand: SKF
- Inside Diameter: 8 mm
- Outside Diameter: 22 mm
- Width: 7 mm
- Basic dynamic load rating: 3.4 kN
- Basic static load rating: 3.4 kN
SKF 6204-2RSH deep groove ball bearing
6204-2RSH SKF bearing, single row deep groove ball bearing, Contact seal on both sides, Dimensions: 20mm x 47mm x 14mm, Limiting Speed:10000 r/min.
- Brand: SKF
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 14 mm
- Basic dynamic load rating: 13.5 kN
- Basic static load rating: 13.5 kN
SKF 6203-2ZC3 deep groove ball bearing
6203-2ZC3 SKF bearing, single row deep groove ball bearing, Shield on both sides, C3 internal clearance, Dimensions: 17mm x 40mm x 12mm, Limiting Speed:19000r/min, Reference speed:38000r/min.
- Brand: SKF
- Inside Diameter: 17 mm
- Outside Diameter: 40 mm
- Width: 12 mm
- Basic dynamic load rating: 10 kN
- Basic static load rating: 10 kN
SKF 6206-2Z deep groove ball bearing
6206-2Z SKF bearing, single row deep groove ball bearing, Shield on both sides, Dimensions: 30mm x 62mm x 16mm, Limiting Speed:12000 r/min, Reference speed:24000r/min.
- Brand: SKF
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 16 mm
- Basic dynamic load rating: 20.3 kN
- Basic static load rating: 20.3 kN
NSK 6204VV deep groove ball bearing with Two Non-Contact Sea
NSK 6204VV bearing, single row deep groove ball bearing VV: With Two Non-Contact Sealed, Dimensions: 20mm x 47mm x 14mm, Limiting Speeds:15000.
- Brand: NSK
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 14 mm
- Basic dynamic load rating: 12.8 kN
- Basic static load rating: 12.8 kN
NSK 6205DDU deep groove ball bearing with two contact sealed
NSK 6205DDU bearing, single row deep groove ball bearing With Two Contact Sealed, Dimensions: 25mm x 52mm x 15mm, Limiting Speeds:9000.
- Brand: NSK
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 15 mm
- Basic dynamic load rating: 14 kN
- Basic static load rating: 14 kN
NSK 6209DDU Deep groove ball bearings
6209DDU NSK bearing, in stock, single row deep groove ball bearing, DDU: With Two Contact Sealed, Dimensions: 45mm x 85mm x 19mm, Limiting Speeds:5300.
- Brand: NSK
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 19 mm
- Basic dynamic load rating: 31.5 kN
- Basic static load rating: 31.5 kN
NSK 6305ZZ Deep groove ball bearings
NSK 6305ZZ bearing, single row deep groove ball bearing, ZZ: With Two Shielded, Dimensions: 25mm x 62mm x 17mm, Limiting Speeds:11000.
- Brand: NSK
- Inside Diameter: 25 mm
- Outside Diameter: 62 mm
- Width: 17 mm
- Basic dynamic load rating: 20.6 kN
- Basic static load rating: 20.6 kN

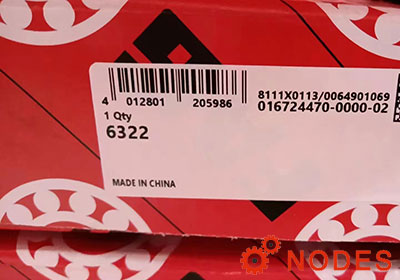

FAG 6322 bearings
Nodes bearings have FAG 6322 bearings in stock, single row deep groove ball bearings, 6322 bearings dimensions: 110mm x 240mm x 50mm, Cr: 201000N, C0r: 165000N.
- Brand: FAG
- Inside Diameter: 110 mm
- Outside Diameter: 240 mm
- Width: 50 mm
- Basic dynamic load rating: 201 kN
- Basic static load rating: 201 kN

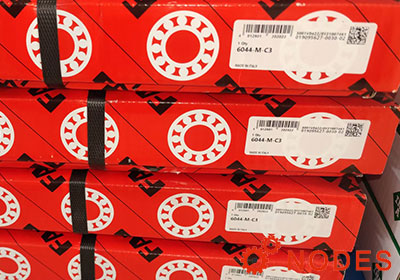

FAG 6044-M bearings
Nodes bearings have FAG 6044-M bearings in stock, single row deep groove ball bearings, 6044-M bearings dimensions: 220mm x 340mm x 56mm, Cr: 247000N, C0r: 290000N.
- Brand: FAG
- Inside Diameter: 220 mm
- Outside Diameter: 340 mm
- Width: 56 mm
- Basic dynamic load rating: 247 kN
- Basic static load rating: 247 kN
FAG 6010-2RSR bearings
Nodes bearings have FAG 6010-2RSR bearings in stock, single row deep groove ball bearings with lip seals on both sides, 6010-2RSR bearings dimensions: 50mm x 80mm x 16mm, Cr: 22000N, C0r: 15800N.
- Brand: FAG
- Inside Diameter: 50 mm
- Outside Diameter: 80 mm
- Width: 16 mm
- Basic dynamic load rating: 22 kN
- Basic static load rating: 22 kN
FAG 6324 bearings
Nodes bearings have FAG 6324 bearings in stock, single row deep groove ball bearings, 6324 bearings dimensions: 120mm x 260mm x 55mm, Cr: 225000N, C0r: 195000N.
- Brand: FAG
- Inside Diameter: 120 mm
- Outside Diameter: 260 mm
- Width: 55 mm
- Basic dynamic load rating: 225 kN
- Basic static load rating: 225 kN

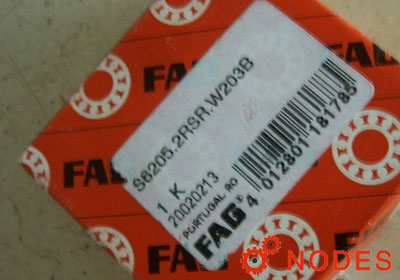

S6205-2RSR-W203B FAG stainless steel bearings
S6205-2RSR-W203B FAG stainless steel bearings, in stock, Contact seal on both sides, S6205-2RSR-W203B dimensions: 25x52x15mm.
- Brand: FAG
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 15 mm
- Basic dynamic load rating: 11.9 kN
- Basic static load rating: 11.9 kN
FAG 16004 bearings
Nodes bearings have FAG 16004 bearings in stock, single row deep groove ball bearings, 16004 bearings dimensions: 20mm x 42mm x 8mm, Cr: 7400N, C0r: 4100N.
- Brand: FAG
- Inside Diameter: 20 mm
- Outside Diameter: 42 mm
- Width: 8 mm
- Basic dynamic load rating: 7.4 kN
- Basic static load rating: 7.4 kN

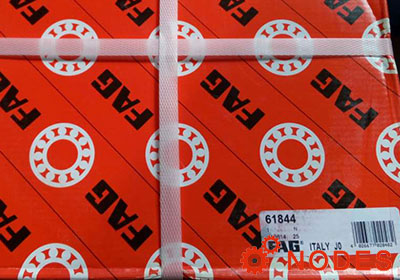

FAG 61844 bearings
Nodes bearings have FAG 61844 bearings in stock, single row deep groove ball bearings, 61844 bearings dimensions: 220mm x 270mm x 24mm, Cr: 78000N, C0r: 97000N.
- Brand: FAG
- Inside Diameter: 220 mm
- Outside Diameter: 270 mm
- Width: 24 mm
- Basic dynamic load rating: 78 kN
- Basic static load rating: 78 kN
NSK 6936 Deep groove ball bearings
6936 NSK bearing, in stock, single row deep groove ball bearing, Dimensions: 180mm x 250mm x 33mm, Limiting Speeds:2200.
- Brand: NSK
- Inside Diameter: 180 mm
- Outside Diameter: 250 mm
- Width: 33 mm
- Basic dynamic load rating: 119 kN
- Basic static load rating: 119 kN
NSK 6856M Deep groove ball bearings
NSK 6856m bearing, single row deep groove ball bearing, Dimensions: 280mm x 350mm x 33mm, Limiting Speeds:1500.
- Brand: NSK
- Inside Diameter: 280 mm
- Outside Diameter: 350 mm
- Width: 33 mm
- Basic dynamic load rating: 133 kN
- Basic static load rating: 133 kN
NSK 6309ZZ Deep groove ball bearings
NSK 6309ZZ bearing, single row deep groove ball bearing, ZZ: With Two Shielded, Dimensions: 45mm x 100mm x 25mm, Limiting Speeds:6700.
- Brand: NSK
- Inside Diameter: 45 mm
- Outside Diameter: 100 mm
- Width: 25 mm
- Basic dynamic load rating: 53 kN
- Basic static load rating: 53 kN

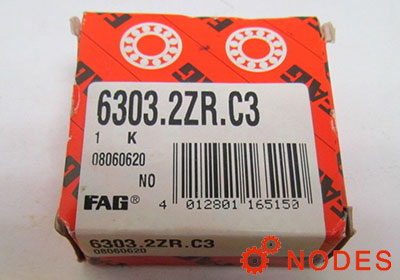

FAG 6303-2Z Deep groove ball bearing
FAG 6303-2Z Deep groove ball bearing, In stock, Dimensions: 17 x 47 x 14 mm, Basic dynamic load rating: 14400N, Static load rating: 6500N, Limiting speed: 18900r/min.
- Brand: FAG
- Inside Diameter: 17 mm
- Outside Diameter: 47 mm
- Width: 14 mm
- Basic dynamic load rating: 14400 kN
- Basic static load rating: 14400 kN
FAG 6304-2Z Deep groove ball bearing
FAG 6304-2Z Deep groove ball bearing, In stock, Dimensions: 20 x 52 x 15 mm, Basic dynamic load rating: 16900N, Static load rating: 7900N, Limiting speed: 16800r/min.
- Brand: FAG
- Inside Diameter: 20 mm
- Outside Diameter: 52 mm
- Width: 15 mm
- Basic dynamic load rating: 16900 kN
- Basic static load rating: 16900 kN

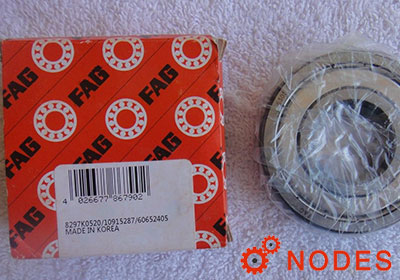

FAG 6305-2Z Deep groove ball bearing
FAG 6305-2Z Deep groove ball bearing, In stock, Dimensions: 25 x 62 x 17 mm, Basic dynamic load rating: 23800N, Static load rating: 11500N, Limiting speed: 13700r/min.
- Brand: FAG
- Inside Diameter: 25 mm
- Outside Diameter: 62 mm
- Width: 17 mm
- Basic dynamic load rating: 23800 kN
- Basic static load rating: 23800 kN
