NSK bearing size chart give you the capability to select the correct NSK bearings that meet the needs of your application and equipment design. You can find the NSK bearings you need by designation or dimensions.
NSK 22220CAME4 Spherical roller bearings
NSK 22220CAME4 bearing, spherical roller bearing with Cylindrical Bore, Dimensions: 100mm x 180mm x 46.0mm, Limiting Speeds:2800.
- Brand: NSK
- Dimension: 100mm x 180mm x 46.0mm
- Basic dynamic load rating: 455 kN
- Basic static load rating: 455 kN

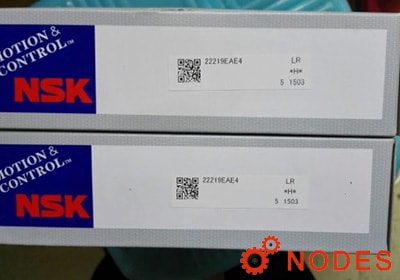

NSK 22219EAE4 Spherical roller bearings
NSK 22219EAE4 bearing, spherical roller bearing with Cylindrical Bore, Dimensions: 95mm x 170mm x 43.0mm, Limiting Speeds:3000.
- Brand: NSK
- Dimension: 95mm x 170mm x 43.0mm
- Basic dynamic load rating: 415 kN
- Basic static load rating: 415 kN

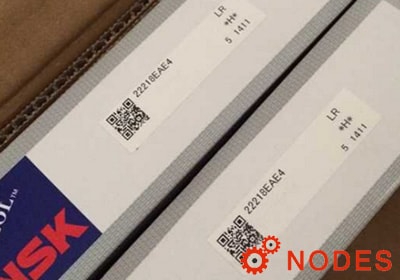

NSK 22218EAE4 Spherical roller bearings
NSK 22218EAE4 bearing, spherical roller bearing with Cylindrical Bore, Dimensions: 90mm x 160mm x 40.0mm, Limiting Speeds:3200.
- Brand: NSK
- Dimension: 90mm x 160mm x 40.0mm
- Basic dynamic load rating: 360 kN
- Basic static load rating: 360 kN
NSK 22217EAE4 Spherical roller bearings
NSK 22217EAE4 bearing, spherical roller bearing with Cylindrical Bore, Dimensions: 85mm x 150mm x 36.0mm, Limiting Speeds:3400.
- Brand: NSK
- Dimension: 85mm x 150mm x 36.0mm
- Basic dynamic load rating: 310 kN
- Basic static load rating: 310 kN
NSK 22215EAE4 Spherical roller bearings
NSK 22215EAE4 bearing, spherical roller bearing with Cylindrical Bore, Dimensions: 75mm x 130mm x 31.0mm, Limiting Speeds:4000.
- Brand: NSK
- Dimension: 75mm x 130mm x 31.0mm
- Basic dynamic load rating: 238 kN
- Basic static load rating: 238 kN

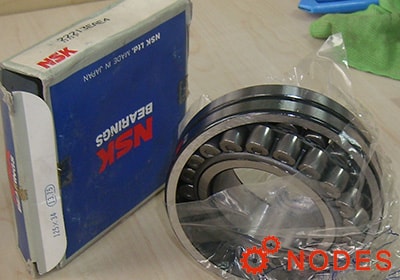

NSK 22213EAE4 Spherical roller bearings
NSK 22213EAE4 bearing, spherical roller bearing with Cylindrical Bore, Dimensions: 65mm x 120mm x 31.0mm, Limiting Speeds:4300.
- Brand: NSK
- Dimension: 65mm x 120mm x 31.0mm
- Basic dynamic load rating: 221 kN
- Basic static load rating: 221 kN
NSK 22212EAE4C3 Spherical roller bearings
NSK 22212EAE4C3 bearing, spherical roller bearing with Cylindrical Bore, Dimensions: 60mm x 110mm x 28.0mm, Limiting Speeds:4800.
- Brand: NSK
- Dimension: 60mm x 110mm x 28.0mm
- Basic dynamic load rating: 178 kN
- Basic static load rating: 178 kN
NSK 22212EAE4 Spherical roller bearings
NSK 22212EAE4 bearing, spherical roller bearing with Cylindrical Bore, Dimensions: 60mm x 110mm x 28.0mm, Limiting Speeds:4800.
- Brand: NSK
- Dimension: 60mm x 110mm x 28.0mm
- Basic dynamic load rating: 178 kN
- Basic static load rating: 178 kN
NSK 22205CE4 Spherical roller bearings
NSK 22205CE4 bearing, spherical roller bearing with Cylindrical Bore, Dimensions: 25mm x 52mm x 18.0mm, Limiting Speeds:7100.
- Brand: NSK
- Dimension: 25mm x 52mm x 18.0mm
- Basic dynamic load rating: 37.5 kN
- Basic static load rating: 37.5 kN
NSK 21318EAE4 Spherical roller bearings
NSK 21318EAE4 bearing, spherical roller bearing with Cylindrical Bore, Dimensions: 90mm x 190mm x 43.0mm, Limiting Speeds:2800.
- Brand: NSK
- Dimension: 90mm x 190mm x 43.0mm
- Basic dynamic load rating: 415 kN
- Basic static load rating: 415 kN
NSK 21315EAE4 Spherical roller bearings
NSK 21315EAE4 bearing, spherical roller bearing with Cylindrical Bore, Dimensions: 75mm x 160mm x 37.0mm, Limiting Speeds:3200.
- Brand: NSK
- Dimension: 75mm x 160mm x 37.0mm
- Basic dynamic load rating: 310 kN
- Basic static load rating: 310 kN
NSK 23220CKE4 Spherical roller bearings
NSK 23220CKE4 bearing, spherical roller bearing with Tapered Bore, Dimensions: 100mm x 180mm x 60.3mm, Limiting Speeds:1600.
- Brand: NSK
- Dimension: 100mm x 180mm x 60.3mm
- Basic dynamic load rating: 420 kN
- Basic static load rating: 420 kN
NSK 22328CAMKE4C3 Spherical roller bearings
NSK 22328CAMKE4C3 bearing, spherical roller bearing with Tapered Bore, Dimensions: 140mm x 300mm x 102.0mm, Limiting Speeds:1200.
- Brand: NSK
- Dimension: 140mm x 300mm x 102.0mm
- Basic dynamic load rating: 1160 kN
- Basic static load rating: 1160 kN
NSK 22224EAKE4 Spherical roller bearings
NSK 22224EAKE4 bearing, spherical roller bearing with Tapered Bore, Dimensions: 120mm x 215mm x 58.0mm, Limiting Speeds:2400.
- Brand: NSK
- Dimension: 120mm x 215mm x 58.0mm
- Basic dynamic load rating: 685 kN
- Basic static load rating: 685 kN
NSK 21310EAKE4 Spherical roller bearings
NSK 21310EAKE4 bearing, spherical roller bearing with Tapered Bore, Dimensions: 50mm x 110mm x 27.0mm, Limiting Speeds:4500.
- Brand: NSK
- Dimension: 50mm x 110mm x 27.0mm
- Basic dynamic load rating: 178 kN
- Basic static load rating: 178 kN
NSK 6319C3 Deep groove ball bearings
NSK 6319C3 bearing, single row deep groove ball bearing, Dimensions: 95mm x 200mm x 45mm, Limiting Speeds:3000.
- Brand: NSK
- Dimension: 95mm x 200mm x 45mm
- Basic dynamic load rating: 153 kN
- Basic static load rating: 153 kN
NSK 6318 Deep groove ball bearings
NSK 6318 bearing, single row deep groove ball bearing, Dimensions: 90mm x 190mm x 43mm, Limiting Speeds:3600.
- Brand: NSK
- Dimension: 90mm x 190mm x 43mm
- Basic dynamic load rating: 143 kN
- Basic static load rating: 143 kN
NSK 6211C3 Deep groove ball bearings
NSK 6211C3 bearing, single row deep groove ball bearing, Dimensions: 55mm x 100mm x 21mm, Limiting Speeds:6300.
- Brand: NSK
- Dimension: 55mm x 100mm x 21mm
- Basic dynamic load rating: 43.5 kN
- Basic static load rating: 43.5 kN
NSK 6311 Deep groove ball bearings
NSK 6311 bearing, single row deep groove ball bearing, Dimensions: 55mm x 120mm x 29mm, Limiting Speeds:5600.
- Brand: NSK
- Dimension: 55mm x 120mm x 29mm
- Basic dynamic load rating: 71.5 kN
- Basic static load rating: 71.5 kN
NSK 6226 Deep groove ball bearings
NSK 6226 bearing, single row deep groove ball bearing, Dimensions: 130mm x 230mm x 40mm, Limiting Speeds:2400.
- Brand: NSK
- Dimension: 130mm x 230mm x 40mm
- Basic dynamic load rating: 167 kN
- Basic static load rating: 167 kN
NSK 6222 Deep groove ball bearings
NSK 6222 bearing, single row deep groove ball bearing, Dimensions: 110mm x 200mm x 38mm, Limiting Speeds:2800.
- Brand: NSK
- Dimension: 110mm x 200mm x 38mm
- Basic dynamic load rating: 144 kN
- Basic static load rating: 144 kN
NSK 6220 Deep groove ball bearings
NSK 6220 bearing, single row deep groove ball bearing, Dimensions: 100mm x 180mm x 34mm, Limiting Speeds:3600.
- Brand: NSK
- Dimension: 100mm x 180mm x 34mm
- Basic dynamic load rating: 122 kN
- Basic static load rating: 122 kN
NSK 6218 Deep groove ball bearings
NSK 6218 bearing, single row deep groove ball bearing, Dimensions: 90mm x 160mm x 30mm, Limiting Speeds:4000.
- Brand: NSK
- Dimension: 90mm x 160mm x 30mm
- Basic dynamic load rating: 96 kN
- Basic static load rating: 96 kN
NSK 6017 Deep groove ball bearings
NSK 6017 bearing, single row deep groove ball bearing, Dimensions: 85mm x 130mm x 22mm, Limiting Speeds:5000.
- Brand: NSK
- Dimension: 85mm x 130mm x 22mm
- Basic dynamic load rating: 49.5 kN
- Basic static load rating: 49.5 kN
NSK 6332C3 Deep groove ball bearings
NSK 6332C3 bearing, single row deep groove ball bearing, Dimensions: 160mm x 340mm x 68mm, Limiting Speeds:1700.
- Brand: NSK
- Dimension: 160mm x 340mm x 68mm
- Basic dynamic load rating: 278 kN
- Basic static load rating: 278 kN
NSK 6313VV Deep groove ball bearings
NSK 6313VV bearing, single row deep groove ball bearing, VV: With Two Non-Contact Sealed, Dimensions: 65mm x 140mm x 33mm, Limiting Speeds:4800.
- Brand: NSK
- Dimension: 65mm x 140mm x 33mm
- Basic dynamic load rating: 92.5 kN
- Basic static load rating: 92.5 kN
NSK 6324ZZS Deep groove ball bearings
NSK 6324ZZS bearing, single row deep groove ball bearing, ZZ: With Two ShieldedS, Dimensions: 120mm x 260mm x 55mm, Limiting Speeds:2200.
- Brand: NSK
- Dimension: 120mm x 260mm x 55mm
- Basic dynamic load rating: 207 kN
- Basic static load rating: 207 kN
NSK 6319DDUC3 Deep groove ball bearings
NSK 6319DDUC3 bearing, single row deep groove ball bearing, DDU: With Two Contact Sealed, Dimensions: 95mm x 200mm x 45mm, Limiting Speeds:2400.
- Brand: NSK
- Dimension: 95mm x 200mm x 45mm
- Basic dynamic load rating: 153 kN
- Basic static load rating: 153 kN
NSK 6310DDUC3 Deep groove ball bearings
NSK 6310DDUC3 bearing, single row deep groove ball bearing, DDU: With Two Contact Sealed, Dimensions: 50mm x 110mm x 27mm, Limiting Speeds:4300.
- Brand: NSK
- Dimension: 50mm x 110mm x 27mm
- Basic dynamic load rating: 62 kN
- Basic static load rating: 62 kN
NSK 6310DDU Deep groove ball bearings
NSK 6310DDU bearing, single row deep groove ball bearing, DDU: With Two Contact Sealed, Dimensions: 50mm x 110mm x 27mm, Limiting Speeds:4300.
- Brand: NSK
- Dimension: 50mm x 110mm x 27mm
- Basic dynamic load rating: 62 kN
- Basic static load rating: 62 kN
NSK 6308DDU Deep groove ball bearings
NSK 6308DDU bearing, single row deep groove ball bearing, DDU: With Two Contact Sealed, Dimensions: 40mm x 90mm x 23mm, Limiting Speeds:5300.
- Brand: NSK
- Dimension: 40mm x 90mm x 23mm
- Basic dynamic load rating: 40.5 kN
- Basic static load rating: 40.5 kN
NSK 6307DDU Deep groove ball bearings
NSK 6307DDU bearing, single row deep groove ball bearing, DDU: With Two Contact Sealed, Dimensions: 35mm x 80mm x 21mm, Limiting Speeds:6000.
- Brand: NSK
- Dimension: 35mm x 80mm x 21mm
- Basic dynamic load rating: 33.5 kN
- Basic static load rating: 33.5 kN
NSK 6306DDU Deep groove ball bearings
NSK 6306DDU bearing, single row deep groove ball bearing, DDU: With Two Contact Sealed, Dimensions: 30mm x 72mm x 19mm, Limiting Speeds:6700.
- Brand: NSK
- Dimension: 30mm x 72mm x 19mm
- Basic dynamic load rating: 26.7 kN
- Basic static load rating: 26.7 kN
NSK 6303DDU Deep groove ball bearings
NSK 6303DDU bearing, single row deep groove ball bearing, DDU: With Two Contact Sealed, Dimensions: 17mm x 47mm x 14mm, Limiting Speeds:11000.
- Brand: NSK
- Dimension: 17mm x 47mm x 14mm
- Basic dynamic load rating: 13.6 kN
- Basic static load rating: 13.6 kN
NSK 6211DDU Deep groove ball bearings
NSK 6211DDU bearing, single row deep groove ball bearing, DDU: With Two Contact Sealed, Dimensions: 55mm x 100mm x 21mm, Limiting Speeds:4300.
- Brand: NSK
- Dimension: 55mm x 100mm x 21mm
- Basic dynamic load rating: 43.5 kN
- Basic static load rating: 43.5 kN
NSK 6210DDUC3 Deep groove ball bearings
NSK 6210DDUC3 bearing, single row deep groove ball bearing, DDU: With Two Contact Sealed, Dimensions: 50mm x 90mm x 20mm, Limiting Speeds:4800.
- Brand: NSK
- Dimension: 50mm x 90mm x 20mm
- Basic dynamic load rating: 35 kN
- Basic static load rating: 35 kN
NSK 6208DDU Deep groove ball bearings
NSK 6208DDU bearing, single row deep groove ball bearing, DDU: With Two Contact Sealed, Dimensions: 40mm x 80mm x 18mm, Limiting Speeds:5600.
- Brand: NSK
- Dimension: 40mm x 80mm x 18mm
- Basic dynamic load rating: 29.1 kN
- Basic static load rating: 29.1 kN
NSK 6207DDU Deep groove ball bearings
NSK 6207DDU bearing, single row deep groove ball bearing, DDU: With Two Contact Sealed, Dimensions: 35mm x 72mm x 17mm, Limiting Speeds:6300.
- Brand: NSK
- Dimension: 35mm x 72mm x 17mm
- Basic dynamic load rating: 25.7 kN
- Basic static load rating: 25.7 kN
